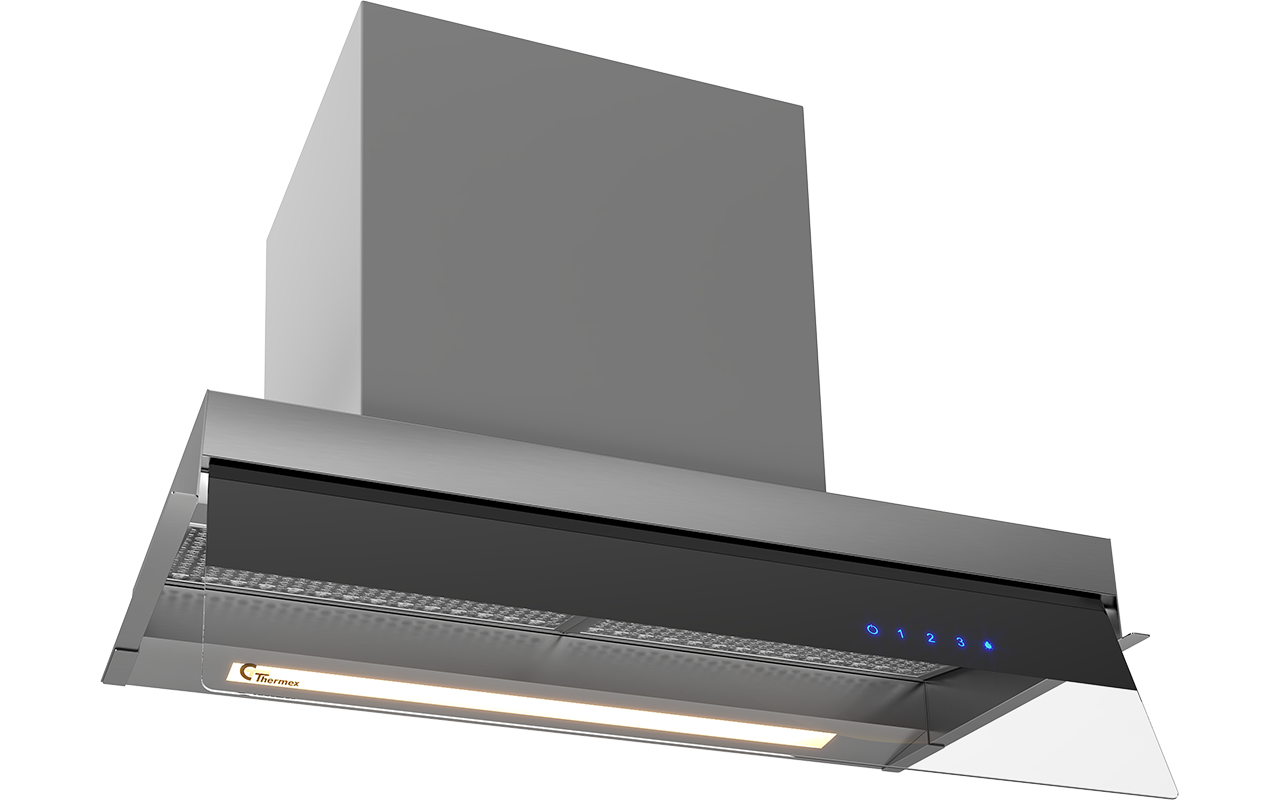

Integro 51 II Premium 60 cm

513.21.2068.2
Thermex Integro 51 II Premium 60 cm with motor is a minimalist built-in extractor hood which is hidden in the upper cabinet, the built-in controls make it easy to use the extractor. The simple assembly concept makes it possible to replace the existing hood without replacing the cabinet itself.
Width
Color
Please select variant!

Thermex Integro 51 II Premium 60 cm is an innovation that fits all standard 60 cm upper cupboards, it basically just replaces the bottom of the cupboard. You make use of the maximum collection surface and can also fold out the glass screen, with electronic control, if necessary. The edges of the upper cabinet are well protected by the folds of the hood. Thermex Integro is a slightly underrated solution that is very simple to install. The built-in motor can move up to 400 m3/h

  • Fits in all upper cabinets
  • Simple installation

Specifications

Minimum airflow [m3/h]
253
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
432
Maximum-Soundpower [dB(A)]
58
Control
Glass touch
Material
Stainless steel and glass
Voltage [V]
230
See all specifications

Specifications

Minimum airflow [m3/h]
253
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
432
Maximum-Soundpower [dB(A)]
58
Control
Glass touch
Material
Stainless steel and glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
348
Maximum height [mm]
358
Outlet dimension (mm)
Ø150
Packaging width(mm)
655
Packaging depth [mm]
440
Packaging height(mm)
370
Net weight [kg]
12
Weight
14

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
Yes
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

LE value [lux/W]
29.9
LE-class
A
EEI-class
A+
Energy consumption in off mode (Po) [W]
0.46
Lamp consumption [W]
6
Total consumption of light (WL) [W]
6
GFE-value
72
GFE-class
D
FDE-value
30.1
FDE-class
A
Motor Power [W]
45
Voltage [V]
230

Other specifications

EAN
5703347531071
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
Black
BodyColor
Stainless steel
Front panel material
Black glass
Material
Stainless steel and glass
SupplyCord (m)
1

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Productfiche

Teknisk info

Thermex Link

Exhaust fittings
