Adaptation of the chimney
Get the most out of your range
What do we need to know about special channel customization?

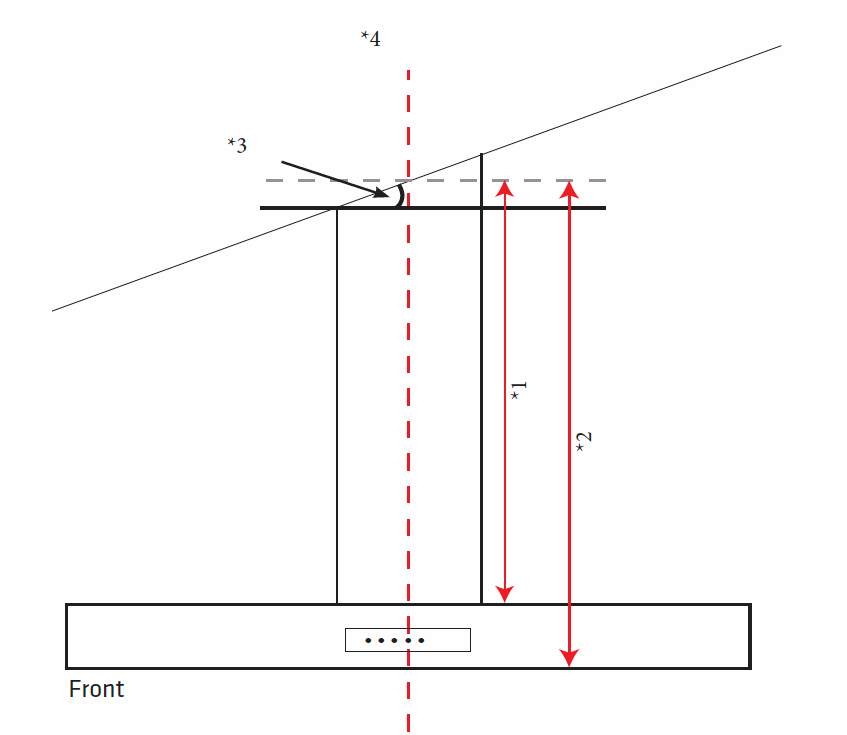

*1 : Duct height
*2 : Total height
*3 : Degrees
*4 : Center target
How to measure the angle

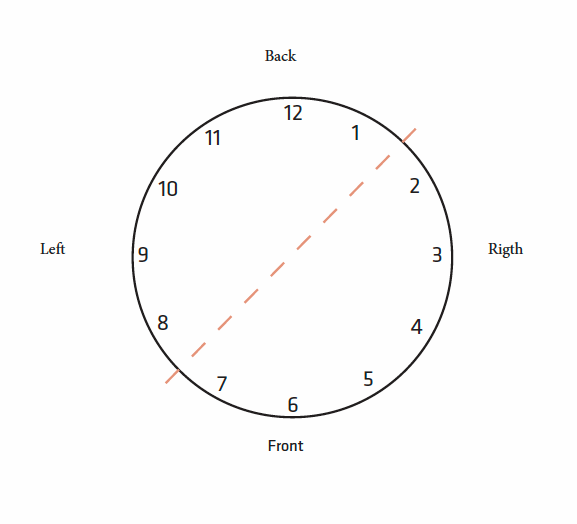

If the bevel is to be cut diagonally on the channel, the highest point on the channel should be noted under additional information. The highest point is described from the dial.
The red dashed line shows an example where the highest point is
at 1:30 a.m.
