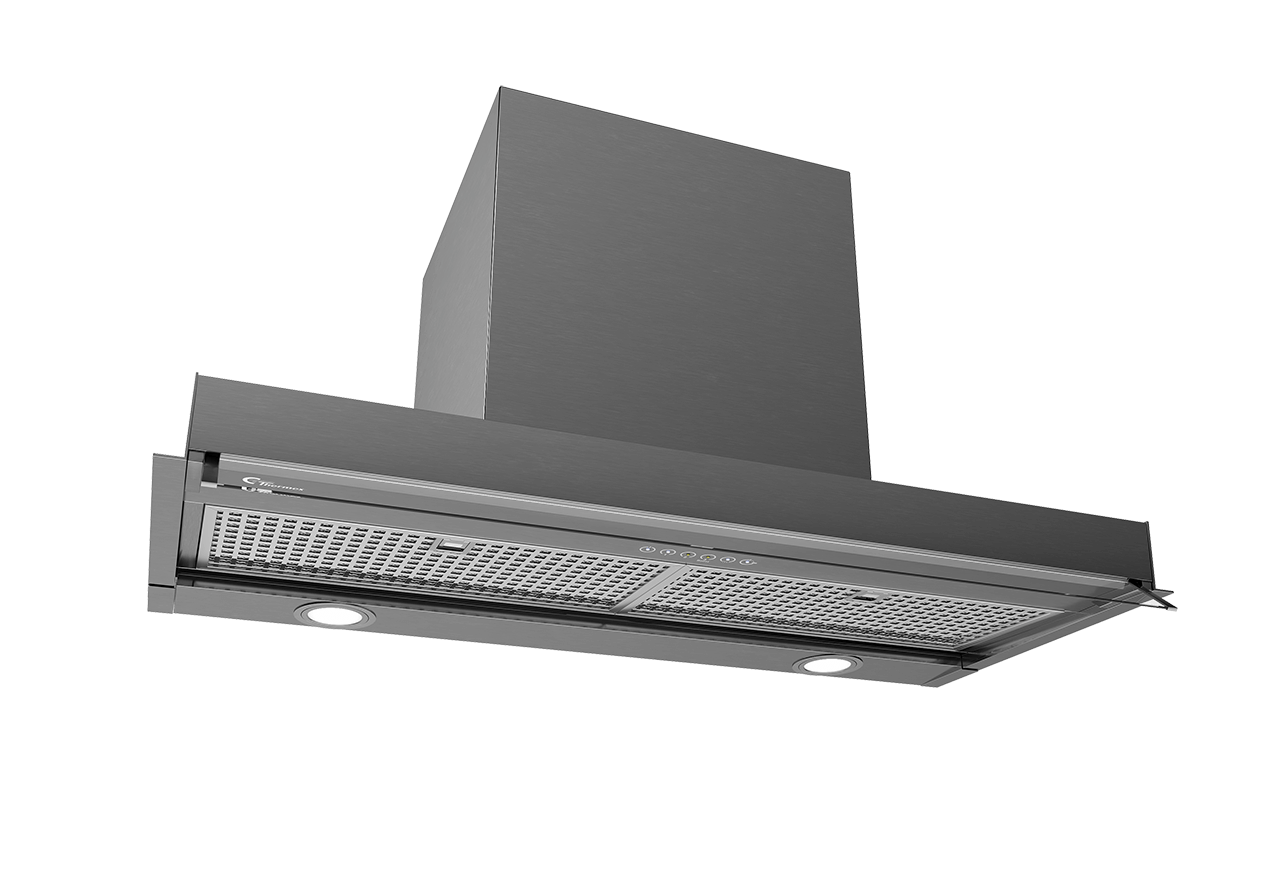

Integro 51 II 800 mm Stainless With motor

513.21.1088.2
Thermex integro 51 II 80 cm with motor is a minimalist built-in extractor hood which is hidden in the upper cupboard, the built-in control makes it easy to use the extractor. The simple assembly concept makes it possible to replace the existing extractor hood without replacing the upper cabinet.
Width
Please select variant!

Thermex Integro 51 II is an innovation that fits all standard 60, 80 or 90 cm upper cupboards, it basically just replaces the bottom of the cupboard. You make use of the maximum collection surface and can also fold out the glass screen if necessary. Integro 51 II is super efficient and has a boost function. The edges of the upper cabinet are well protected by the folds of the hood. Together with Thermex Integro, this is a slightly underrated solution that is very simple to install. The built-in motor can move up to 602 m3/h

  • Fits in all upper cabinets
  • Boost function
  • Simple installation

Specifications

Minimum airflow [m3/h]
278
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
602
Maximum-Soundpower [dB(A)]
69
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
70
Control
Soft touch
Material
Stainless steel and glass
Voltage [V]
230
See all specifications

Decoration filter

The decorative filter is an ordinary metal filter, but it is designed in such a way that the filter appears more aesthetically pleasing. It can be washed in a dishwasher, but it is recommended to wash it by hand.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Minimum airflow [m3/h]
278
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
602
Maximum-Soundpower [dB(A)]
69
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
70
Control
Soft touch
Material
Stainless steel and glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
800
Maximum depth [mm]
348
Maximum height [mm]
370
Outlet dimension (mm)
Ø150
Packaging width(mm)
415
Packaging depth [mm]
855
Packaging height(mm)
370
Net weight [kg]
12
Weight
14

Features

Control
Soft touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
79
LE value [lux/W]
24.3
LE-class
B
EEI-value
54.6
EEI-class
A
Energy consumption in off mode (Po) [W]
0.46
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
67.1
GFE-class
D
FDE-value
28.3
FDE-class
A
Motor Power [W]
230
Voltage [V]
230

Other specifications

EAN
5703347531064
Type of grease filter
Metal filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel and glass
Material
Stainless steel and glass
