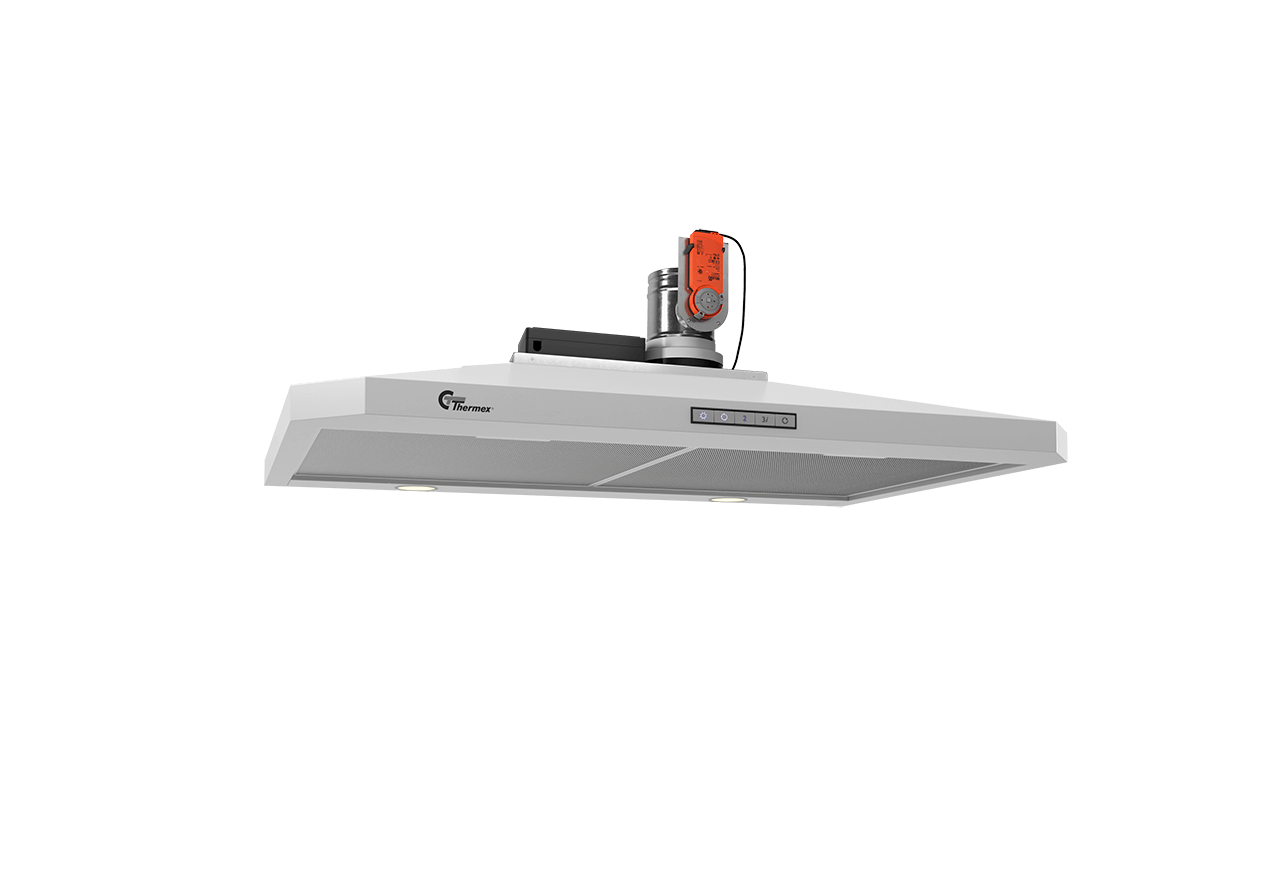

Central 787 wall 70 cm white, villa
527.41.7871.8

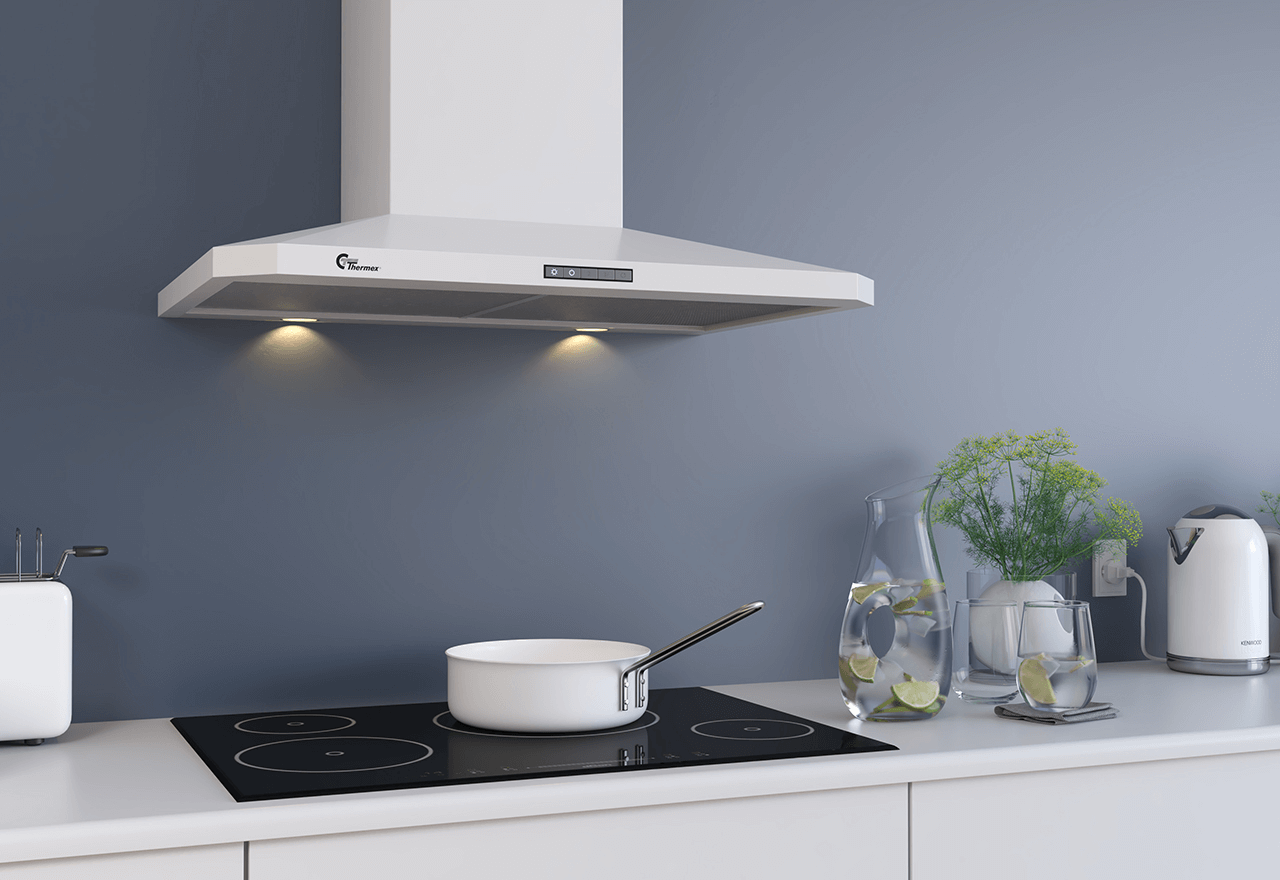

Central 787 villa 70 cm in white is a classic model in a pyramid-shaped design.
Width
Color hood
Motor type
Many people do not want an upper cabinet where the hob should stand, and if this is the case for you, then Decor 787 is a good choice. You can choose between the colors white, black and stainless steel, and you can choose between 3 different widths (60, 70 and 90 cm). Decor 787 is a neat, efficient and energy-saving extractor hood with its Thermex «All Possibilities» solution can be adapted to all homes regardless of exhaust and ventilation solution, it is also available in a free-hanging model in 60 and 90 cm width.
Specifications
Control
Soft touch
Material
White painted steel
Voltage [V]
230
Specifications
Control
Soft touch
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
700
Maximum depth [mm]
500
Maximum height [mm]
1165
Vent pipe width (mm)
285
Vent pipe max height (mm)
1065
Vent pipe min height (mm)
600
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
470
Packaging depth [mm]
680
Packaging height(mm)
630
Net weight [kg]
13
Weight
15
Features
Control
Soft touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
LE value [lux/W]
38
LE-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.3
Total consumption of light (WL) [W]
2.6
GFE-value
80.7
GFE-class
C
Power supply [V]
230
Voltage [V]
230
Other specifications
EAN
5703347529658
Type of grease filter
Aluminum filter
Number of filters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Centralventilation Villa
Front panel color
White
BodyColor
White
Material
White painted steel
