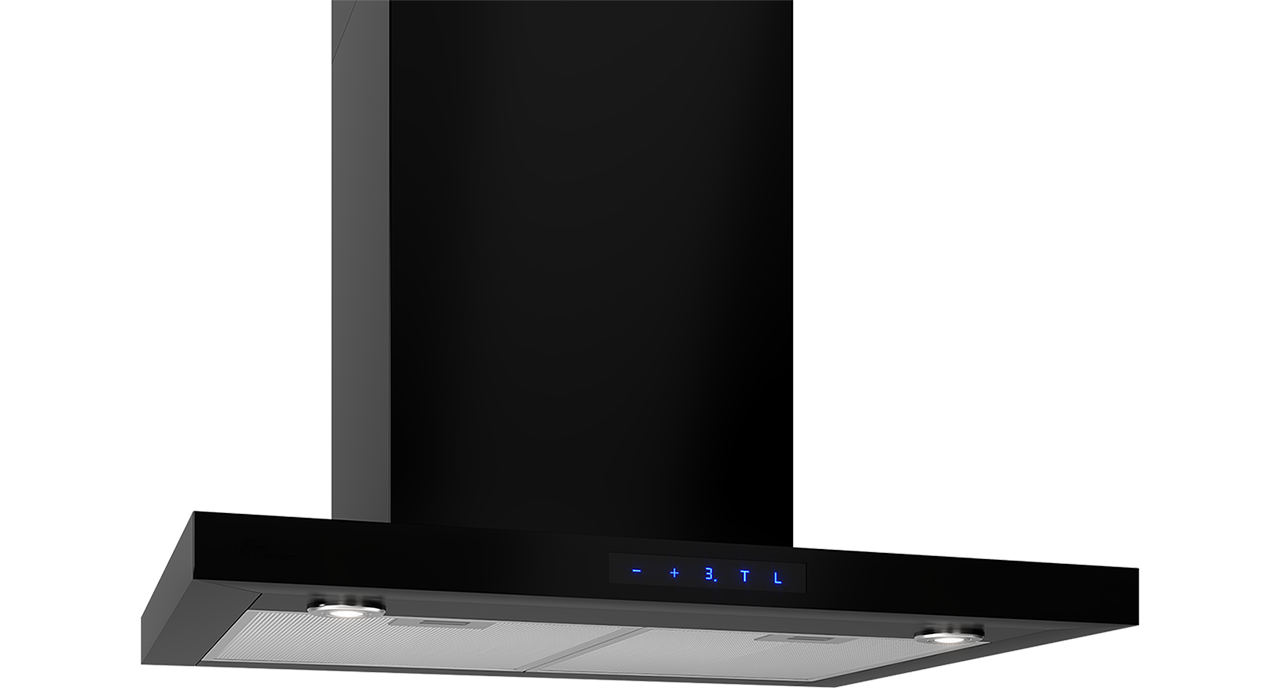

Harwich II wall 600 mm Black without motor
527.23.3062.0
Harwich II 60 cm in black without motor is a classic hood with a large suction surface, as well as efficient lighting, and is intended for connection to an external motor, central ventilation or heat recovery
Width
Color hood
Motor type
The Thermex Harwich II is an affordable wall-mounted model with a horizontal design. You get a lot of hood for the money when you choose the Harwich II, large collection surface, good extraction capacity and a stainless design. Elegant and discreet glass touch operation. Available in 4 different widths from 60 cm to 120 cm. It is also available in a free-hanging model of 90 cm width. Harwich has so-called decorative filters that look extra good. Thermex has several different external motors that suit your mounting situation and budget.
- Stylish design
- Elegant and discreet glass touch operation
- Possibility of balanced air exchange using the Trigger Link Module
Specifications
Control
Glass touch
Material
Black painted steel
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
500
Maximum height [mm]
990
Vent pipe width (mm)
325
Vent pipe max height (mm)
980
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
700
Packaging depth [mm]
570
Packaging height(mm)
475
Net weight [kg]
13.5
Weight
17
Features
Control
Glass touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Smarthome
No
Technical specifications
LE value [lux/W]
125
LE-class
A
Colour temperature [Kelvin]
4000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
3
GFE-value
65.5
GFE-class
D
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.45
Other specifications
EAN
5703347531293
Type of grease filter
Aluminum filter
Number of filters
2
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
External motor
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Black painted steel
