Design Line Central 8002 Villa - 60 cm - Black

540.23.1962.8
Thermex Design Line Central 8002 Villa is a wall-mounted cooker hood in black steel and glass. With adjustable LED lighting, app control, and easy cleaning, it is ideal for the modern kitchen.

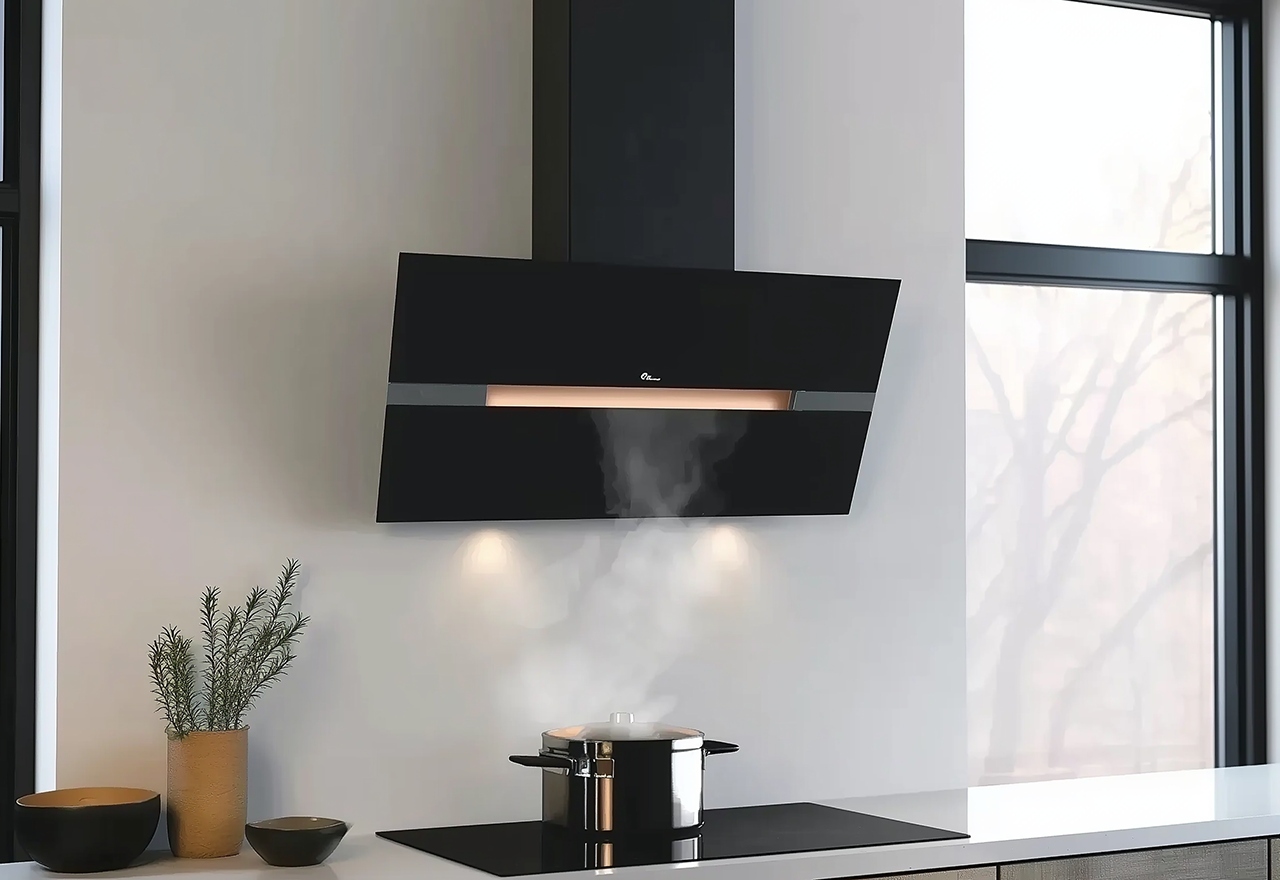

Thermex Design Line Central 8002 Villa is a modern and elegant wall-mounted cooker hood, ideal for the sleek kitchen. Made of black-painted steel with a black glass front, this 60 cm wide hood features a vertical and inclined design, saving space and adding a sophisticated touch. The two LED lights ensure pleasant, adjustable lighting, perfect for any kitchen style.

Features:
- Light control: The LED light can be dimmed and adjusted in the kelvin/white spectrum, ensuring the light always matches the kitchen’s ambiance and needs.
- Smart control: The cooker hood can be controlled via an app or voice control with Google Home for added convenience and user-friendliness.
- Integration: The cooker hood can be connected to the hob using Thermex TopLink (sold separately), providing an even more intuitive and unified kitchen experience.

Easy Cleaning
For simple maintenance, the hood’s filters can be washed in the dishwasher, and the hood itself can be kept clean by wiping the surfaces with a damp cloth.

The cooker hood is delivered with a Central Villa module.
The Central Villa module is a ventilation solution for cooker hoods without a motor, designed specifically for villas with a central ventilation system (System Villa). This unit allows the cooker hood to integrate directly with the home’s ventilation, controlling extraction from both kitchen and bathroom centrally via the hood.

Features:
- Specialized ventilation system: Designed for homes with a System Villa ventilation system, a central ventilation system without heat recovery that connects extraction from the kitchen and bathroom.
- Motor control and electronic damper: The module features a motorized damper that controls extraction between the kitchen and bathroom and regulates base ventilation, with the option to set ventilation at 5 different levels.
- Wireless bathroom control: Includes a wireless switch that allows forced extraction in the bathroom without affecting the kitchen, ideal for optimal ventilation control in the bathroom.
- Plug and Play installation: The Central Villa module is electrically connected to the cooker hood, ready for use as a plug and play solution.

Thermex Design Line Central 8002 Villa combines advanced technology and modern design, making it an ideal choice for kitchens prioritizing both functionality and aesthetics.

  • Smart control of the cooker hood via voice, app, and remote
  • The light can be adjusted in the kelvin/white spectrum for optimal lighting and ambiance in the kitchen
  • Electronically controlled damper with base ventilation setting
  • Motor control with base ventilation (5 adjustable levels)
  • Wireless switch for the bathroom, allowing forced ventilation in the bathroom without extraction in the kitchen

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
340
Maximum height [mm]
1330
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
700
Packaging depth [mm]
520
Packaging height(mm)
520
Net weight [kg]
19
Weight
21

Features

Control
Remote control
Boost funktion
Yes
Decor light
Yes
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
366
LE value [lux/W]
122
LE-class
A
EEI-class
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
Odour extraction test standard
Voltage [V]
230

Other specifications

EAN
5703347534058
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Carbon filter code
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Number of carbonfilters
Number of speeds ex (boost)
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Centralventilation Villa
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
2.2

Downloads

Here you will find all documents relevant to this product

Product info

Installation manual
