Design Line Central 8005 Timer - 60 cm - White

520.19.1361.7
Thermex Design Line Central 8005 Timer is a stylish, cabinet-integrated cooker hood in white-painted steel with a glass front. It offers adjustable LED lighting, app control, and easy maintenance, perfect for modern kitchens.

Thermex Design Line Central 8005 Timer is a stylish cabinet-integrated cooker hood that blends discreetly into any kitchen environment. Made of white-painted steel with a glass front, the hood offers a modern look with two decorative filters and two LED lights. It is designed for installation in a 60 cm upper cabinet.

Features:
- Light control: The LED light can be dimmed and adjusted in the kelvin/white spectrum, ensuring the light always matches the kitchen’s ambiance and needs.
- Smart control: The cooker hood can be controlled via an app or voice control with Google Home for added convenience and user-friendliness.
- Integration: The cooker hood can be connected to the hob using Thermex TopLink (sold separately), providing an even more intuitive and unified kitchen experience.

Easy Cleaning
For simple maintenance, the hood’s filters can be washed in the dishwasher, and the hood itself can be kept clean by wiping the surfaces with a damp cloth.

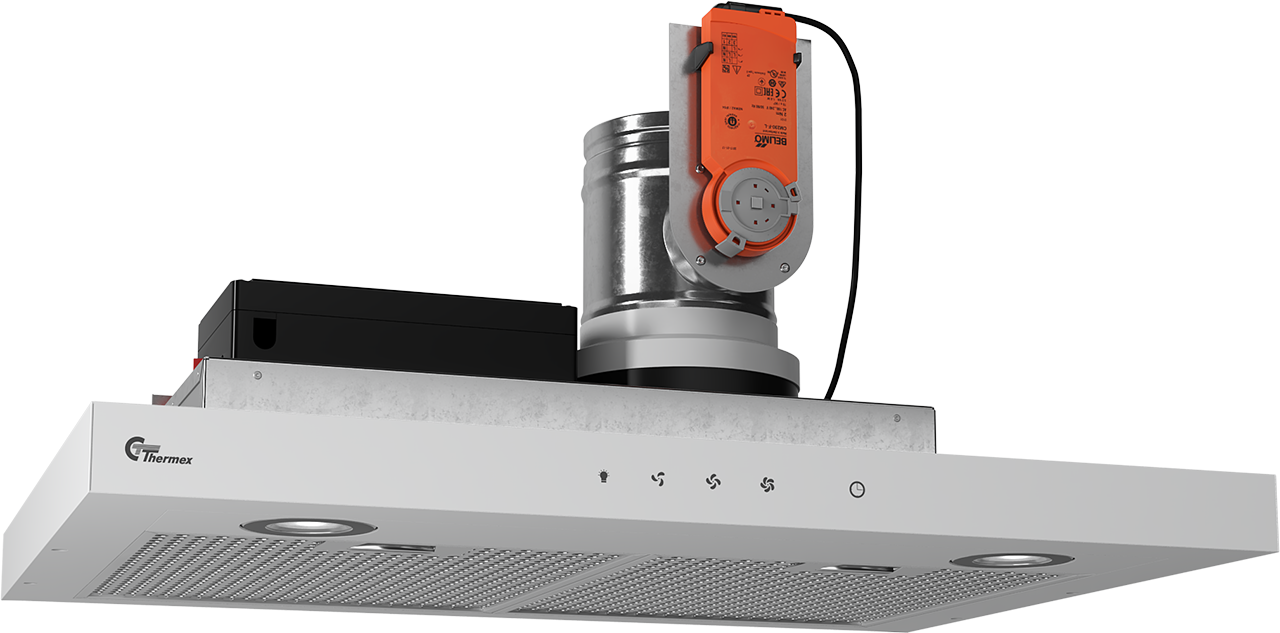

The cooker hood is supplied with a Central ventilation module.
The Thermex Central ventilation module is a complete solution for those who want to use a cooker hood without motor in a home with central or decentralized ventilation. This ventilation kit allows the cooker hood to be used in connection with ventilation systems without the need for additional installations.

Features:
- Electronically controlled damper: The kit is equipped with a Belimo damper motor, known for its exceptional reliability.
- Manual adjustment: Allows precise adjustment of the damper settings for both ground and forced ventilation.
- Timer setting: The damper can be timed to open at intervals of 15, 30, 45, and 60 minutes, ensuring precise control of ventilation.
- Plug and Play Installation: The Central Ventilation module is electrically connected to the cooker hood, ready for use as a plug and play solution.
- Switch/trigger function: The electronics include a switch/trigger function that allows a signal to be sent to the ventilation system if necessary.

Thermex Design Line Central 8005 Timer is an ideal combination of advanced technology and functional design, making it a perfect choice for modern kitchens.

  • Smart control of the cooker hood via voice or app control
  • The light can be adjusted in the kelvin/white spectrum for optimal lighting and ambiance in the kitchen
  • Timer setting of 15-60 minutes
  • Electronically controlled damper

Specifications

Control
Glass touch
Material
White painted steel and White glass
Voltage [V]
230

Projekteringsfane

Odour extraction test standard

Specifications

Control
Glass touch
Material
White painted steel and White glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
405
Maximum height [mm]
170
Outlet dimension (mm)
Ø125
Packaging width(mm)
680
Packaging depth [mm]
590
Packaging height(mm)
290
Net weight [kg]
5.5
Weight
7

Features

Control
Glass touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
348
LE value [lux/W]
217.5
LE-class
A
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
Odour extraction test standard
Voltage [V]
230

Other specifications

EAN
5703347533969
Type of grease filter
Decorative filter
Number of filters
2
Number of speeds ex (boost)
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Longer vent pipe available
Mounting
Cabinet substantiated
Motor type
Central ventilation
Front panel color
White
BodyColor
White
Front panel material
White glass
Material
White painted steel and White glass
SupplyCord (m)
2

Downloads

Here you will find all documents relevant to this product

Product info

Installation manual

Quick guide
