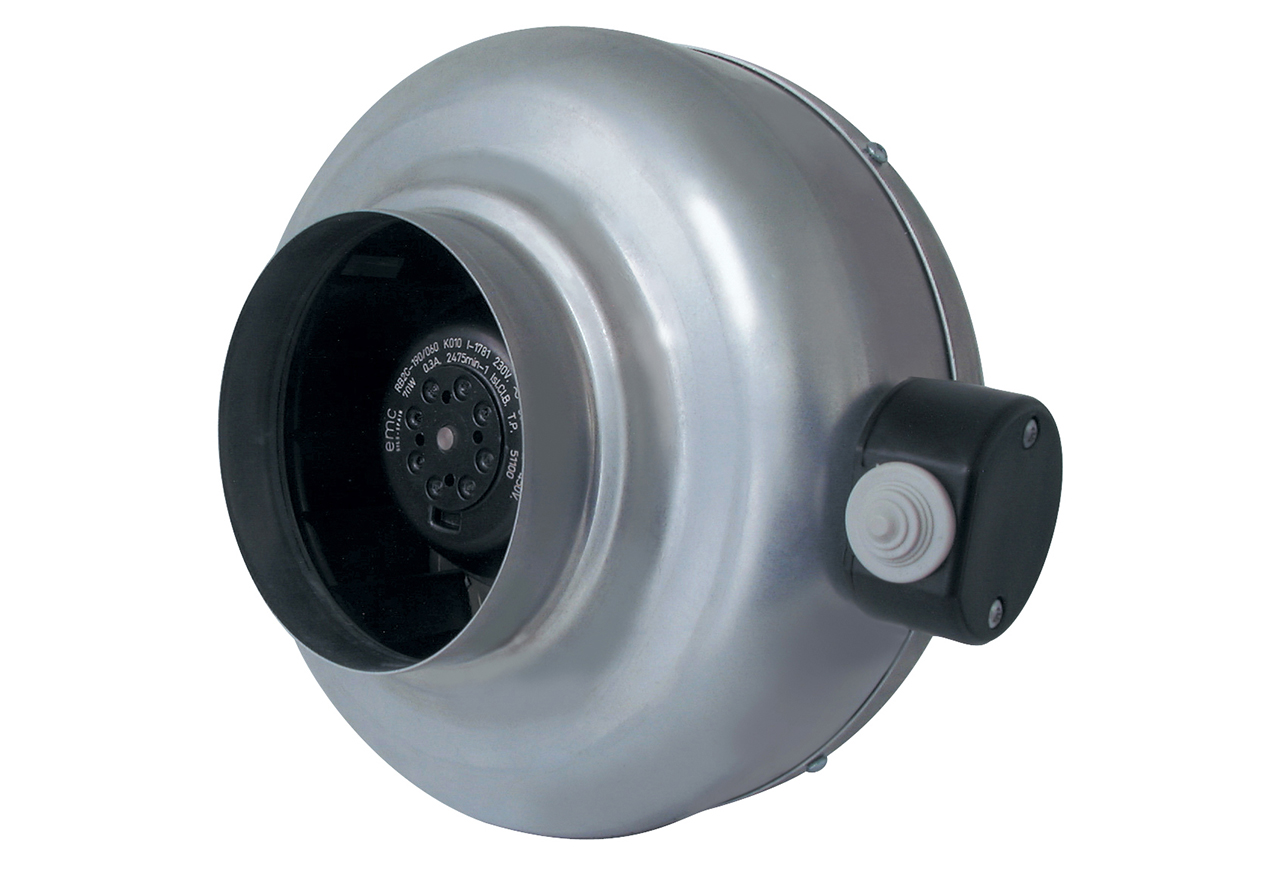

Rørvent 200 NK
225.34.2201.2
Size
Duct fan intended for installation on fixed pipes.; It is suitable for several types of extraction, but especially for extraction from toilets or bathrooms.
Specifications
Energy consumption [W]
147
Luftmængde ved 0 Pascal [m3/t]
970
Kapslingsklasse
IP44
Material
Stainless steel
Specifications
Energy consumption [W]
147
Luftmængde ved 0 Pascal [m3/t]
970
Kapslingsklasse
IP44
Material
Stainless steel
Weight and measurements
Maximum width [mm]
333
Maximum depth [mm]
223
Maximum height [mm]
333
Aftræksdimension (mm)
Ø200
Packaging width(mm)
440
Packaging depth [mm]
250
Packaging height(mm)
440
Net weight [kg]
5
Weight
5.75
Features
Timer funktion
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
147
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
970
Maximum sound pressure at 3 meters [dB(A)]
43
Maximum-Soundpower [dB(A)]
58
Other specifications
EAN
8413893787361
BodyColor
Stainless steel
Material
Stainless steel
Max air temperature (° C)
60
Fan speed [rpm]
2720
