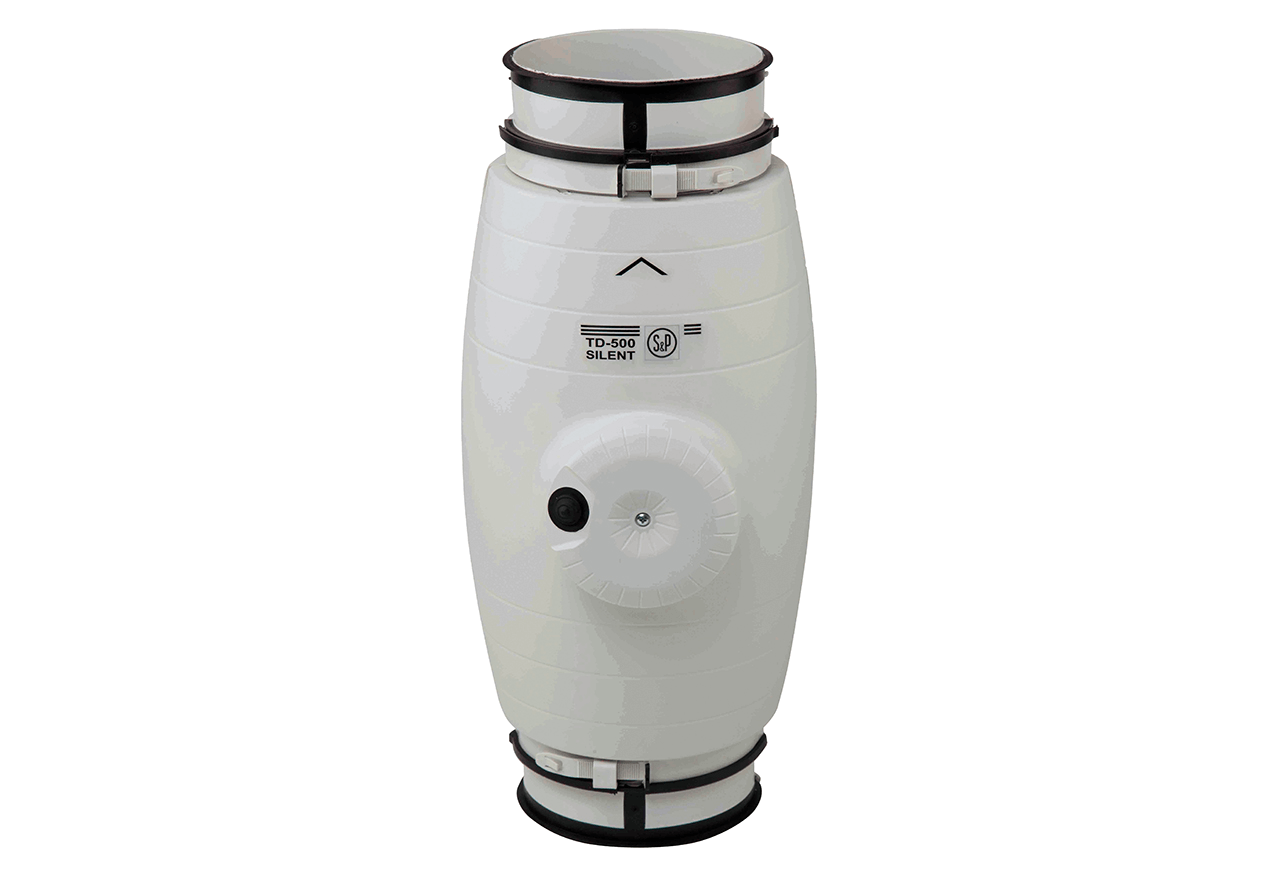

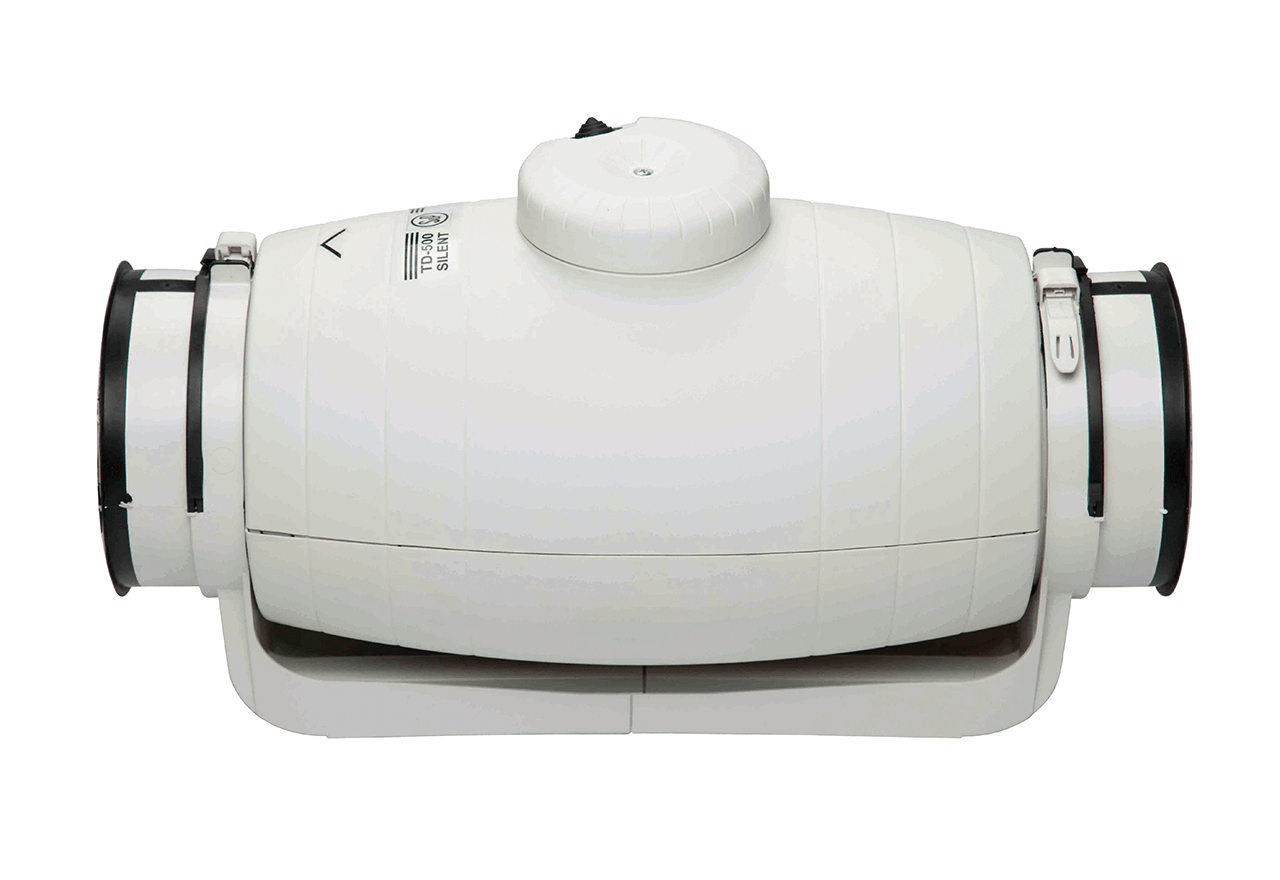

Thermex Kanalv TD 500/160 Scandic
210.34.3450.2
Thermex TD-Silent Scandic is, with its sound level as low as 24 dB(A), the world's quietest fan in its class
Connection diameter
The Thermex TD-Silent Scandic is, with its sound level as low as 24 dB(A), the world's quietest fan in its class. Thanks to large investments, both financially and in terms of time, it has been possible to manufacture this duct fan, which is distinguished by an extremely low sound level. Up to 12 dB(A) lower sound level than similar products on the market.
Thermex TD-Silent Scandic technology is based on the very best in noise insulation material, at the same time Thermex TD-Silent Scandic is very easy to service, as the motor can be removed without separating the fan from the pipe system. Thermex TD-Silent Scandic is IP44 classified.
Specifications
Energy consumption [W]
59
Luftmængde ved 0 Pascal [m3/t]
550
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
22
Control
None
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
59
Luftmængde ved 0 Pascal [m3/t]
550
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
22
Control
None
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
484
Maximum depth [mm]
274
Maximum height [mm]
221
Aftræksdimension (mm)
Ø160
Net weight [kg]
1.5
Weight
1.6
Features
Control
None
Timer funktion
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
59
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
550
Minimum sound pressure at 3 meters [dB(A)]
22
Maximum sound pressure at 3 meters [dB(A)]
27
Voltage [V]
230
Other specifications
EAN
8413893872838
BodyColor
White
Material
Plastic
Fan speed [rpm]
2500
Downloads
Here you will find all documents relevant to this product
