Thermex Plasmex® filter II - Flat

535.10.1001.9
Thermex Plasmex Filter II is a compact and high-performance recirculation filter with up to 10 years lifespan and no maintenance required.

Thermex Plasmex Filter II is an advanced and space-saving recirculation solution of the highest quality, delivering exceptional performance and minimal maintenance.

Design and application
Plasmex Filter II is designed as a flat solution, making it possible to install efficient recirculation even where space is limited. The compact construction makes the filter ideal for installation in ceilings, plinths or in connection with hobs with integrated extraction, where traditional solutions are often not suitable. Its discreet design allows seamless integration without compromising the kitchen’s aesthetics.

High-performance filtration technology
The filter uses advanced plasma technology, where air particles are electronically charged to effectively neutralize odors. With a purification rate of up to 96.5%, Plasmex Filter II operates in a completely different league compared to traditional carbon filters. In addition to removing odors, it also filters bacteria, smoke and other pollutants, contributing to a healthier indoor climate and making it particularly suitable for allergy sufferers.

Automatic operation and low energy consumption
Plasmex Filter II is connected to a power supply and automatically detects when the cooker hood is in use. The filter activates itself and starts purifying the air without manual operation. Energy consumption is very low, with only 0.5 W in standby and up to 10 W during operation, ensuring an efficient and economical solution.

Long lifespan and maintenance-free
With a lifespan of up to 10 years, Plasmex Filter II eliminates the need for regular filter replacement. The filter is self-cleaning and requires no maintenance, making it a practical and cost-effective investment compared to traditional carbon filters that need frequent replacement.

Specifications
Plasma technology with electronic charging of air particles
Purification rate up to 96.5%
Lifespan up to 10 years
Self-cleaning and maintenance-free
Energy consumption: 0.5 W standby / up to 10 W operation
Power supply: 210–250 V
Compact and flat design for space-limited installations


Thermex Plasmex Filter II is the ideal solution for modern kitchens where high performance, long lifespan and minimal maintenance are essential.

  • Advanced plasma technology with up to 96.5% air purification
  • Compact flat design ideal for installations with limited space
  • Self-cleaning filter with no maintenance required
  • Low energy consumption with only 0.5 W standby and 10 W operation
  • Automatically activates when the cooker hood is in use

Specifications

Filter type
Plasma
Washable
No
Estimated lifespan
Over 10 years
Control
Not relevant
Material
Stainless steel
Voltage [V]
230

Specifications

Filter type
Plasma
Washable
No
Estimated lifespan
Over 10 years
Control
Not relevant
Material
Stainless steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
540
Maximum depth [mm]
280
Maximum height [mm]
92
Packaging width(mm)
880
Packaging depth [mm]
310
Packaging height(mm)
110
Net weight [kg]
5
Weight
5.5

Features

Control
Not relevant

Technical specifications

Voltage [V]
230

Other specifications

EAN
5703347963384
BodyColor
Stainless steel
Material
Stainless steel
Filter type
Plasma
Washable
No
Estimated lifespan
Over 10 years

Downloads

Here you will find all documents relevant to this product

Product info

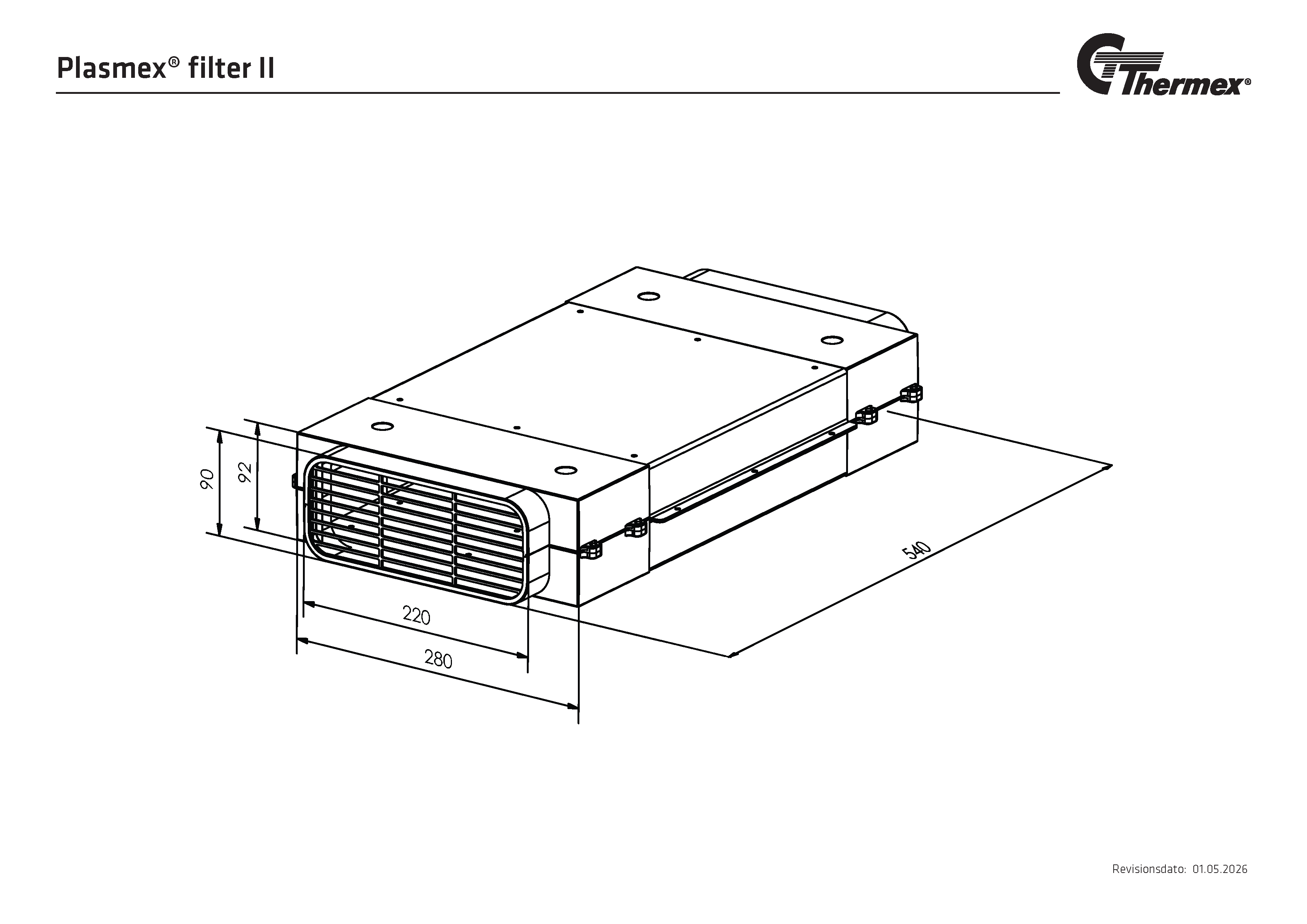

Dimensional drawing

Installation manual
