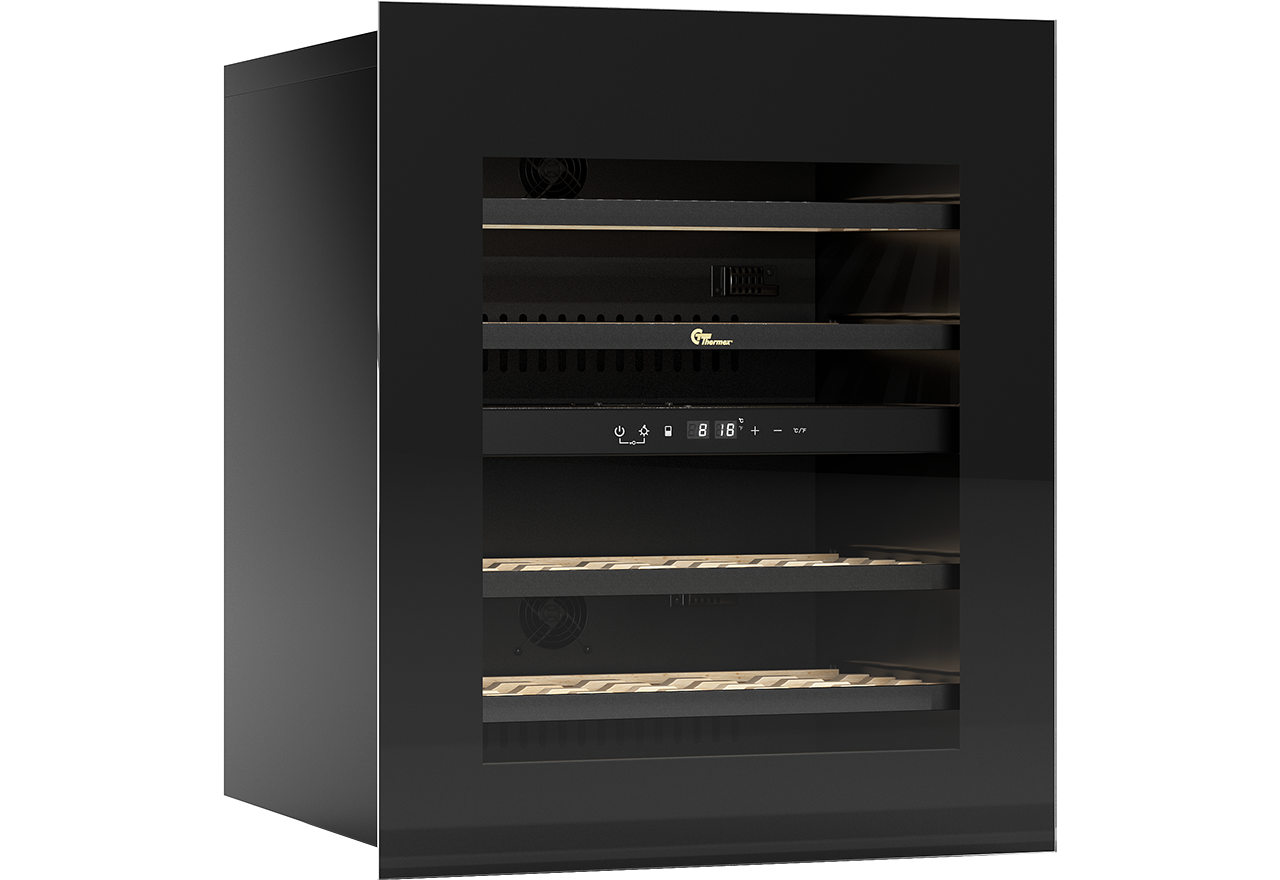

Winemex Blue 30, handle-free, 70 cm

910.21.2020.2

Thermex Winemex Blue 30 handleless is a stylish and elegant wine cabinet of the highest quality with room for 30 bottles of wine. The model is without a handle and fits kitchens with a handle strip and a raised tabletop

Thermex Winemex Blue 30, handleless 700 EASY-FIT is a stylish and elegant wine cabinet of the highest quality with space for 30 bottles of wine. Quiet with 38 dB and vibration dampened compressor, interior LED lighting and 4 shelves in beautiful beech wood. Door that matches perfectly in kitchens with 700 mm high doors/drawers -2 different cooling zones 5-12 degrees and 12-20 degrees so you can have different temperatures at the top and bottom, e.g. one for white wine and one for red wine. A really beautiful wine cabinet to build into the kitchen cupboard and easily store the wine collection in the kitchen. The cabinet has a carbon filter to ensure an odor-free climate inside the cabinet. Easily installed in a kitchen cabinet with grab bar and raised worktop. The smart supply air ventilation, which is brought in via the plinth, is almost invisible. Exhaust air ventilation is done via the wine cooler door.

  • 4 shelves of beech wood and fixed base for 30 bottles of Bordeaux size
  • Two zones – one at the top and one at the bottom
  • Quiet and vibration dampened compressor - 38 DB
  • Fits door height of 700 mm
  • Handle-free and reversible door

Specifications

Number of bottles
30
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
38
Number of zones
Tozone skab
Temperature zone 1
5-12°C
Temperature zone 2
12-20°C
Control
Glass touch
Material
Black painted steel and Black glass

Specifications

Number of bottles
30
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
38
Number of zones
Tozone skab
Temperature zone 1
5-12°C
Temperature zone 2
12-20°C
Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
595
Maximum depth [mm]
555
Maximum height [mm]
700
Volume [L]
85
Packaging width(mm)
745
Packaging depth [mm]
715
Packaging height(mm)
780
Net weight [kg]
39
Weight
44

Features

Control
Glass touch
Defrosting
Automatic
Anti Vibration
Yes
Cooling technique
Anti vibration compressor
Possibility to rehinge door
Yes
Winter function
No

Technical specifications

Energieffektivitetsindeks
169.2
Energieffektivitetsklasse(EEI)
G
Årligt energiforbrug
140
Climate class
N (+16 °C til +32 °C)
Air circulation
Yes
Maximum Soundpower [dB(A)]
38
Power supply [V]
230

Other specifications

EAN
5703347901973
BodyColor
Black
BodyColor (RAL)
0
Material
Black painted steel and Black glass
Number of bottles
30
Number of zones
Tozone skab
Use of the appliance
The appliance is only intended for storing wine.
Installation type
Designed for built-in
SupplyCord (m)
1.5
Refrigerant
R600a
Refrigerant weight [g]
21

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info
