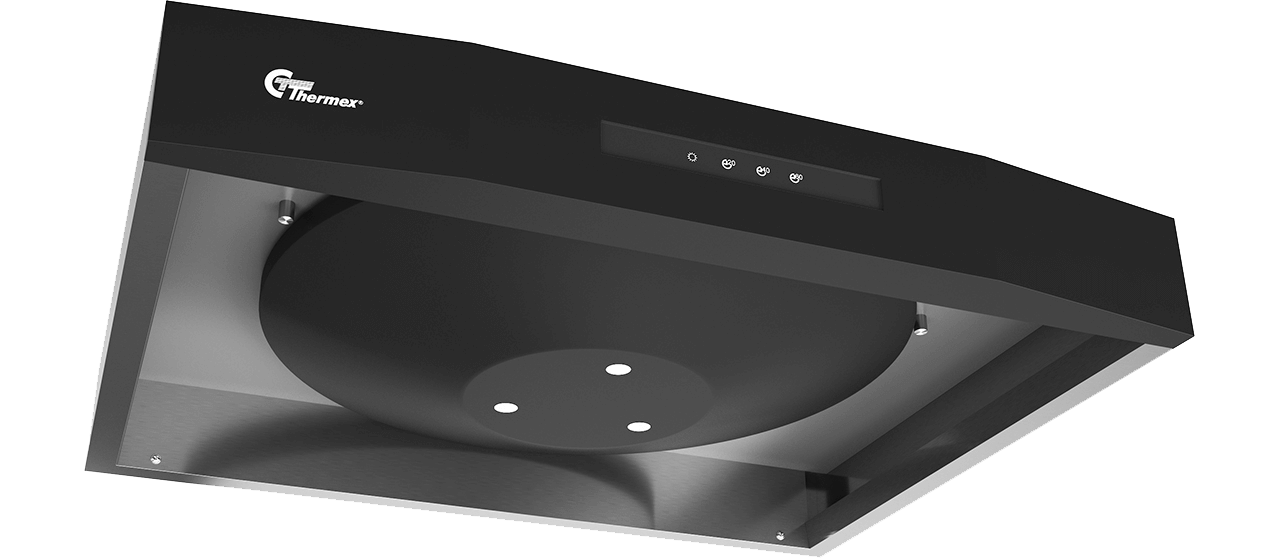

Airgrip 598x80 mm Black/Stainless Incl. hygrostat and switch

530.26.5000.2
Thermex airgrip in black/stainless is the market's most efficient extractor hood for shared exhausts. The aerodynamic design of the extractor hood provides maximum absorption with a minimum of air flow.
Height
Color hood
Please select variant!

Thermex Airgrip is both innovative and super efficient. In an apartment where there is a common exhaust, it is one of the most efficient kitchen hoods on the market. The unique design of the collection part means that steam and fumes are collected much better, and makes it easier for the communal system to transport the air out of the apartment. The built-in humidity meter means that Airgrip can be controlled as needed. In an apartment with a common exhaust, the kitchen hood also contributes to ventilation when you are not cooking. Tested and recognized by the authorities for communal flues.

  • Timer function: 20, 40, 60 min
  • Built-in switch (Trigger)
  • Possibility of energy-saving demand management
  • Built-in humidity meter

Specifications

Control
Glass touch
Material
Stainless and black painted steel
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
151
Voltage [V]
230

Moisture sensor

The humidity sensor is a smart function that enables the product to start automatically when the humidity (relative humidity) in the room is high. In the same way, it switches off again when the desired humidity is reached.

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Edge suction

Hoods with edge suction has an exclusive design with the filters hidden inside the hood. Edge suction creates air currents all the way around the cooking zone. It is these air currents that effectively trap the food.

Projekteringsfane

Odour extraction test standard
EN 13141-3

Specifications

Control
Glass touch
Material
Stainless and black painted steel
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
151
Voltage [V]
230

Weight and measurements

Maximum width [mm]
598
Maximum depth [mm]
505
Maximum height [mm]
265
Outlet dimension (mm)
Ø125
Packaging width(mm)
435
Packaging depth [mm]
710
Packaging height(mm)
580
Net weight [kg]
9.1
Weight
11.3

Features

Control
Glass touch
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
6
Type of plug
Schuko
Odour extraction >75% installation height 500 mm [m3/t]
144
Odour extraction >75% installation height 600 mm [m3/t]
151
Odour extraction test standard
EN 13141-3
Voltage [V]
230

Other specifications

EAN
5703347519796
Type of grease filter
Aluminum filter
Number of filters
1
Number of speeds ex (boost)
2
Number of lamps
3
Suction Bottom
Yes
Suction Front
No
Suction Edge
Yes
Mounting
Cabinet substantiated
Motor type
Central ventilation
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Stainless and black painted steel
SupplyCord (m)
2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensioneringsdiagram

Indreguleringsdiagram

Installation manual

Odour extraction performance

User manual
