Central Gemini IV, 600 mm, white

530.41.5044.2

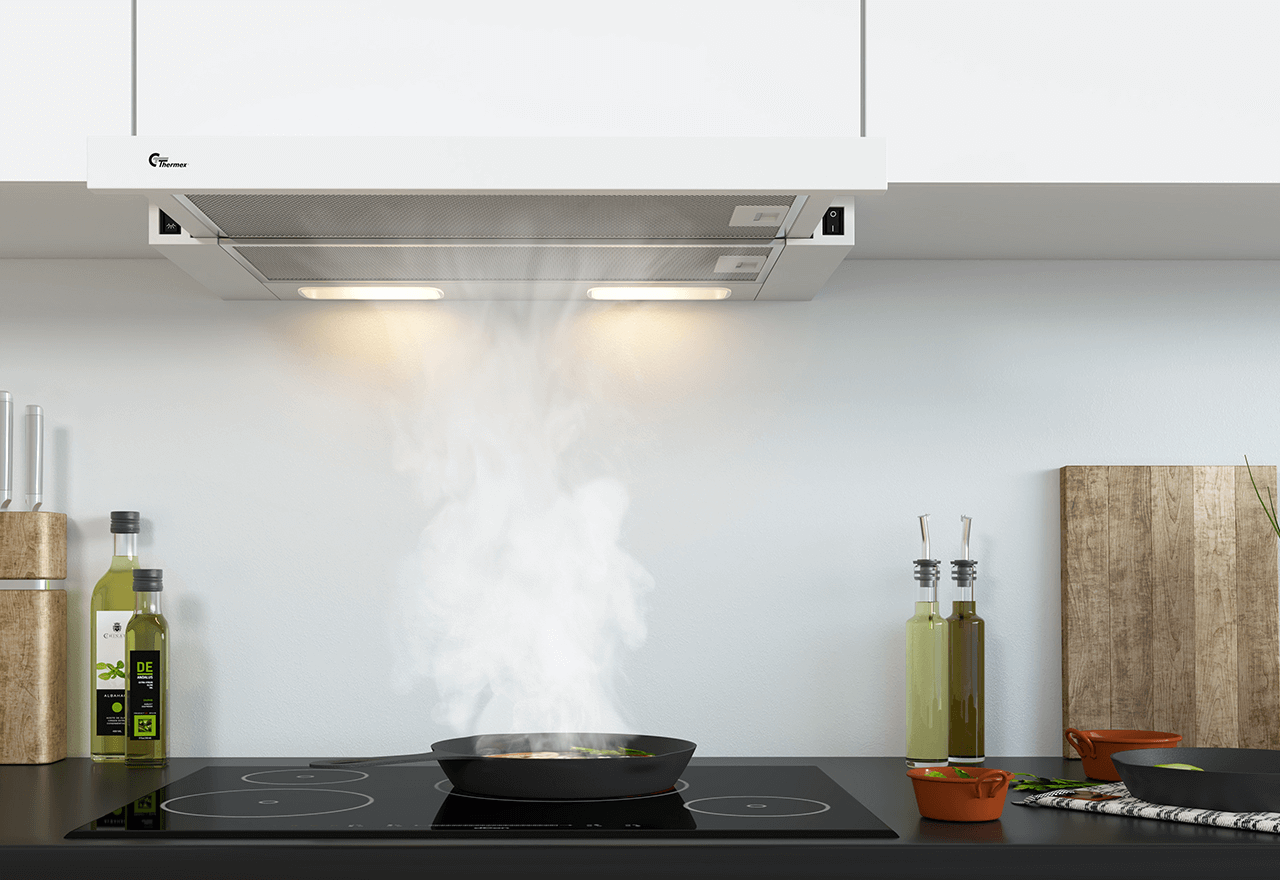

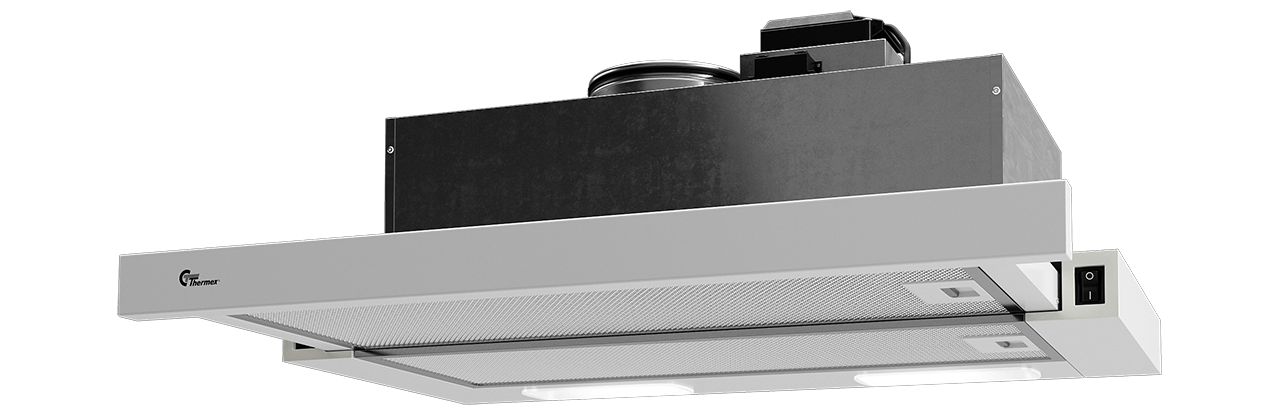

Thermex Central Gemini IV 60 cm in white with switch is one of the market's most price-friendly pull-out hoods for central ventilation and installation in overhead cabinets The design of the hood provides maximum absorption with a minimum of air flow

The Thermex Central Gemini IV is the latest new model in our popular Gemini series. The hood is intended for central ventilation. This means that the hood has a metal flap that can be opened and closed via the hood's controls, and therefore not a motor like on a traditional hood. When the damper opens, the extraction from the hood via the building's ventilation system is increased.

Gemini IV is designed as a pull-out hood, which has the advantage of covering a larger area than e.g. a built-in model. At the same time, this means that the hood's absorption rate is improved. And when you are not cooking, you can push the extractor in and only the hood's front strip is visible under the cabinet.

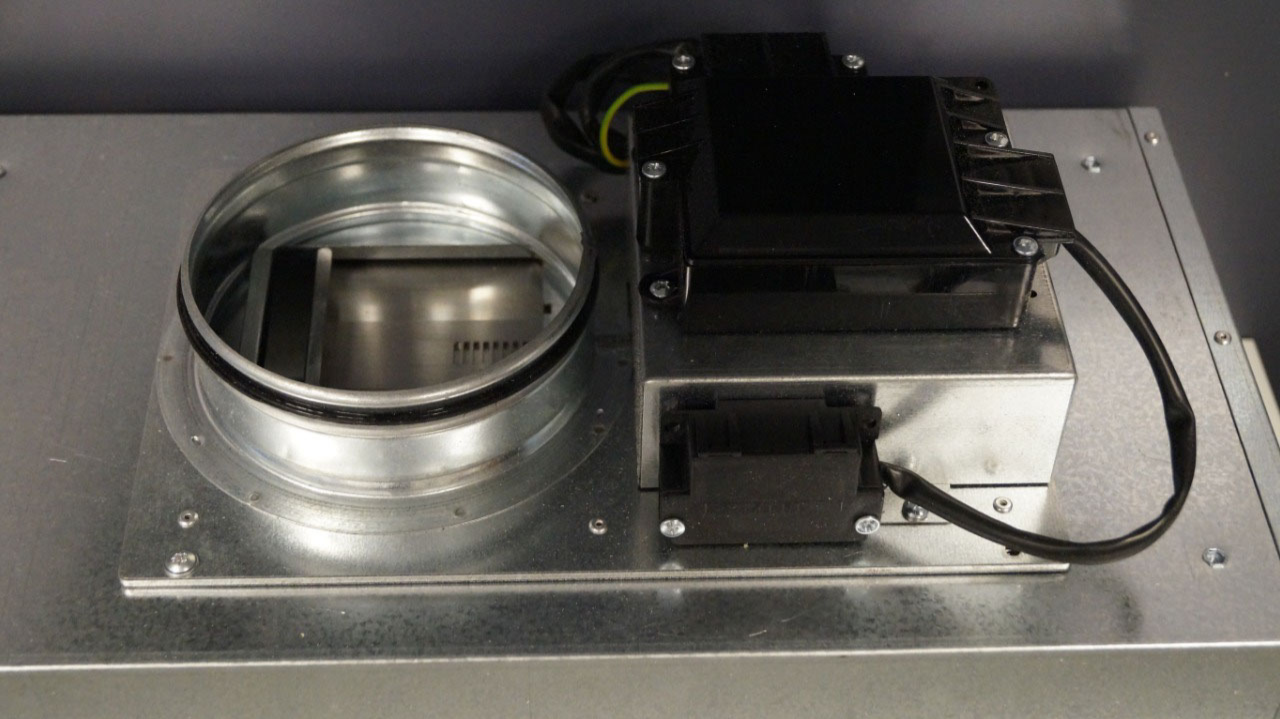

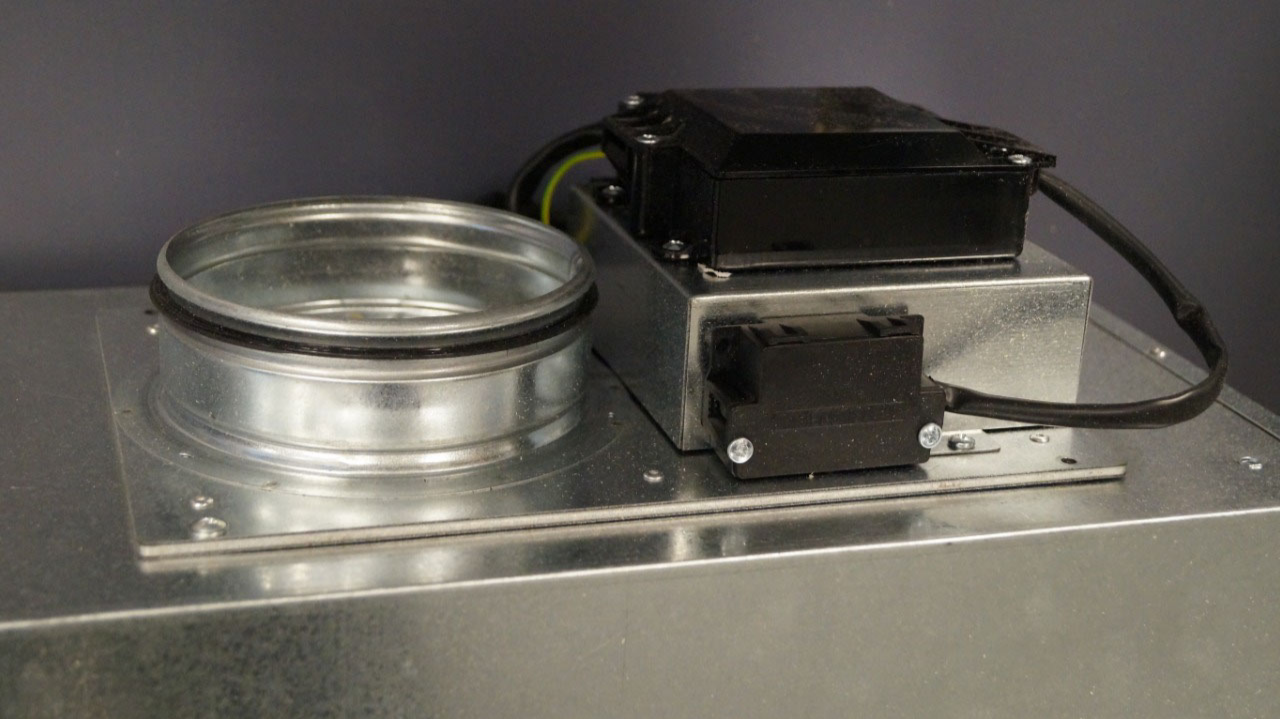

The new damper in the hood is the difference from previous versions. Here, great emphasis has been placed on the damper opening being as large as possible to ensure the lowest possible pressure drop. This means that less demands can be placed on the ventilation system compared to before. The larger the opening, the less pressure above the damper is required by the ventilation system. In addition, it is also possible to close the damper completely. The Gemini IV damper is now powered by an electric motor, so compared to previous versions, the hood's damper opens much faster.
There is a built-in switch (trigger/potential free contact set) in Gemini IV. It is a function that allows the hood to notify the ventilation system that the hood is in operation.
The hood's filters are easily removed when cleaning the hood. The filters can be washed in a dishwasher.

Operation

The hood's operation is very simple. When you pull out the extractor, you will find an on/off button for the hood's lighting on the left side. And on the right side you will also find an on/off button for the hood's damper. In addition, there is a built-in function in the extractor, which means that when the extractor is pushed in after finishing cooking, the light switches off and the damper closes. And also vice versa, when the drawer is pulled out, the light will turn on and the shutter will open. Of course, depending on how the two toggle buttons for light and shutter are set.

Installation

The installation is simple, as the hood is supplied with angles which are screwed into the sides of the upper cabinet, after which the hood is screwed to the angles. In addition, we have made it even easier for the installer to adjust the hood to the building's ventilation system, as all settings of the hood's newly developed damper can be made after installation by removing the hood's filters. Adjustment diagrams and dimension diagrams can be found in the hood's installation instructions.
  • Built-in switch (Trigger)
  • Easy installation
  • Effective metal damper with low pressure drop

Specifications

Control
Switch control
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
152
Odour extraction >75% installation height 600 mm [m3/t]
171
See all specifications

Specifications

Control
Switch control
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
152
Odour extraction >75% installation height 600 mm [m3/t]
171

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
480
Maximum height [mm]
224
Outlet dimension (mm)
Ø125
Packaging width(mm)
350
Packaging depth [mm]
635
Packaging height(mm)
240
Net weight [kg]
8
Weight
9

Features

Control
Switch control
Eftersug
Ja
Indicator for filter cleaning
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
3000
Lamp consumption [W]
2.5
Total consumption of light (WL) [W]
5
Power supply [V]
230
Odour extraction >75% installation height 500 mm [m3/t]
152
Odour extraction >75% installation height 600 mm [m3/t]
171
Odour extraction test standard
EN 13141-3

Other specifications

EAN
5703347532405
Type of grease filter
Aluminum filter
Number of filters
2
Number of lamps
2
Suction Bottom
Yes
Suction Edge
No
Mounting
Extract
Motor type
Central ventilation
Front panel color
White
BodyColor
White
BodyColor (RAL)
9003
Material
White painted steel
