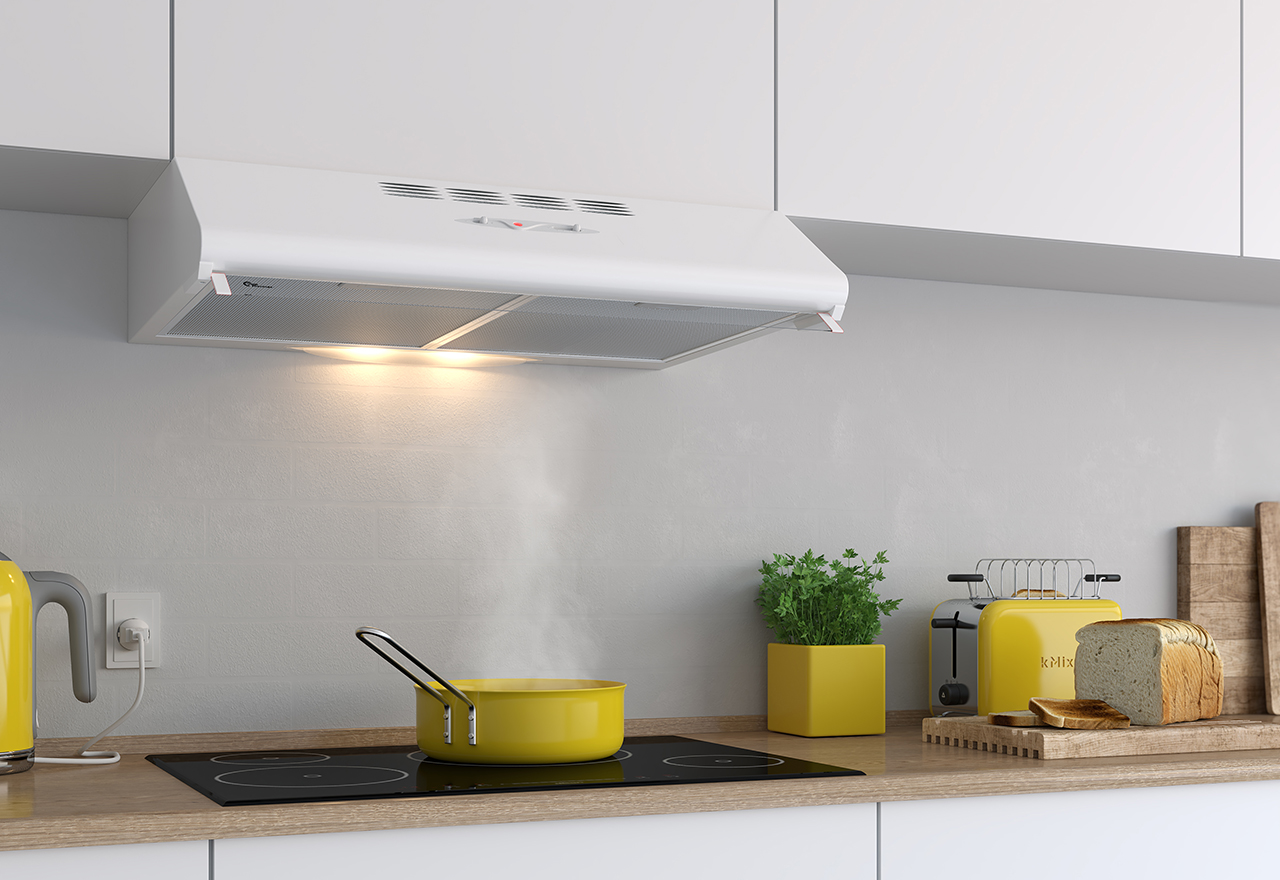

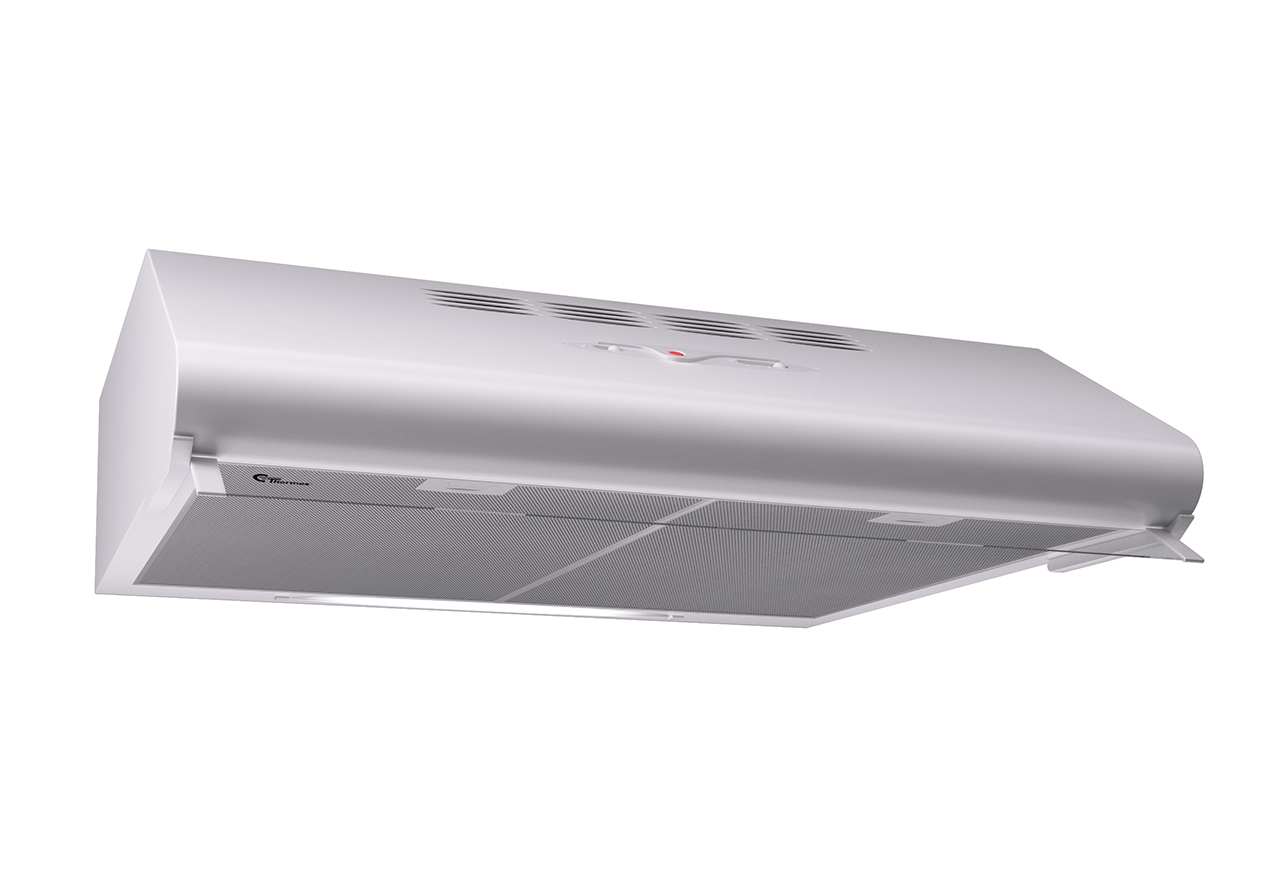

Thermex Manchester 60 cm in white with Lux motor is an efficient and quiet hood for cupboard mounting. The built-in motor ensures efficient extraction and the control button ensures simple and reliable operation.
Width
Motor type
Please select variant!
Thermex Manchester is a traditional kitchen hood with a look and functions that you are used to. Available in a Standard and a Lux model, Lux has a more powerful motor than Standard, but both are available in 50 and 60 cm widths. Suitable for renovation projects or when you just need to replace the hood because the old one no longer works. It has an air intake in the front so it fits perfectly when you want a hood with carbon filter. The built-in motor can produce up to 335 m3/h.
The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.
Specifications
Minimum airflow [m3/h]
163
Minimum-Soundpower [dB(A)]
53
Maximum-airflow [m3/h]
335
Maximum-Soundpower [dB(A)]
69
Control
Slide buttons
Material
White painted steel
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
505
Maximum height [mm]
150
Outlet dimension (mm)
Ø125
Packaging width(mm)
185
Packaging depth [mm]
545
Packaging height(mm)
650
Net weight [kg]
8
Weight
9
Features
Control
Slide buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
83
LE value [lux/W]
15
LE-class
D
EEI-value
84
EEI-class
C
Lamp consumption [W]
2.8
Total consumption of light (WL) [W]
5.6
GFE-value
66
GFE-class
D
FDE-value
12
FDE-class
E
Motor Power [W]
140
Voltage [V]
230
Other specifications
EAN
5703347517402
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.42.9000.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
Downloads
Here you will find all documents relevant to this product
