Plan 252 600 mm white - With switch

530.30.2252.2

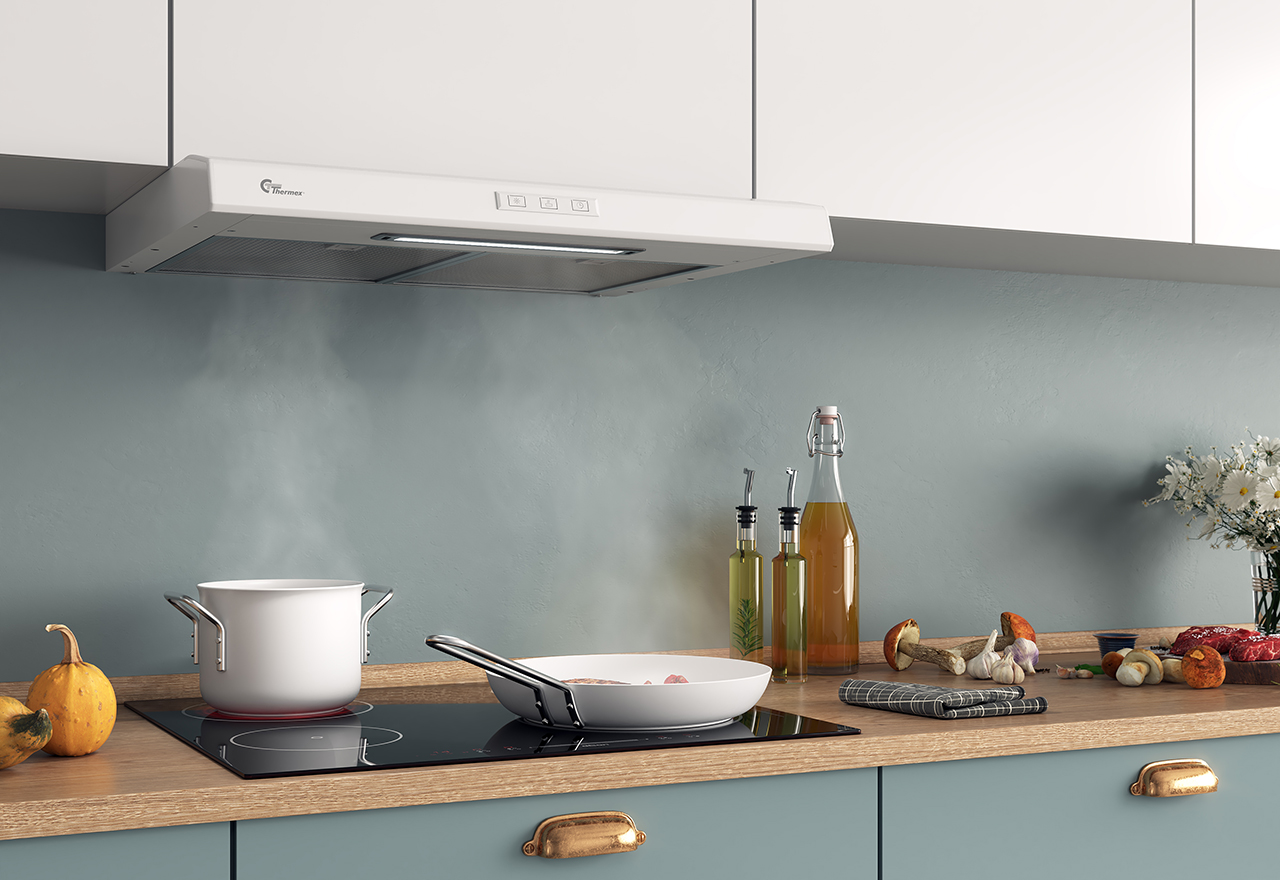

The Thermex Plan 252 in 60 cm in white is a simple and reliable extractor hood for mounting under an overhead cabinet.

The Thermex Central Plan 252 is a simple, affordable and durable extractor hood solution for apartments with a communal exhaust. The hood fits perfectly in all 60 cm cupboards as a substructure. The light in the hood is of course LED light, which is designed as an LED bar in the front of the hood, which provides optimal light over the entire hob. The advantage of LED light is of course low energy consumption, but not least also the long lifespan. In other words, you don't have to change the light bulb several times a year. A so-called Volume part can be purchased for the hood, which is a "skirt" that increases the absorption.

Operation

There is electronic control with 3 buttons. Turn on/off the light, open and close the damper (suction) and a simple timer of 60 minutes. With the timer, the hood automatically closes the damper in the hood, and thus the suction from the kitchen. In addition, the hood is delivered as standard with a built-in trigger function, which is often used in central ventilation today. It is a function that allows the hood to notify the ventilation system that the hood is in operation.

Specifications

Control
Push buttons
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
169
Odour extraction >75% installation height 600 mm [m3/t]
184
Voltage [V]
230

Specifications

Control
Push buttons
Material
White painted steel
Odour extraction >75% installation height 500 mm [m3/t]
169
Odour extraction >75% installation height 600 mm [m3/t]
184
Voltage [V]
230

Weight and measurements

Maximum width [mm]
598
Maximum depth [mm]
490
Maximum height [mm]
60
Outlet dimension (mm)
Ø125
Packaging width(mm)
550
Packaging depth [mm]
640
Packaging height(mm)
160
Net weight [kg]
5.5
Weight
6.5

Features

Control
Push buttons
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
3000
Lamp consumption [W]
6.5
Total consumption of light (WL) [W]
6.5
Odour extraction >75% installation height 500 mm [m3/t]
169
Odour extraction >75% installation height 600 mm [m3/t]
184
Odour extraction test standard
EN 13141-3
Voltage [V]
230

Other specifications

EAN
5703347531989
Type of grease filter
Aluminum filter
Number of filters
1
Number of lamps
1
Suction Bottom
Yes
Suction Edge
No
Mounting
Cabinet substantiated
Motor type
Central ventilation
BodyColor
White
Material
White painted steel
