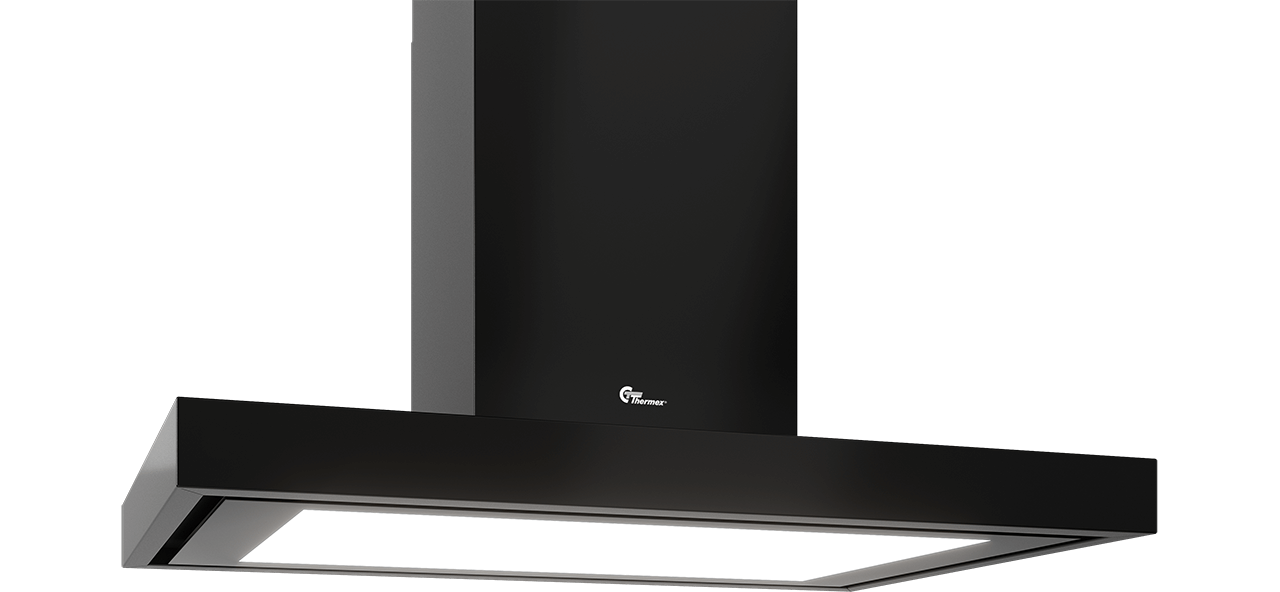

Harwich Lux - 90 cm, Wall, black w/motor

527.23.3192.2
Harwich Lux wall-mounted 90 cm in black with motor is a classic hood with a large suction surface and adjustable light that ensures the right atmosphere and good working light
Motor type
Please select variant!

Thermex Harwich Lux is a distinctive and robust T-shaped wall-mounted model with a horizontal design. The matt black Harwich Lux fits well into any modern kitchen, either as a contrast to light colors or in combination with darker colors on walls or kitchen elements.

What is completely unique about Harwich Lux is the large light plate that covers the bottom of the hood. When you activate the light in the hood, the bottom plate lights up with an indirect work light. You can both adjust the brightness with the dimmer function, but as something new, you can also set the color temperature of the light from cold to warm light. This means that it is possible to adjust the light exactly as you want.

The hood has edge suction, which means that you have a suction slot all the way around the bottom plate which effectively collects moisture from the cooking zone. Because of the edge suction, the air speed in the gap becomes higher and thus it is an incredibly effective suction technique.

By grasping the bottom plate, you can open up to the filter in the hood. The bottom plate is hinged at the rear edge and is held up with a magnetic bracket. It is only necessary to open it when cleaning the hood and its filters. The filter can be washed in a dishwasher, so cleaning can be done quickly.

Operation

The hood comes with a remote control where you can activate the hood's motor, set the suction power and activate the hood's light. The remote control is easy to store in your kitchen drawer, as with its compact design it is easy to store and operate with one hand.

In addition, the hood can be operated via the Thermex Remote app, which can be downloaded for free from the App Store and Google Play. In the app, it is possible to adjust the brightness, activate periodic extraction, get an indication for filter cleaning and adjust the color temperature of the light from warm to cold.

It is also possible to use the Voicelink functionality with Harwich Lux. Here you can control the hood with your voice alone via Google Assistant (Hey Google) . So there are plenty of options to choose from to operate your Thermex Harwich Lux.

motor

The built-in motor in the Harwich Lux is an Eco motor which has many advantages. It has a very low energy consumption, which is good for both the climate and the electricity bill. In addition, the sound level of the hood is ultra-low, which means that you can use the hood without any problems and at the same time have a conversation over the food. The best thing is that you don't compromise on the suction power either, as the hood has been tested to be able to extract 505 m3/h on the high speed, and as much as 690 m3/h on the boost speed.

  • Unique light plate that can be adjusted in color temperature
  • Supplied with remote control
  • Easy cleaning

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
520
Maximum-Soundpower [dB(A)]
62
Airflow with boost [m3/h]
705
Soundpower boost [dB(A)]
69
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
210
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
520
Maximum-Soundpower [dB(A)]
62
Airflow with boost [m3/h]
705
Soundpower boost [dB(A)]
69
Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
500
Maximum height [mm]
1030
Vent pipe width (mm)
325
Vent pipe max height (mm)
950
Vent pipe min height (mm)
490
Minimum length vent pipe cutdown [mm]
650
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
1000
Packaging depth [mm]
550
Packaging height(mm)
580
Net weight [kg]
25
Weight
27.5

Features

Control
Remote control
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

LE value [lux/W]
35
LE-class
A
EEI-class
A++
Lamp consumption [W]
10
Total consumption of light (WL) [W]
10
GFE-value
58
GFE-class
E
FDE-value
40.3
FDE-class
A
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
160
Voltage [V]
230

Other specifications

EAN
5703347532139
Type of grease filter
Aluminum filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
4
Number of lamps
1
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black lacquered steel
Material
Black painted steel and Black glass

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

User manual

Teknisk info

Exhaust fittings
