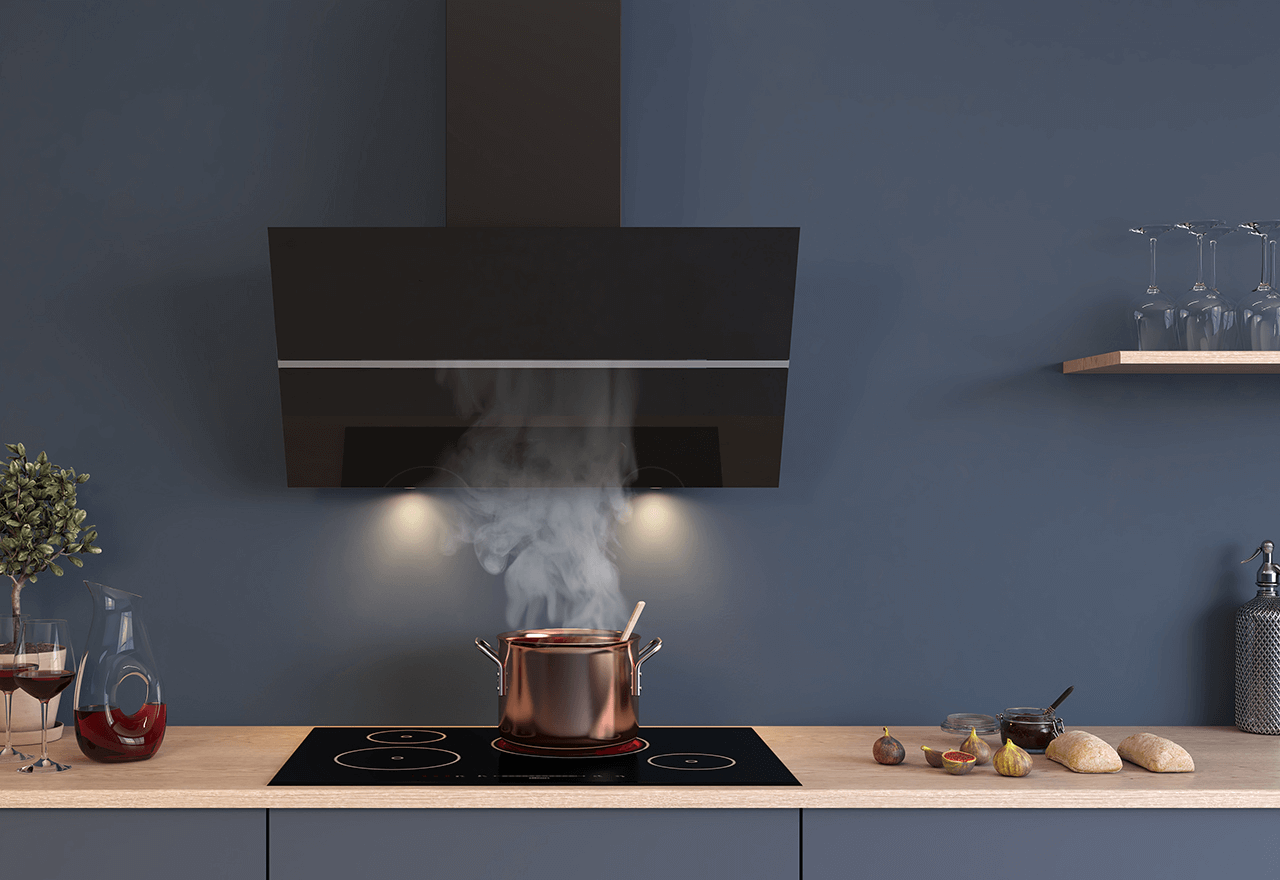

Central Mini Bordeaux 80 cm black, apartment

540.23.1588.7

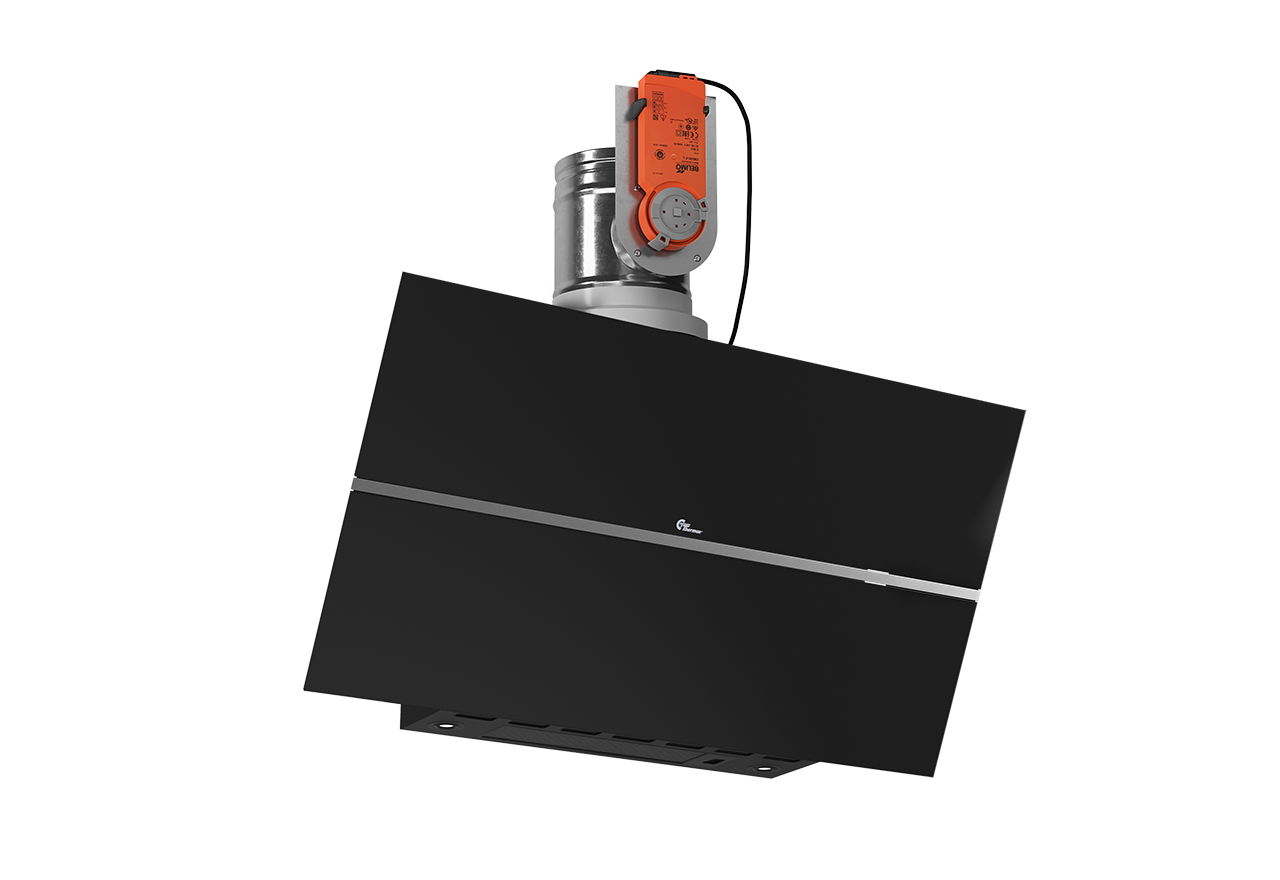

Central Mini Bordeaux apartment is supplied with electronic timer controlled damper, 15-30-45 and 60 min.
Width
Motor type
Please select variant!

Central Mini Bordeaux apartment is a stylish vertical model with black flat glass and stainless steel in 600 or 800 mm width. Comes with a nicely designed remote control for the cover's functions. With Google Home, it is also possible to use voice control. The lower glass panel can be opened for more efficient non-absorption. Central Mini Bordeaux apartment is supplied with electronic timer controlled damper, 15-30-45 and 60 min.

  • Control with remote control
  • The color temperature of the lighting can be adjusted via the app
  • Possibility of voice control (Voice Link) via Google Home
  • Electronic timer-controlled damper with setting of basic and forcing flow
  • Built-in trigger (closing contact)

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

VoiceLink

Control your Thermex hood by using your voice alone - this applies to both the hood's suction power and light. This gives you the freedom to use your hands for other things when you are in the kitchen.

Read more

Wifi

The Wifi function means that the product communicates wirelessly via Wifi. All private homes today have Wifi, which offers many options in connection with electronic ventilation products.

App control

With the App control, you can access your Thermex product via your smartphone. It turns your smartphone into a remote control, so you always have full control. In the app, there are more functions than you find on the normal operation.

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Kelvin adjustment

Kelvin adjustment makes it possible to adjust the color temperature of the light from cold to warm light. This makes it possible to make the light in the product fit perfectly with the other lighting in the kitchen.

Remote control

The remote control makes it easy and convenient to operate your Thermex product. You don't even have to get up - Then it doesn't get any easier.

Light dimmer

Using the dimmer function, you can adjust the brightness of the work light in the scope. The lighting in kitchens is very different, so with dimmers you can adjust the amount of light to suit your needs.

Bottom suction

This hood has bottom suction. This means that there is a metal filter or suction slit at the bottom of the hood, which makes the suction even more effective.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Periodic extraction

Periodic extraction is a function of the hood which makes it possible to use the hood as an aid for ventilation in the home. You can e.g. set the hood to start for 10 minutes per hour.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Filter cleaning indicator

The filter cleaning indicator is a timer that reminds you to remember to clean the filter in the hood. It is not a sensor, but a timer that gives a notification after a period of time.

Specifications

Control
Remote control
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
800
Maximum depth [mm]
340
Maximum height [mm]
1330
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
800
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
750
Packaging depth [mm]
900
Packaging height(mm)
430
Net weight [kg]
20
Weight
22

Features

Control
Remote control
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
366
LE value [lux/W]
122
LE-class
A
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
64
GFE-class
E
Type of plug
Schuko
Voltage [V]
230

Other specifications

EAN
5703347532603
Type of grease filter
Aluminum filter
Number of filters
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Central ventilation
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
SupplyCord (m)
1.7

Downloads

Here you will find all documents relevant to this product

Product info

Quick guide

User manual

Exhaust fittings
