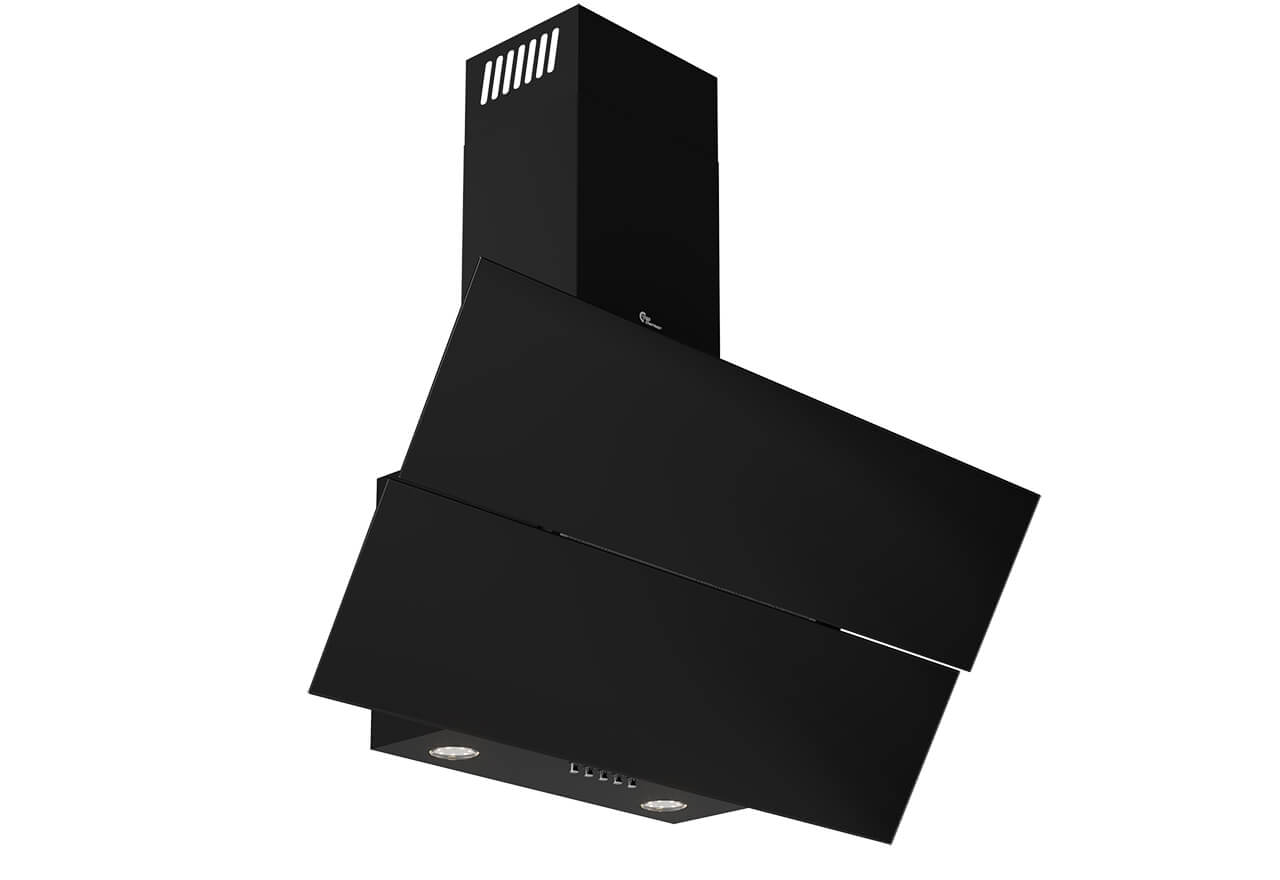

Reading 800 mm Black with motor

540.23.1388.2
Thermex reading 80 cm in black with motor is a price-friendly angled hood with strong suction motor and simple operation.
Width
Please select variant!

A new Thermex bestseller is on the way, namely the wall-mounted and inclined Thermex Reading . Affordable price, stylish design and fine specifications make it a sure winner. We don't know in advance whether your kitchen will look best with the one that is 60 cm wide or 80 cm wide, but we do know that it will form a work of art on the wall. Do like many others choose Thermex Reading, you will not regret it. The built-in motor can produce up to 232 m3/h and as much as 385 m3/h when using the boost function

  • Modern design
  • Simple operation
  • Possibility of balanced air exchange using the Trigger Link Module
  • Easy to clean

Specifications

Minimum airflow [m3/h]
232
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
385
Maximum-Soundpower [dB(A)]
67
Energy consumption [W]
141
Control
Push buttons
Material
Black painted steel and Black glass
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Push button

The classic push button regulation has been used in hoods for many years. It's a simple way to turn on the lights and engine by pressing the spring actuated buttons. Simple and incredibly reliable.

Front suction

This hood has front suction. This means that there is a suction slot in the front of the hood, which makes the suction even more effective. This especially helps to catch the embers from the outermost cooking zones.

Specifications

Minimum airflow [m3/h]
232
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
385
Maximum-Soundpower [dB(A)]
67
Energy consumption [W]
141
Control
Push buttons
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
800
Maximum depth [mm]
310
Maximum height [mm]
1055
Vent pipe width (mm)
206
Vent pipe max height (mm)
785
Vent pipe min height (mm)
485
Minimum length vent pipe cutdown [mm]
270
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø125
Packaging width(mm)
1000
Packaging depth [mm]
430
Packaging height(mm)
440
Net weight [kg]
12.5
Weight
14

Features

Control
Push buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
280
LE value [lux/W]
46.6
LE-class
A
EEI-value
80.8
EEI-class
C
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
GFE-value
70.1
GFE-class
D
FDE-value
12.9
FDE-class
E
Energy consumption [W]
141
Motor Power [W]
135
Voltage [V]
230

Other specifications

EAN
5703347531132
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.23.0560.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
