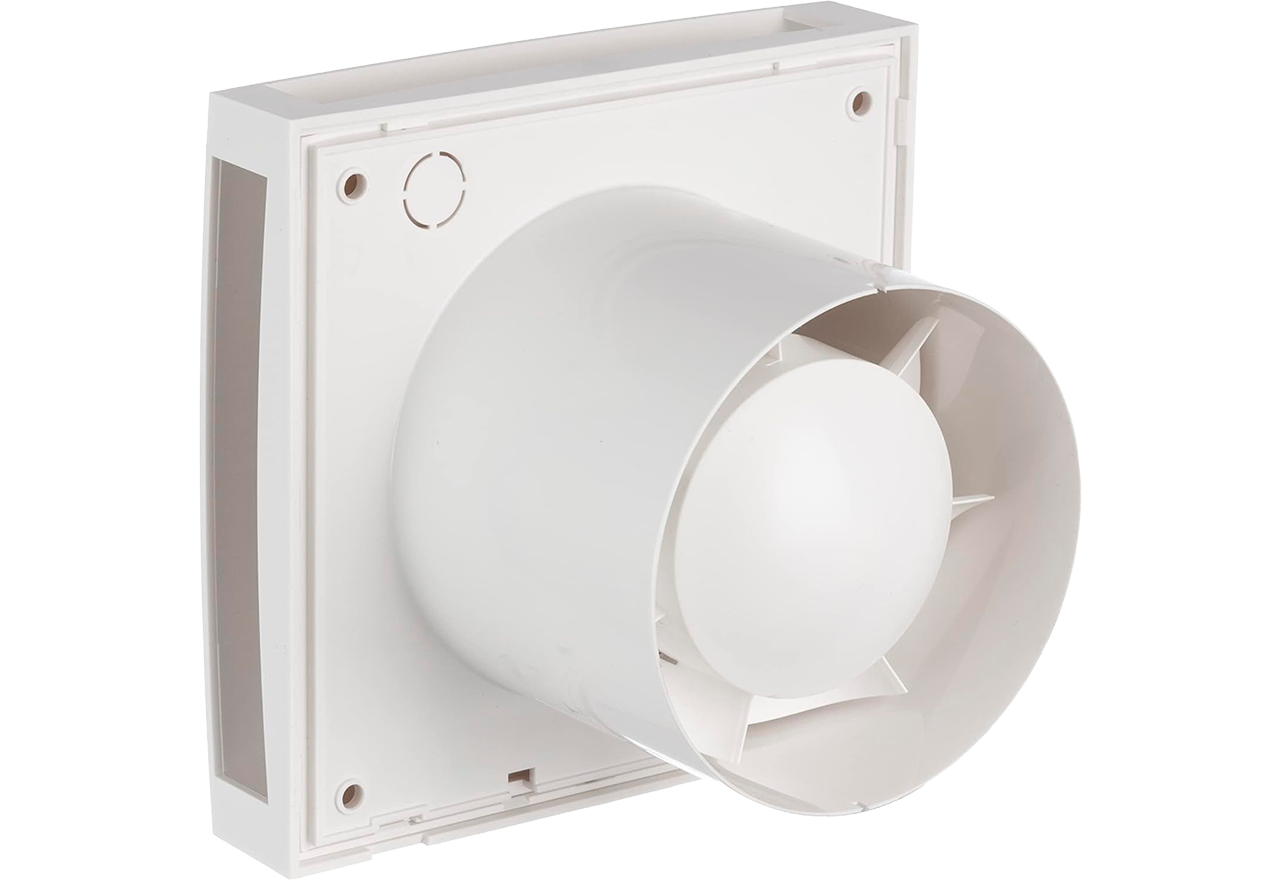

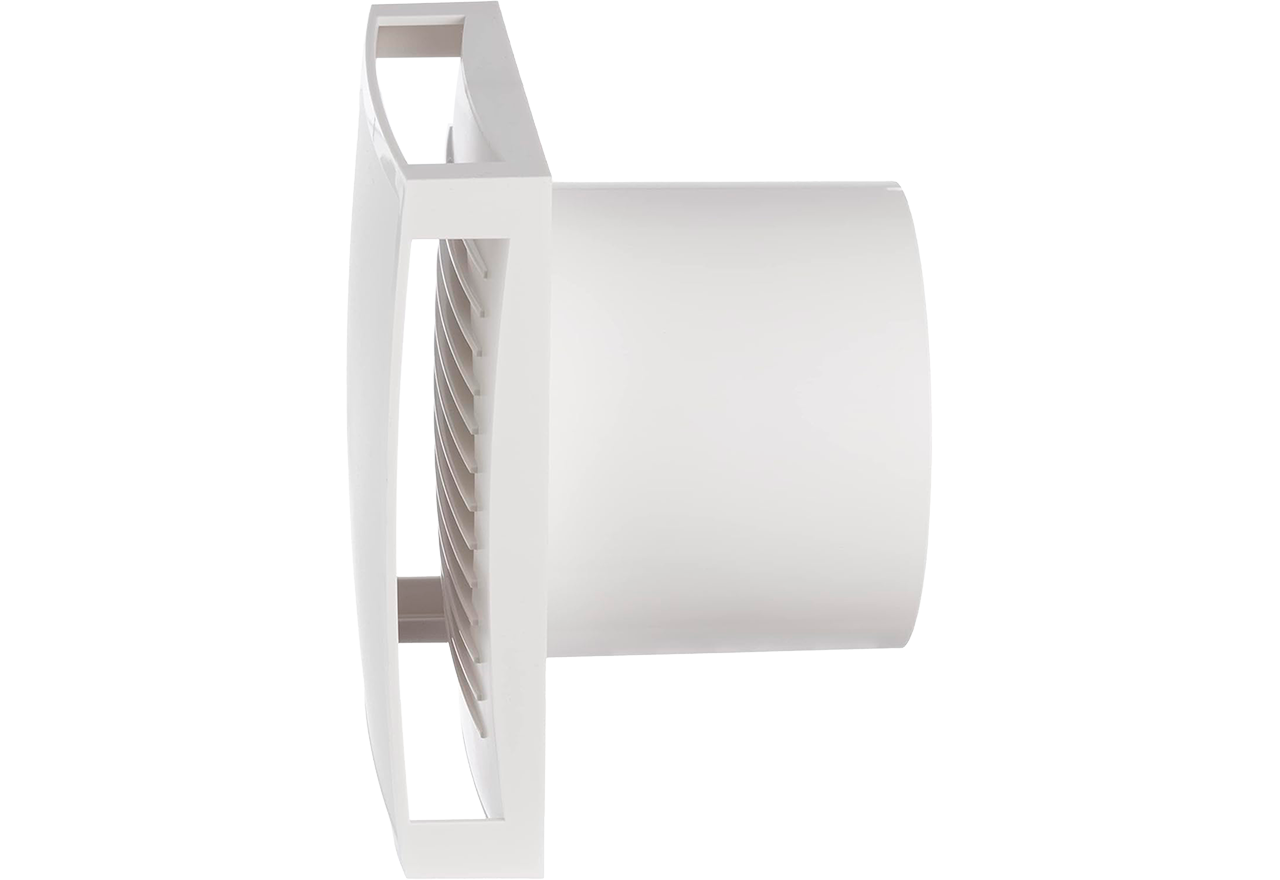

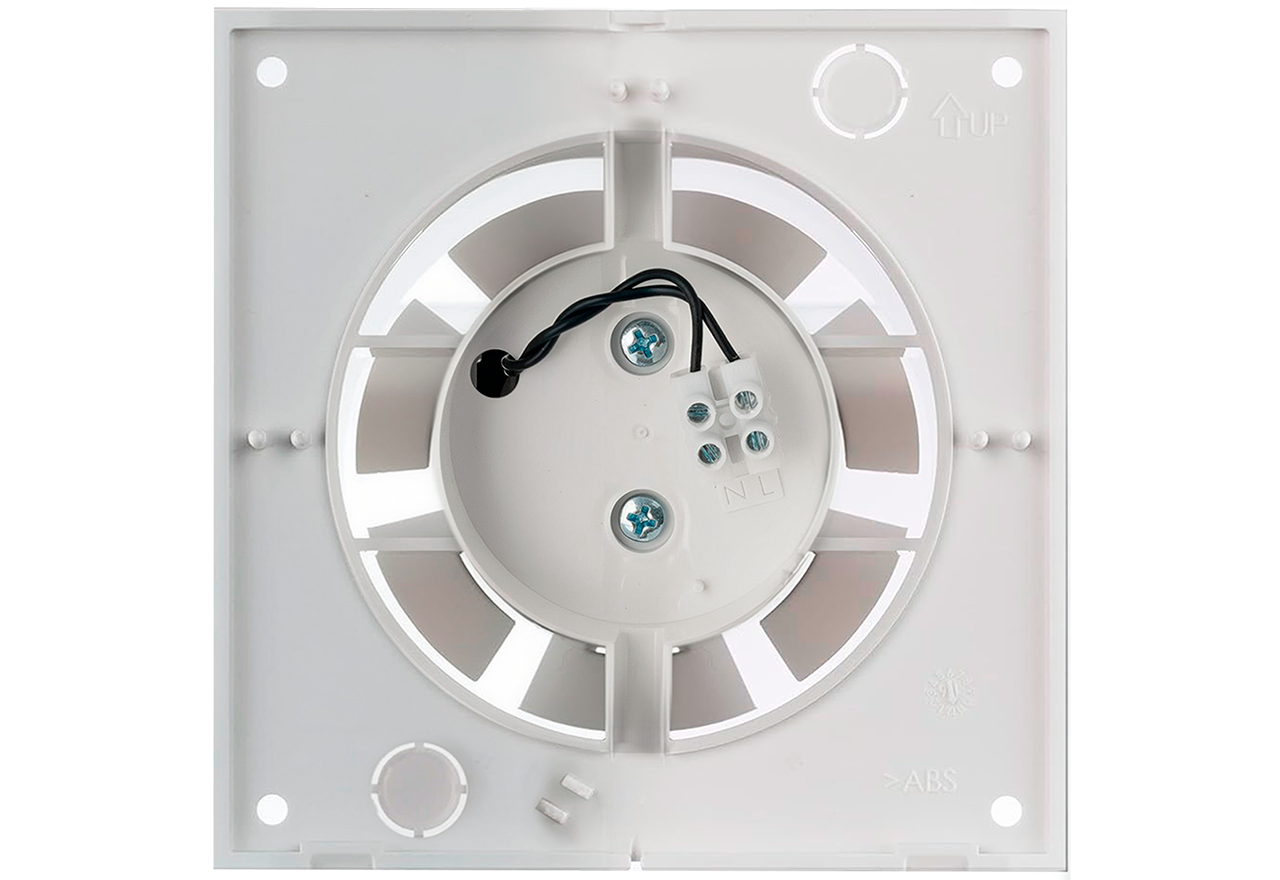

Design 100 – White
200.50.3001.2
Design 100 in white is a simple and discreet fan – ideal for daily ventilation in small rooms.
Color
Options
Compact and elegant bathroom fan
The Thermex Design 100 in white is a simple and efficient bathroom fan with a closed front, developed for modern homes. It is part of the THERMEX AIR series and offers reliable ventilation without the use of sensors or automation.
The fan is operated manually – for example via a light switch – and is suitable for installation in both new builds and renovation projects where a clean and user-friendly solution is desired. The closed white front contributes to a calm and harmonious look in the bathroom.
Features:
Manual operation – no automation

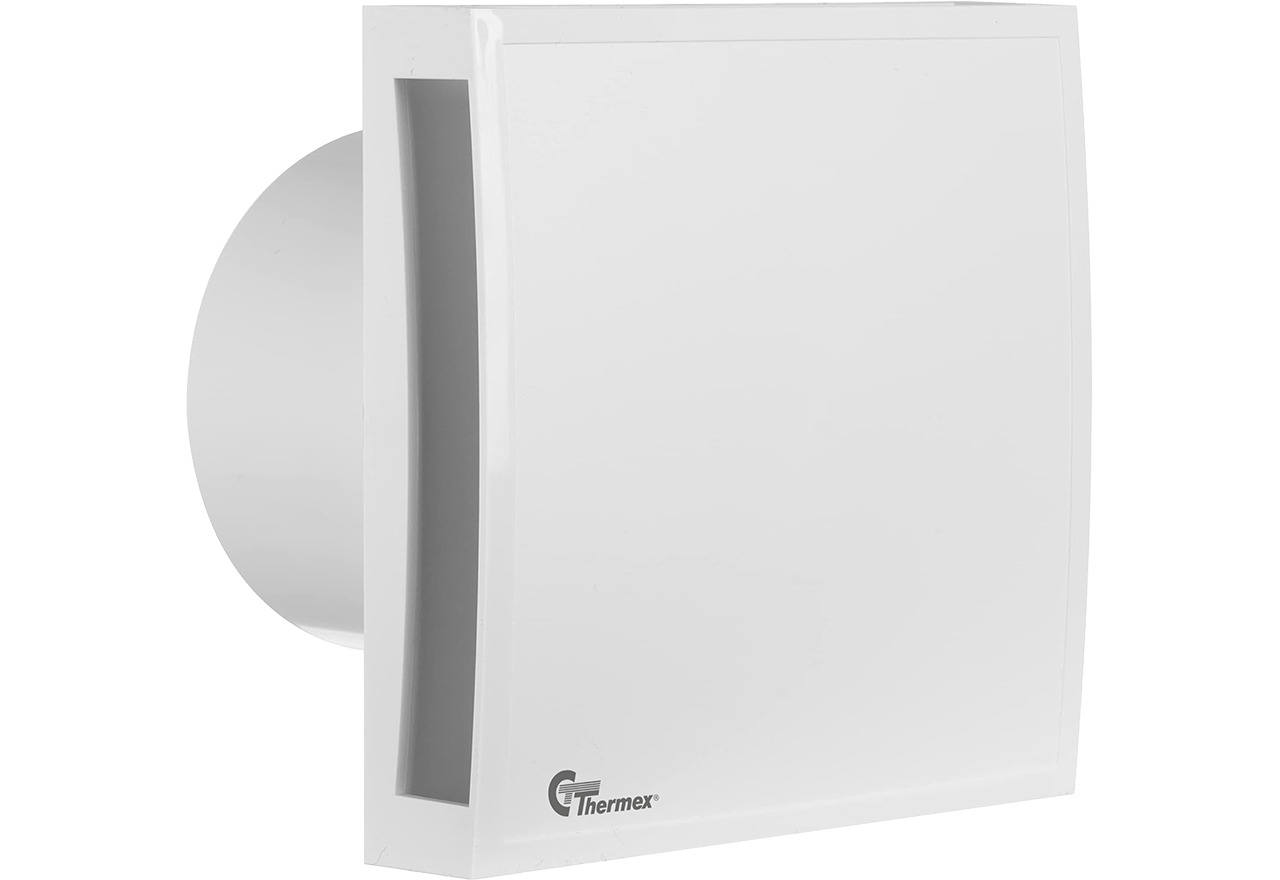

Closed front design in white
Low noise level and low energy consumption
Fits Ø100 mm ventilation ducts
Technical specifications:
Voltage: 230 V ~ 50 Hz
Power consumption: 15 W
Airflow: 100 m³/h
Sound pressure: 32 dB(A) at 3 metres
Speed: 2550 RPM
IP rating: IPX4
Insulation class: B
Operating temperature: 5 °C to 40 °C
Dimensions (HxWxD): 140 x 140 x 96 mm
Duct connection: Ø100 mm
Design 100 – White is ideal if you want a classic and discreet ventilation solution with a clean and timeless appearance.
- Manual control – on/off via switch

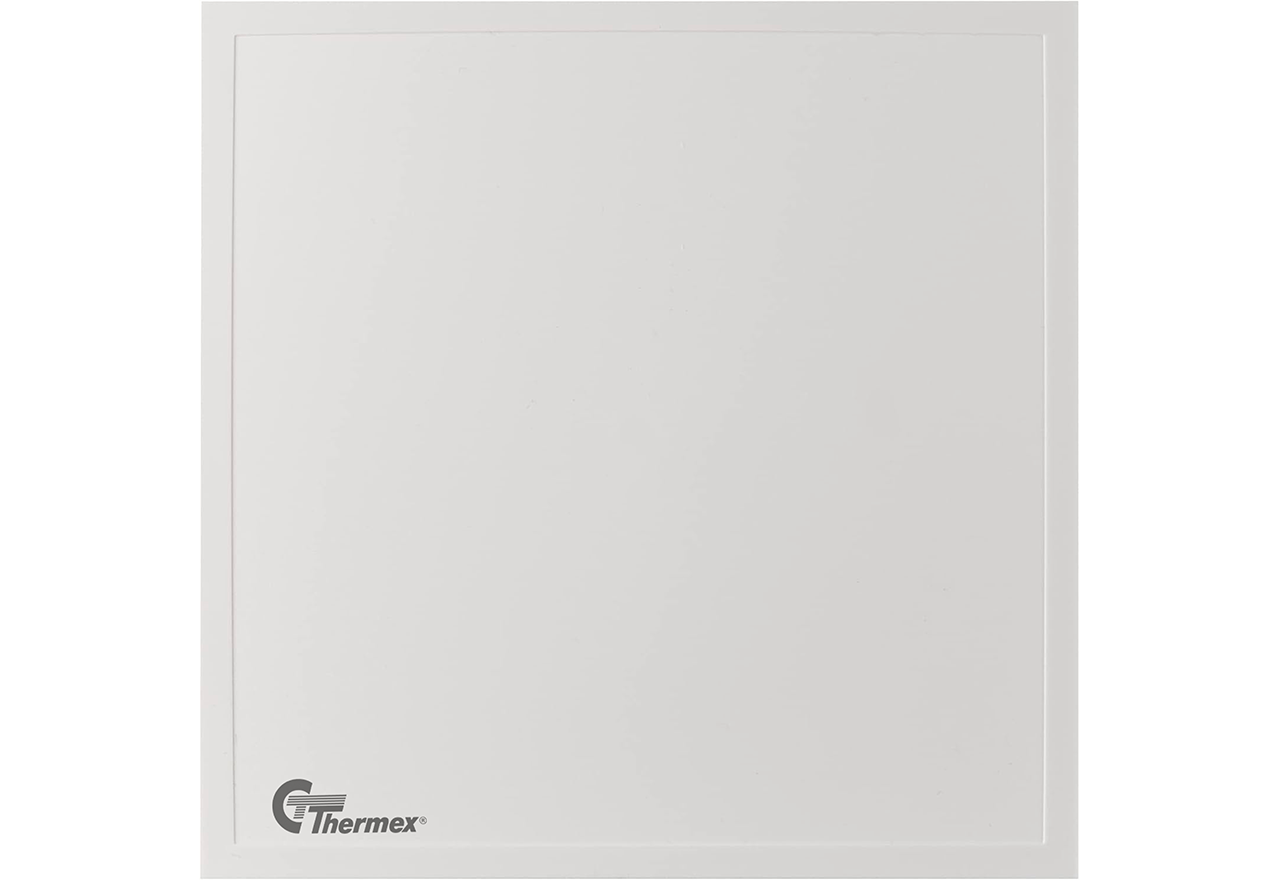

- Closed front panel in white
- Low noise level: 32 dB(A)
- Low energy consumption: only 15 W
- Ø100 mm connection
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
15
Luftmængde ved 0 Pascal [m3/t]
100
Kapslingsklasse
IPX4
Control
None
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
145
Maximum depth [mm]
115
Maximum height [mm]
145
Aftræksdimension (mm)
Ø100
Packaging width(mm)
159
Packaging depth [mm]
120
Packaging height(mm)
156
Net weight [kg]
0.43
Weight
0.54
Features
Control
None
Timer funktion
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
15
Kapslingsklasse
IPX4
Luftmængde ved 0 Pascal [m3/t]
100
Maximum sound pressure at 3 meters [dB(A)]
32
Voltage [V]
230
Other specifications
EAN
5703347206436
BodyColor
White
Material
Plastic
Max air temperature (° C)
40
Fan speed [rpm]
2550
