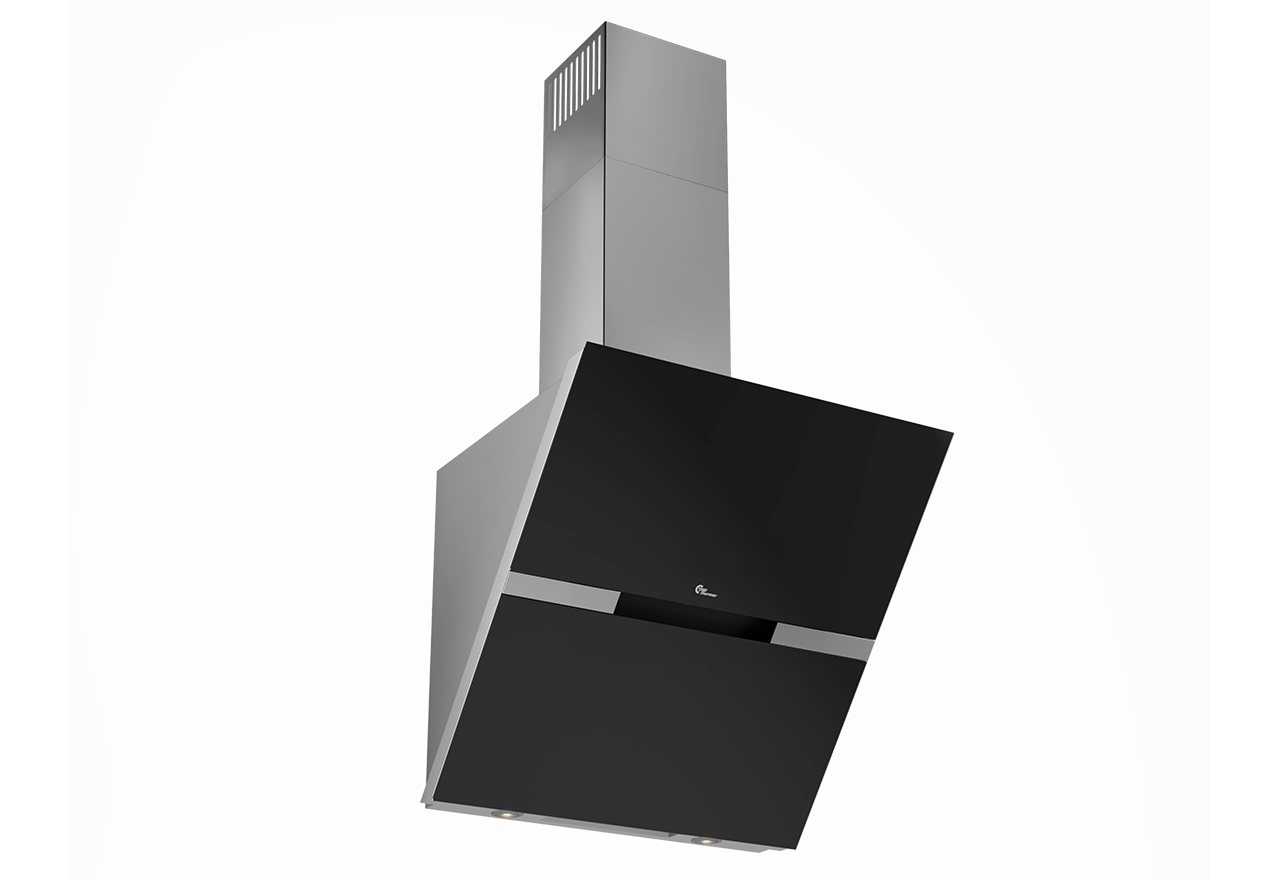

Preston Lux 600 mm
540.23.2168.2
Width
Specifications
Minimum airflow [m3/h]
175
Minimum-Soundpower [dB(A)]
41
Maximum-airflow [m3/h]
475
Maximum-Soundpower [dB(A)]
61
Airflow with boost [m3/h]
660
Soundpower boost [dB(A)]
68
Control
Remote control
Material
Stainless steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
485
Maximum height [mm]
1430
Vent pipe width (mm)
255
Vent pipe max height (mm)
980
Vent pipe min height (mm)
480
Minimum length vent pipe cutdown [mm]
510
Longer vent pipe length (mm)
1950
Outlet dimension (mm)
Ø150
Packaging width(mm)
660
Packaging depth [mm]
720
Packaging height(mm)
560
Net weight [kg]
23
Weight
26.5
Features
Control
Remote control
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
Yes
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes
Technical specifications
LE value [lux/W]
110
LE-class
A
EEI-class
A++
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
57.5
GFE-class
E
FDE-value
37.6
FDE-class
A
Energiforbrug standby (Ps) [W]
0.45
Motor Power [W]
160
Voltage [V]
230
Other specifications
EAN
5703347532016
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.23.0545.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
Yes
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Stainless steel and Black glass
