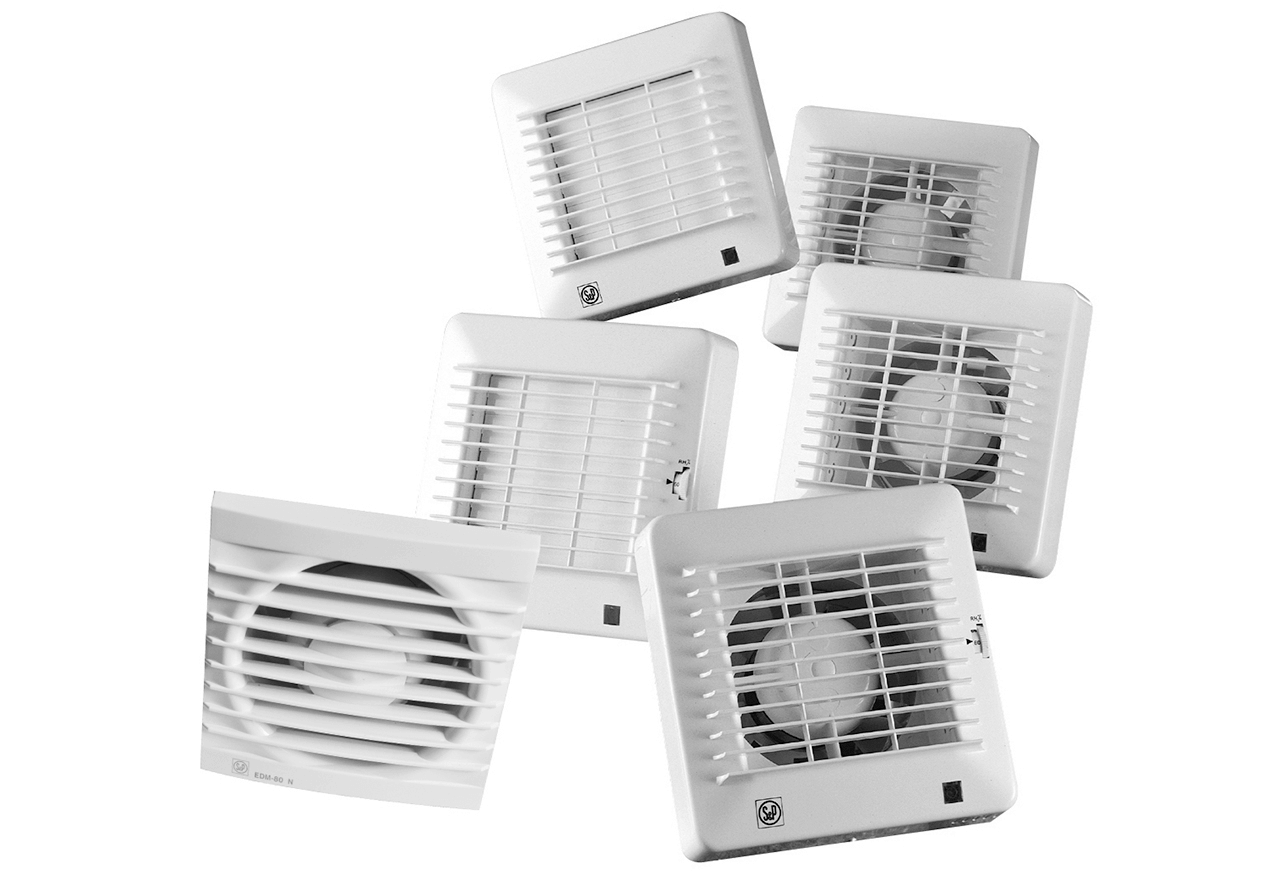

Thermex EDM 100 CHZM Scandic

200.34.2103.2
Thermex EDM 100 CHMZ is an intelligent bathroom fan with a built-in hygrostat, automatic shutter, and pull cord. Ideal for humidity control and easy installation on both walls and ceilings.
Options
Please select variant!

Thermex EDM 100 CHMZ is an advanced bathroom fan that combines efficient ventilation with practical features for optimal comfort and energy efficiency.

Features:
Built-in Hygrostat: The electronic hygrostat can be adjusted between 60-90% relative humidity and automatically activates the fan when the humidity level exceeds the set threshold.
Control Knob on Front Grille: Simple and easy adjustment directly on the fan.
Automatic Shutter: Louvers automatically close when the fan is not in use to prevent drafts.
Pull Cord: Makes it easy to manually turn the fan on and off.
Ball Bearings: Provide stable and long-lasting operation with minimal maintenance.
Indicator Light: Clearly shows when the fan is active.
Flexible Installation: Can be mounted on both walls and ceilings, making installation versatile and straightforward.

Specifications:
Connection: 230V
Energy Consumption: 13W
Airflow: 95 m³/h
Sound Level: 40 dB(A) at 3 meters
Double Insulated: For extra safety
Protection Class: IP44, ideal for bathroom environments
Material: Made of durable ABS plastic
Dimensions: 155 x 155 x 98 mm
Connection Pipe: Ø100

Thermex EDM 100 CHMZ is the perfect solution for those looking for a fan that automatically adjusts to the humidity level in the bathroom and ensures a better indoor climate.

  • Built-in hygrostat (60-90% adjustable) for humidity control
  • Automatic shutter and pull cord for flexible operation
  • Low noise level (40 dB), IP44-rated, easy installation

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IP44
Control
None
Material
Plastic
Voltage [V]
230

Moisture sensor

The humidity sensor is a smart function that enables the product to start automatically when the humidity (relative humidity) in the room is high. In the same way, it switches off again when the desired humidity is reached.

Cord pull

Cord pull is the classic and simple on/off function found in many fans. When you pull the cord, the fan turns on. And if you pull one more time, it turns off. Quite simple.

Automatic close

Automatic closing means that the product has built-in electronically closing slats. This ensures that there is a tight seal against cold and water from the outside.

Specifications

Energy consumption [W]
13
Luftmængde ved 0 Pascal [m3/t]
95
Kapslingsklasse
IP44
Control
None
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
155
Maximum depth [mm]
98
Maximum height [mm]
155
Aftræksdimension (mm)
Ø100
Packaging width(mm)
160
Packaging depth [mm]
105
Packaging height(mm)
163
Net weight [kg]
0.55
Weight
0.65

Features

Control
None
Eftersug
Nej
Fugtsensor
Ja

Technical specifications

Energy consumption [W]
13
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
95
Maximum sound pressure at 3 meters [dB(A)]
40
SEL-værdi
0
Voltage [V]
230

Other specifications

EAN
8413893059055
El-nummer
9978864324
VVS-nummer
353570126
BodyColor
White
Material
Plastic
Fan speed [rpm]
2450
