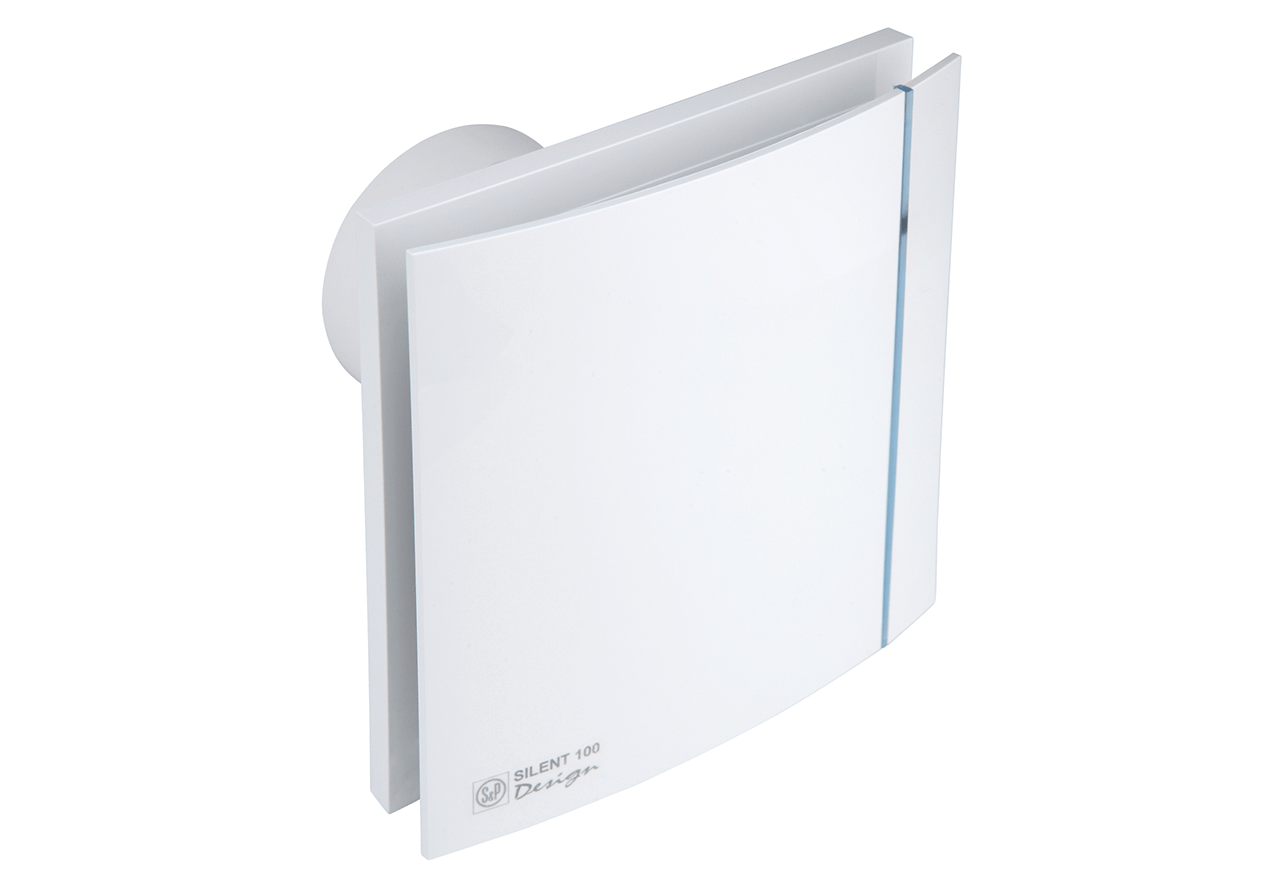

Thermex Silent 100 CZ - Design Scandic

200.34.3120.2
Thermex Silent 100 is a silent bathroom fan that can be supplied with a built-in hygrostat and electronic timer.
Options
Please select variant!

Quiet bathroom fan that can be supplied with a built-in hygrostat and electronic timer. Thermex Silent 100 Design Scandic is particularly suitable for toilets, bathrooms and other smaller rooms.

  • With built-in Hygrostat and adjustable timer
  • From 1 - 30 minutes after race.
  • "Super silent" only 26 dB(A)
  • High air volume
  • Good printing ability

Specifications

Energy consumption [W]
8
Luftmængde ved 0 Pascal [m3/t]
85
Kapslingsklasse
IP45
Control
None
Material
Plastic

Wind stop

Wind stops ensure that there is no draft when the product is not in operation. It is a simple damper that opens when the product is switched on and lets cold air out when the product is switched off.

Read more

Specifications

Energy consumption [W]
8
Luftmængde ved 0 Pascal [m3/t]
85
Kapslingsklasse
IP45
Control
None
Material
Plastic

Weight and measurements

Maximum width [mm]
188
Maximum depth [mm]
150
Maximum height [mm]
188
Aftræksdimension (mm)
Ø100
Packaging width(mm)
300
Packaging depth [mm]
350
Packaging height(mm)
200
Net weight [kg]
0.6
Weight
0.65

Features

Control
None
Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
8
Power supply [V]
230
Kapslingsklasse
IP45
Luftmængde ved 0 Pascal [m3/t]
85
Maximum sound pressure at 3 meters [dB(A)]
26,5
SEL-værdi
0

Other specifications

EAN
8413893328533
BodyColor
White
Material
Plastic
Fan speed [rpm]
2100

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings
