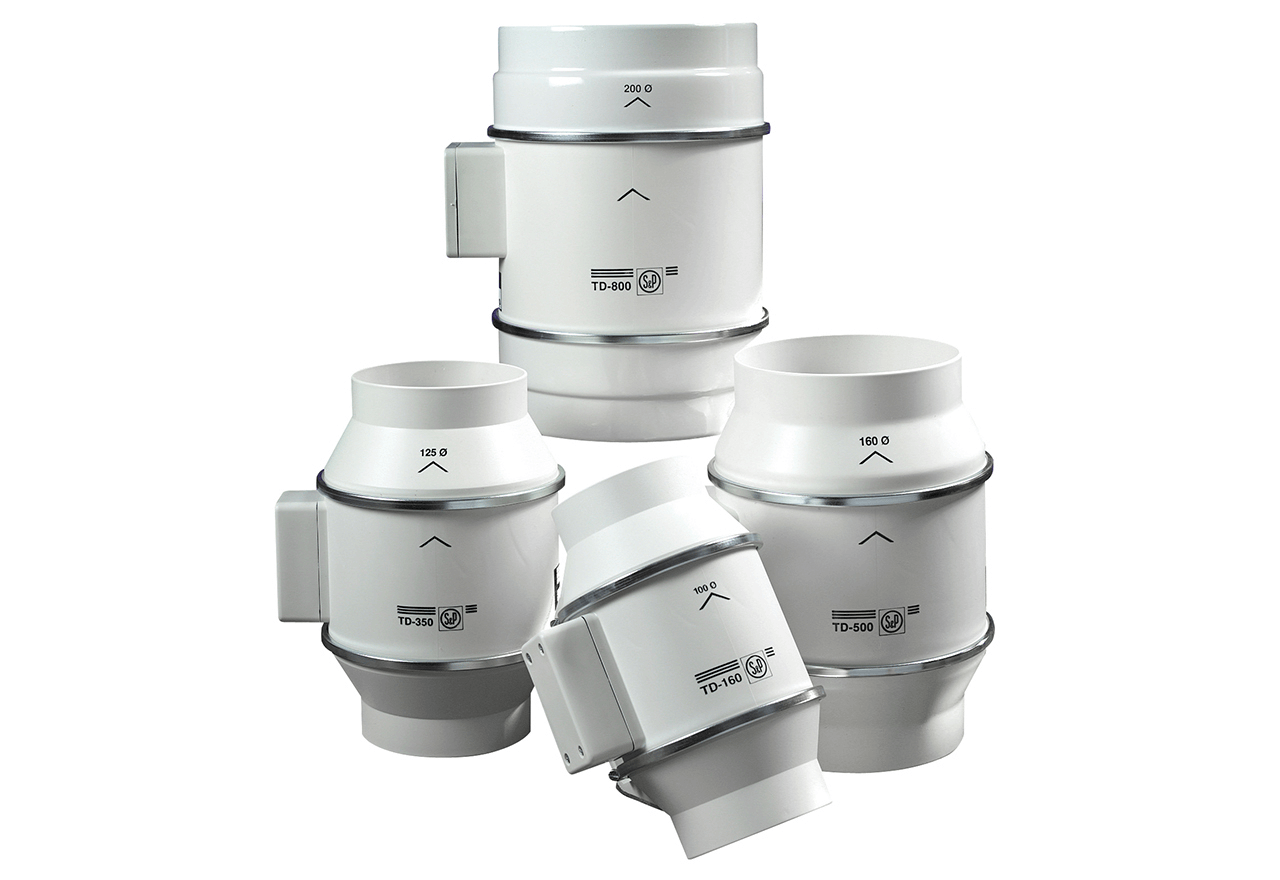

Thermex TD 160/100 Scandic
210.34.3216.2
Compact duct fans that are quiet and efficient.
Connection diameter
Options
Compact duct fans that are quiet and efficient. The TD series is intended for insertion into ducts or flexible hoses. The TD series can be disassembled for cleaning without removing the duct or flex hose.
The TD series is particularly suitable for mounting on the ceiling for extraction from the toilet or bath.
Specifications
Energy consumption [W]
29
Luftmængde ved 0 Pascal [m3/t]
180
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Control
None
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
29
Luftmængde ved 0 Pascal [m3/t]
180
Kapslingsklasse
IP44
Minimum sound pressure at 3 meters [dB(A)]
24
Control
None
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
232
Maximum depth [mm]
151
Maximum height [mm]
136
Aftræksdimension (mm)
Ø100
Packaging width(mm)
250
Packaging depth [mm]
195
Packaging height(mm)
430
Net weight [kg]
1.5
Weight
1.6
Features
Control
None
Eftersug
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
29
Kapslingsklasse
IP44
Luftmængde ved 0 Pascal [m3/t]
180
Minimum sound pressure at 3 meters [dB(A)]
24
Maximum sound pressure at 3 meters [dB(A)]
24
Rumtemperatur (°C)
40
Voltage [V]
230
Other specifications
EAN
8413893097750
BodyColor
White
Material
Plastic
Fan speed [rpm]
2400
Rumtemperatur (°C)
40
Downloads
Here you will find all documents relevant to this product
