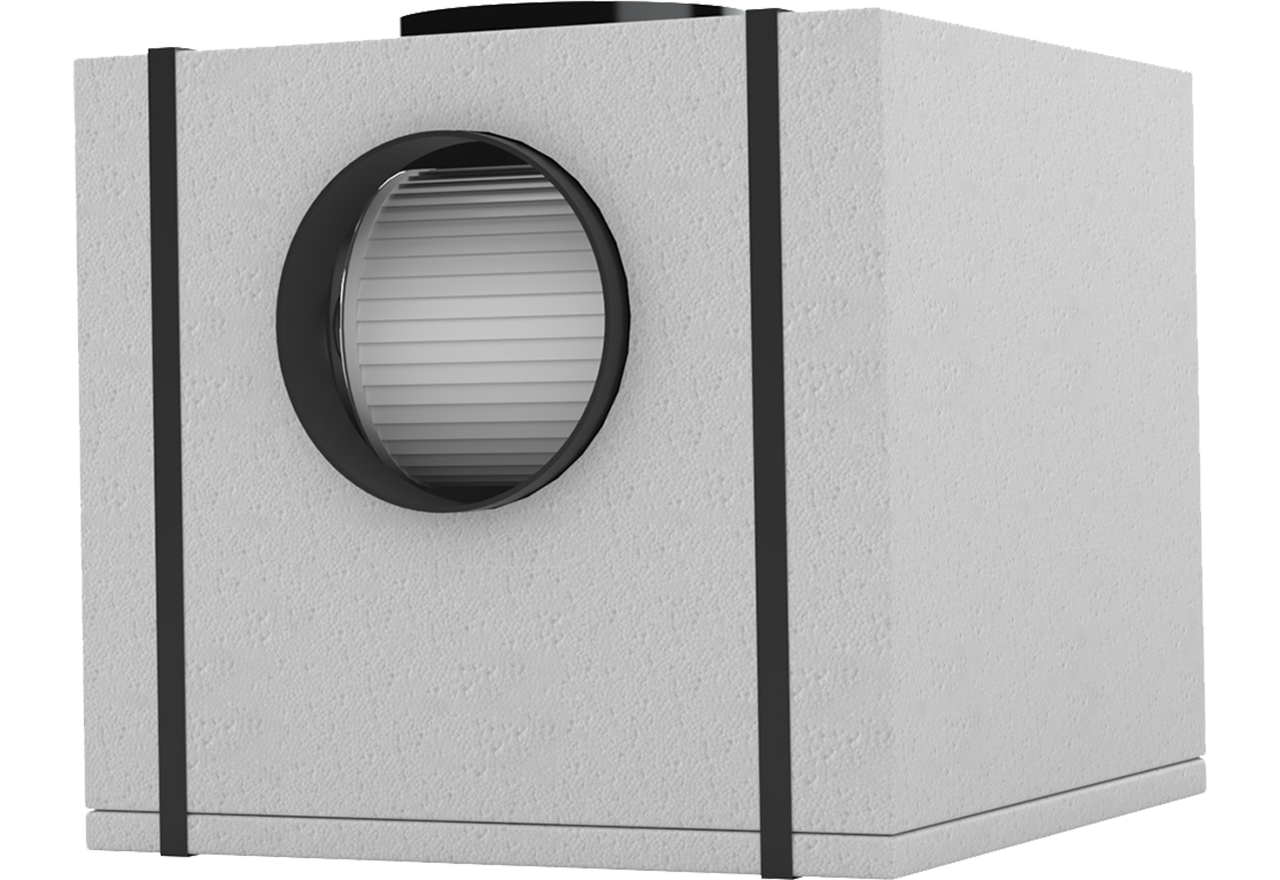

External TX II motor, ceiling
225.19.1200.2
Powerful and quiet motor for placement on the ceiling
External TX motor is available in two variants, namely as external TX motor, wall and external TX II motor, ceiling. External TX motor, wall supplied with weather resistant stainless steel jacket. External TX II motor, ceiling supplied with condensation and insulation box for installation in the ceiling. Remember to insulate the flue from condensation if it is led through unheated rooms. Powerful and pressure resistant. Specially designed to move the air volume over longer distances.
- Powerful and pressure resistant
- High performance
- Sound and condensation isolated
Specifications
Energy consumption [W]
374
Luftmængde ved 0 Pascal [m3/t]
810
Weight and measurements
Maximum width [mm]
373
Maximum depth [mm]
373
Maximum height [mm]
335
Outlet dimension (mm)
Ø150
Packaging width(mm)
400
Packaging depth [mm]
390
Packaging height(mm)
400
Net weight [kg]
7.5
Weight
9.5
Features
Wi-Fi
No
Technical specifications
Energy consumption [W]
374
Power supply [V]
230
Luftmængde ved 0 Pascal [m3/t]
810
Other specifications
EAN
5703347529856
BodyColor (RAL)
0
