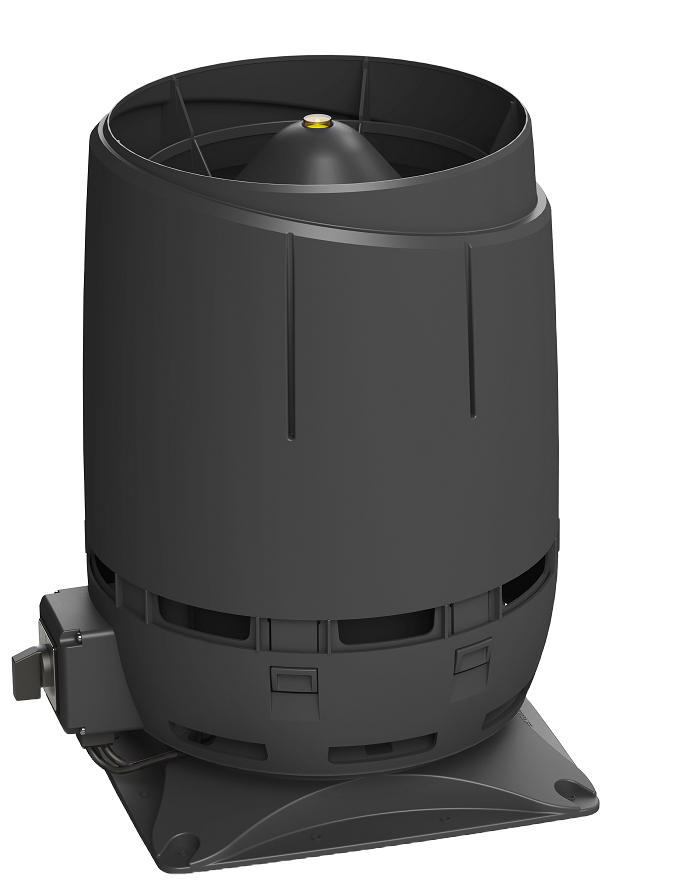

Flow ECo 160S
240.40.0134.0
With 20 years warranty on technical parts and 10 years color fastness, Flow Eco 160S is the ideal roof fan. Easy installation and enjoy a safe and efficient indoor climate!
Roof slope
Flow Eco 160S is a top-quality roof fan, delivered with impressive warranties - 20 years warranty on technical parts and 10 years warranty on color fastness from the manufacturer. This roof fan is designed for easy and waterproof installation, where rainwater is safely drained down along the side of the fan via built-in drains.
Flow Eco 160S is intended for installation on flat roofs. A galvanized steel roof foundation can be purchased for installation on asphalt roofs.
It can be connected to all Thermex range hoods without a motor. However, some require the purchase of a Thermex AC/DC converter. But all range hoods with Thermex Voicelink require no additional purchases. Contact the sales department if in doubt.
Specifications:
Airflow: Up to 947 m3/h
Color: Black (RAL 9005)
Motor: EC with 0-10V control
Power Consumption: 85W
Revolutions: 2580 rpm
Voltage: 230V
The package includes the roof fan, screws, and an installation, usage, and maintenance manual, ensuring easy setup and long-term effectiveness. Flow Eco160S is your reliable partner for ventilation, ensuring a comfortable indoor climate with minimal maintenance.
- Powerful EC motor and easy installation make ventilation seamless
- Up to 20 years technical warranty and 10 years color fastness ensure peace of mind and reliability
- Can be connected to all Thermex range hoods without a motor
Specifications
Energy consumption [W]
85
Luftmængde ved 0 Pascal [m3/t]
947
Control
Rotary knob
Material
Plastic
Voltage [V]
230
Specifications
Energy consumption [W]
85
Luftmængde ved 0 Pascal [m3/t]
947
Control
Rotary knob
Material
Plastic
Voltage [V]
230
Weight and measurements
Maximum width [mm]
310
Maximum depth [mm]
310
Maximum height [mm]
438
Aftræksdimension (mm)
Ø160
Packaging width(mm)
304
Packaging depth [mm]
304
Packaging height(mm)
490
Net weight [kg]
5.3
Weight
6
Features
Control
Rotary knob
Timer funktion
Nej
Fugtsensor
Nej
Technical specifications
Energy consumption [W]
85
Luftmængde ved 0 Pascal [m3/t]
947
Maximum sound pressure at 3 meters [dB(A)]
70,1
Voltage [V]
230
Other specifications
EAN
5703347206375
BodyColor
Black
Material
Plastic
SupplyCord (m)
2
Fan speed [rpm]
2580
Downloads
Here you will find all documents relevant to this product
