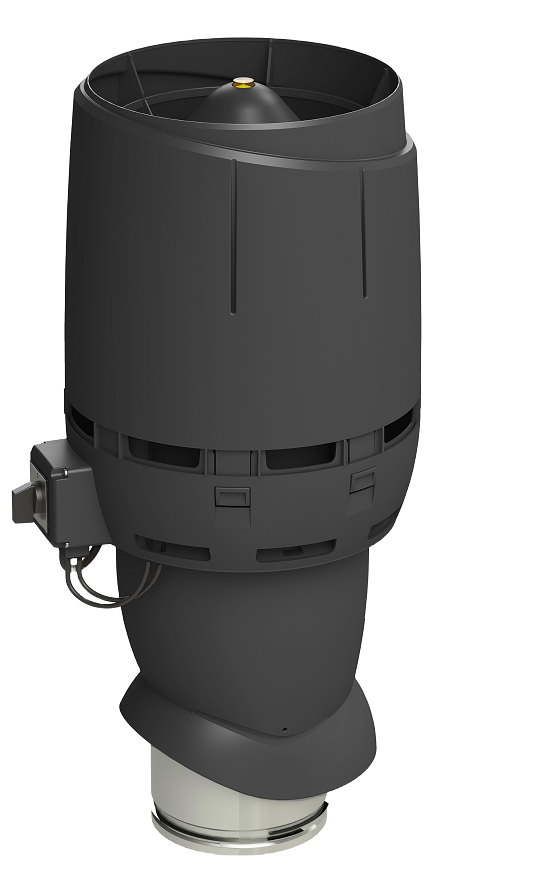

Flow ECo 160P

240.40.0133.0
With 20-year warranty on technical parts and 10-year color warranty, ECoFlow 160P is the ultimate roof fan for any roof. Easy to install, enjoy a safe and efficient indoor climate!
Roof slope
Please select variant!
ECoFlow 160P is a high-quality roof fan, backed by impressive warranties - 20-year warranty on technical parts and 10-year warranty on color from the manufacturer. Designed for easy and waterproof installation, where rainwater is safely drained along the side of the fan.

ECoFlow 160P is intended for installation on pitch roofs and is compatible with nearly all roof types. Pass-throughs for various roof types must be purchased separately.

The product comes with a galvanized steel inner pipe with a diameter of Ø160. It can be connected to all Thermex range hoods without a motor. However, some require the purchase of a Thermex AC/DC converter. All range hoods with Thermex Voicelink require no additional purchases. Contact the sales department if in doubt.

Specifications:

Color: Black (RAL 9005)
Motor: EC with 0-10V control
Power Consumption: 85W
Revolutions: 2580 rpm
Voltage: 230V

The package includes the roof fan, screws, and a comprehensive installation, user, and maintenance manual, ensuring easy setup and long-term effectiveness. ECoFlow 160P is your reliable partner for ventilation, ensuring a comfortable indoor climate with minimal maintenance.
  • Powerful EC motor and easy installation make ventilation seamless
  • Fits almost all roof types for hassle-free installation
  • Up to 20-year technical warranty and 10-year color warranty ensure peace of mind and reliability

Specifications

Energy consumption [W]
85
Luftmængde ved 0 Pascal [m3/t]
947
Control
Rotary knob
Material
Plastic
Voltage [V]
230

Specifications

Energy consumption [W]
85
Luftmængde ved 0 Pascal [m3/t]
947
Control
Rotary knob
Material
Plastic
Voltage [V]
230

Weight and measurements

Maximum width [mm]
310
Maximum depth [mm]
310
Maximum height [mm]
692
Aftræksdimension (mm)
Ø160
Packaging width(mm)
792
Packaging depth [mm]
292
Packaging height(mm)
304
Net weight [kg]
6
Weight
7.2

Features

Control
Rotary knob
Eftersug
Nej
Fugtsensor
Nej

Technical specifications

Energy consumption [W]
85
Power supply [V]
230
Luftmængde ved 0 Pascal [m3/t]
947
Maximum sound pressure at 3 meters [dB(A)]
70,1
Voltage [V]
230

Other specifications

EAN
5703347206368
BodyColor
Black
Material
Plastic
SupplyCord (m)
2
Fan speed [rpm]
2580

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Exhaust fittings
