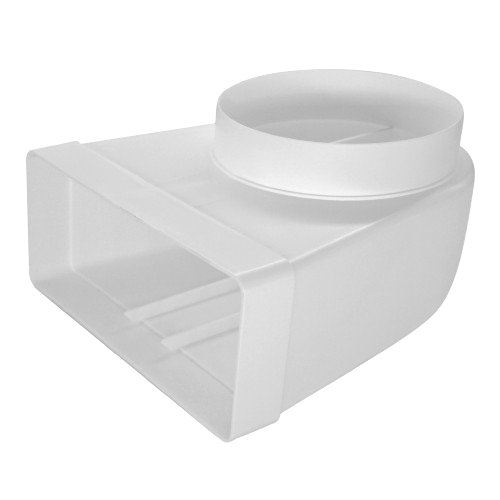

Bend 90° 220x90 mm - Ø150 mm
825.50.5961.9
Thermex ventilation ducts ensure efficient extraction for range hoods with rigid ducts that reduce pressure loss. The system is maintenance-free and easy to install with many fittings and duct pieces.
Transition and bend at 90 degrees in one fitting. From 220x90 flat duct to Ø150.
Product dimensions: 220x242x122 mm
The Thermex ventilation duct system is designed for efficient extraction for range hoods. With rigid ducts, pressure loss is significantly reduced compared to flexible hoses, ensuring optimal performance.
The system requires no maintenance and is made from durable white plastic that withstands temperatures from -5 to +60°C. It can be used for both traditional extraction and recirculation.
A wide range of fittings and duct pieces is available, allowing the installation to be adapted to most needs at an affordable price. Joints are sealed with tape.
- Reduced pressure loss with rigid ducts
- Maintenance-free and durable design
- Can be used for both extraction and recirculation
Specifications
Material
Plastic
Weight and measurements
Maximum width [mm]
220
Maximum depth [mm]
242
Maximum height [mm]
122
Packaging width(mm)
310
Packaging depth [mm]
230
Packaging height(mm)
250
Net weight [kg]
0.2
Weight
0.21
Other specifications
EAN
4750492024133
VVS-nummer
353579834
BodyColor
White
Material
Plastic
Downloads
Here you will find all documents relevant to this product
