Replacement air Ø125
536.99.1601.9
THERMEX DE-COMPRESSION VALVE Ø 125 MM, is the solution that automatically ensures replacement air when cookerhood is in function and vacuum inside kitchen is present.

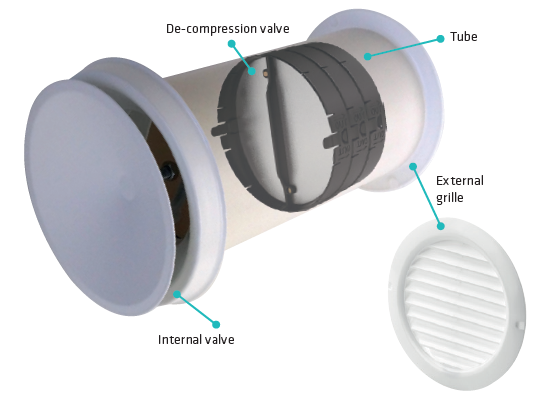

Drill a Ø 130 mm hole in the wall and place the tube inside the hole. Inside the tube place the de-compression valve from THERMEX. Inside place the valve and outside the grille.
Weight and measurements
Packaging width(mm)
300
Packaging depth [mm]
600
Packaging height(mm)
300
Net weight [kg]
3
Weight
3.3
Other specifications
EAN
5703347532566
Downloads
Here you will find all documents relevant to this product
