Thermex Kit E – Recirculation Kit for TXDDB
535.99.4002.9
Thermex Kit E is a complete recirculation kit for TXDDB, ensuring efficient airflow and easy installation. A simple solution with a complete pipe package—it doesn't get easier.

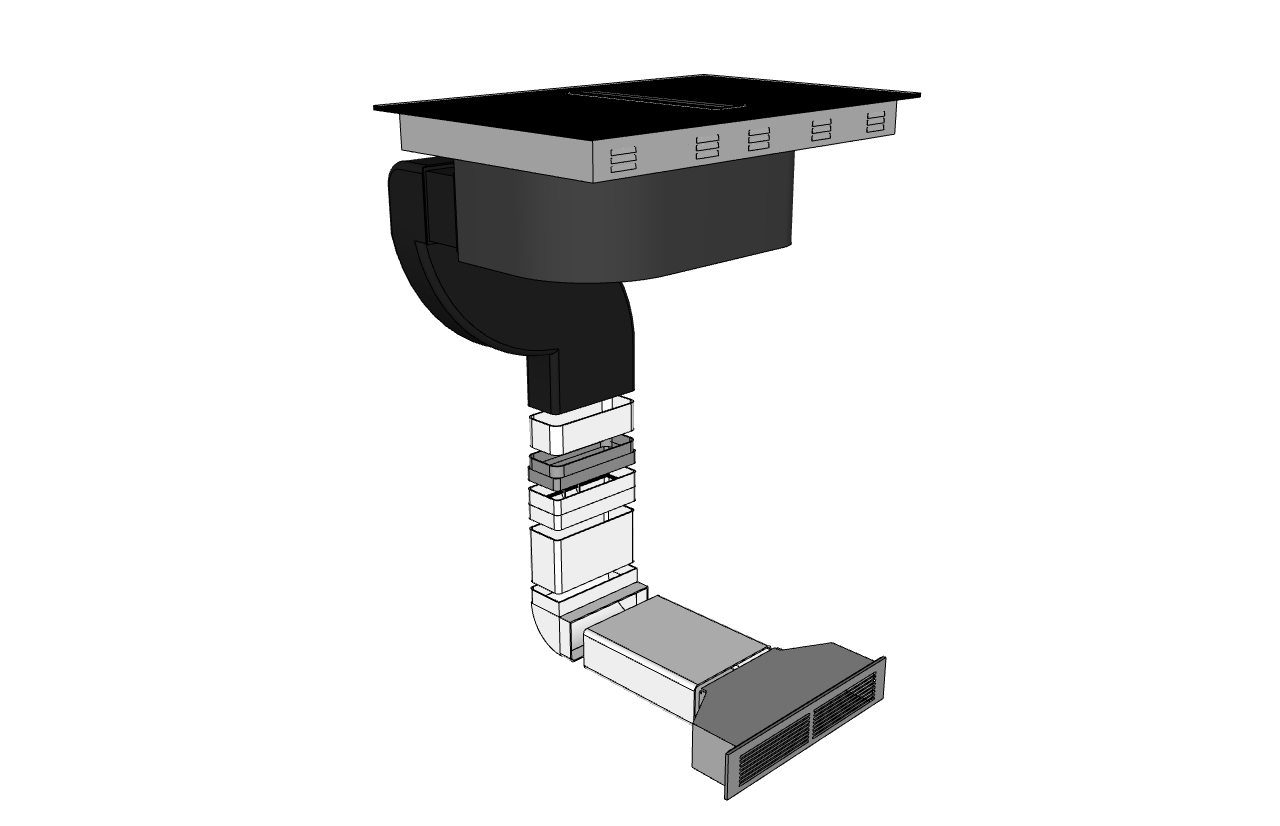

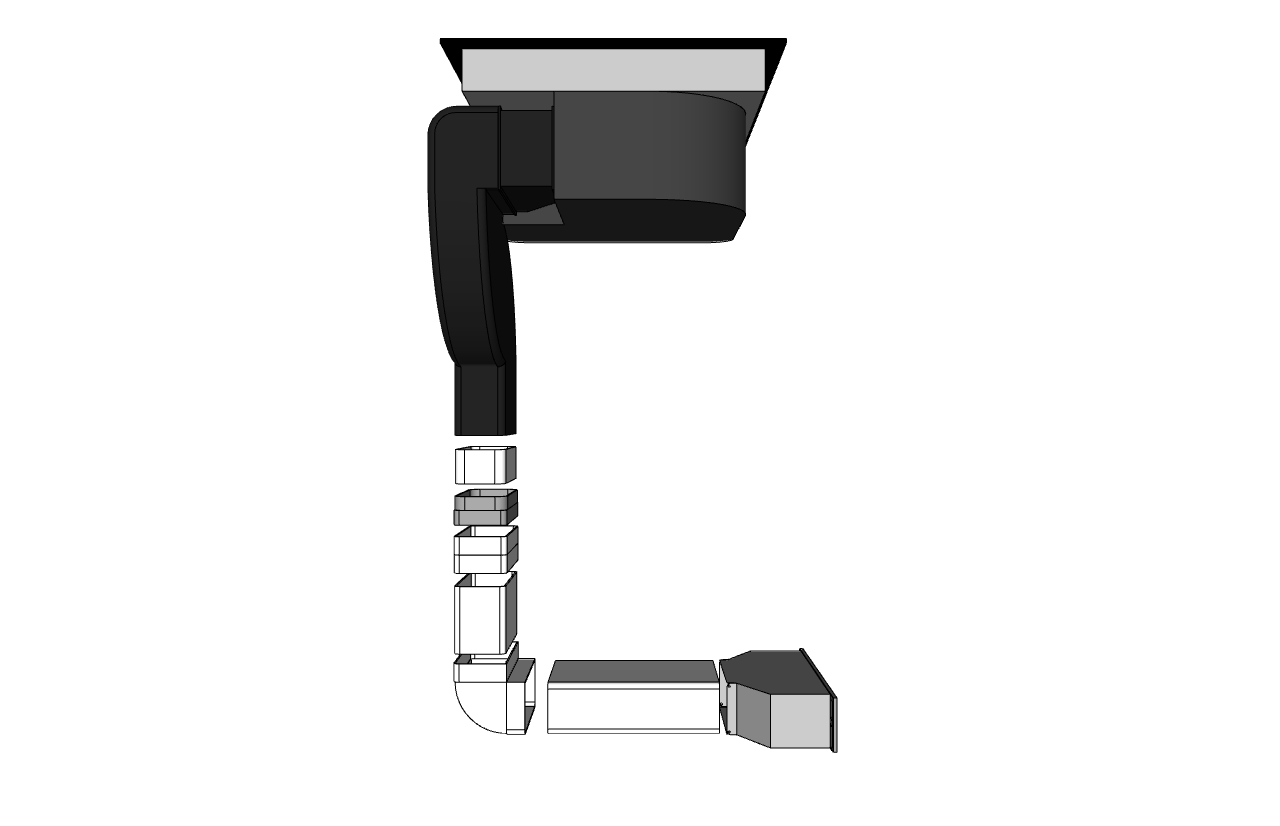

Kit E is a complete recirculation pipe kit, specifically designed for TXDDB. It ensures efficient airflow and easy installation for recirculation. The kit is specially designed for the TXDDB cooktop, providing high performance through the large 220x90 mm duct.
Features
Flexible filter solution compatible with long-life and ceramic filter sets mounted in the hood
Efficient airflow through rigid ducts that minimize resistance and enhance performance
Robust materials with ducts in white plastic, galvanized base grille, and stainless steel front grille
Easy assembly ensured by simple-to-install components and sealing material for effortless installation
Kit contents:
Duct piece 222x89 mm L 80 mm
Adapter 222x89 mm to 220x90 mm
Connector 220x90 mm
Flat duct 220x90 mm L 500 mm
Reducer 220x90 mm to 220x55 mm
Flat duct 220x55 mm L 500 mm
Vertical bend 220x55 mm
Plinth grille without carbon filter
Tape for sealing joints

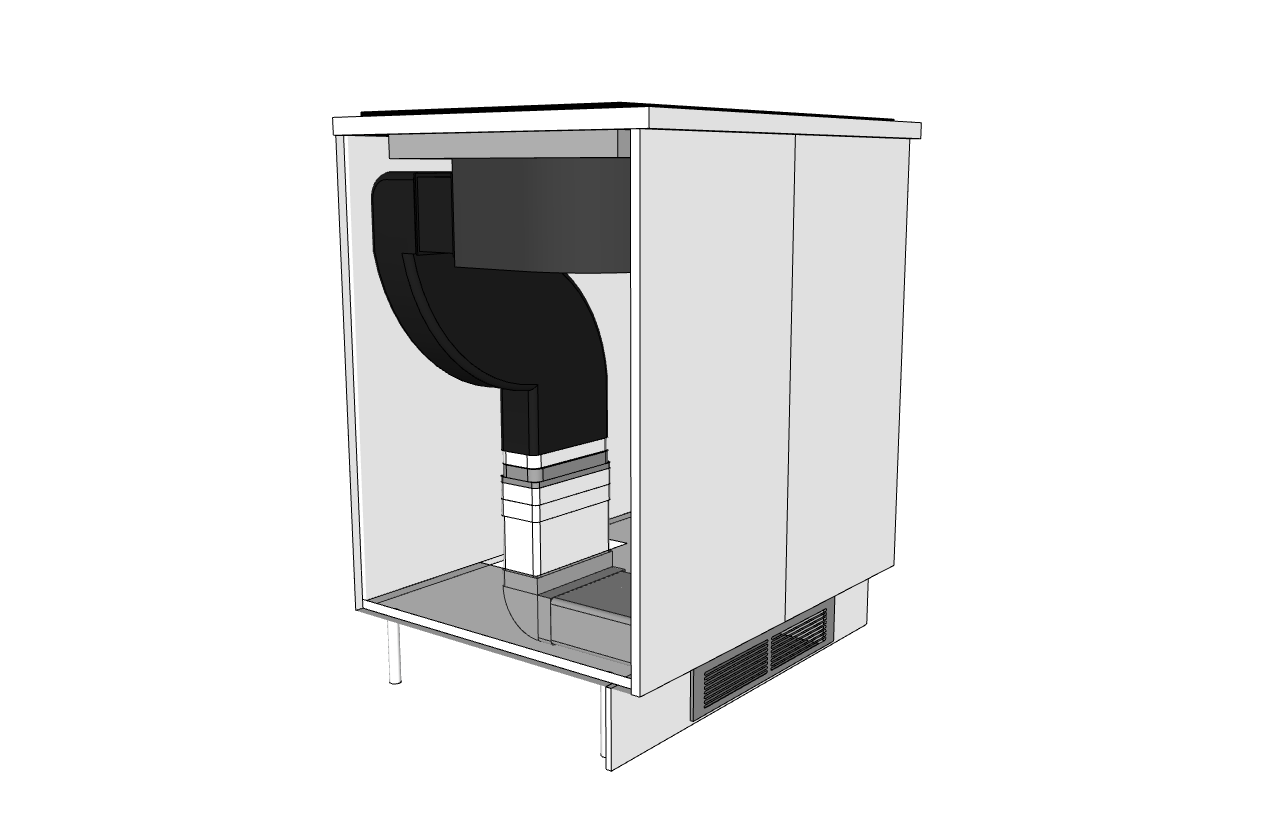

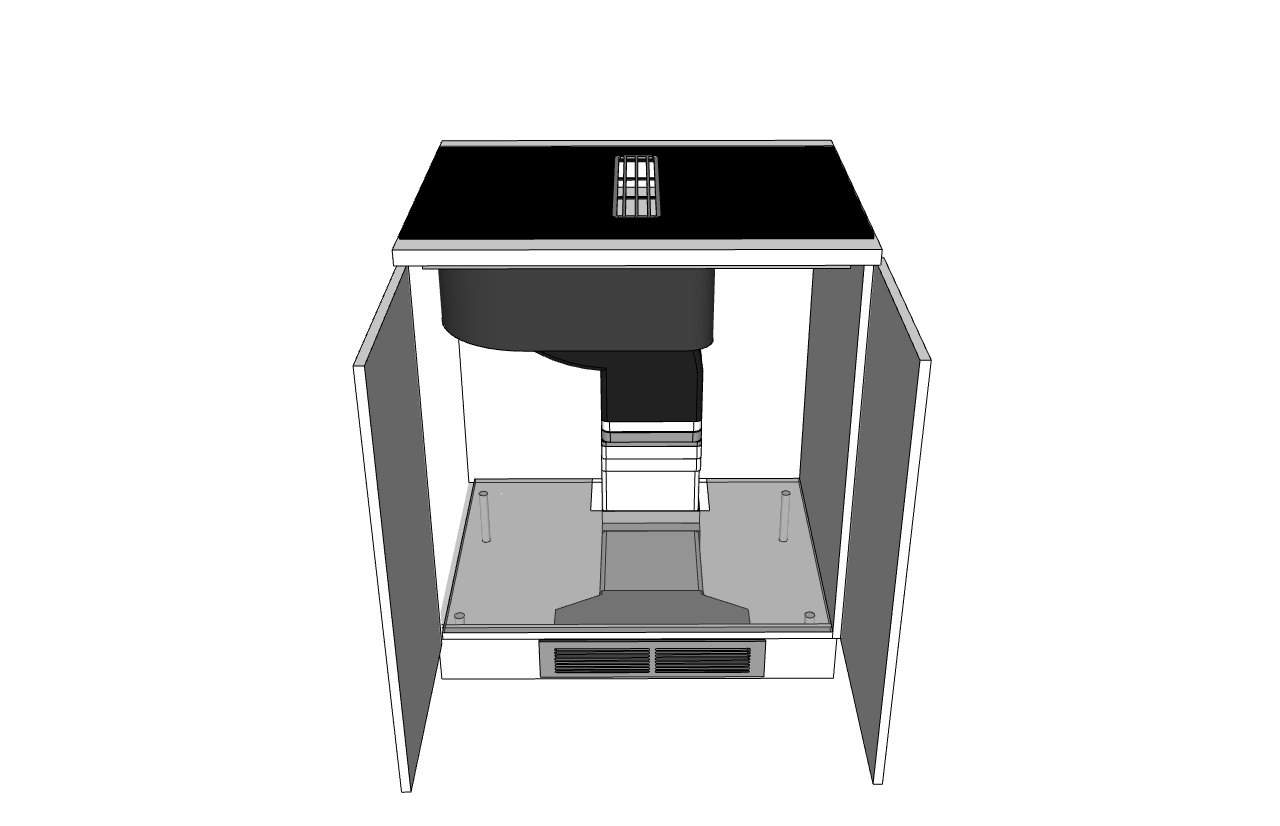

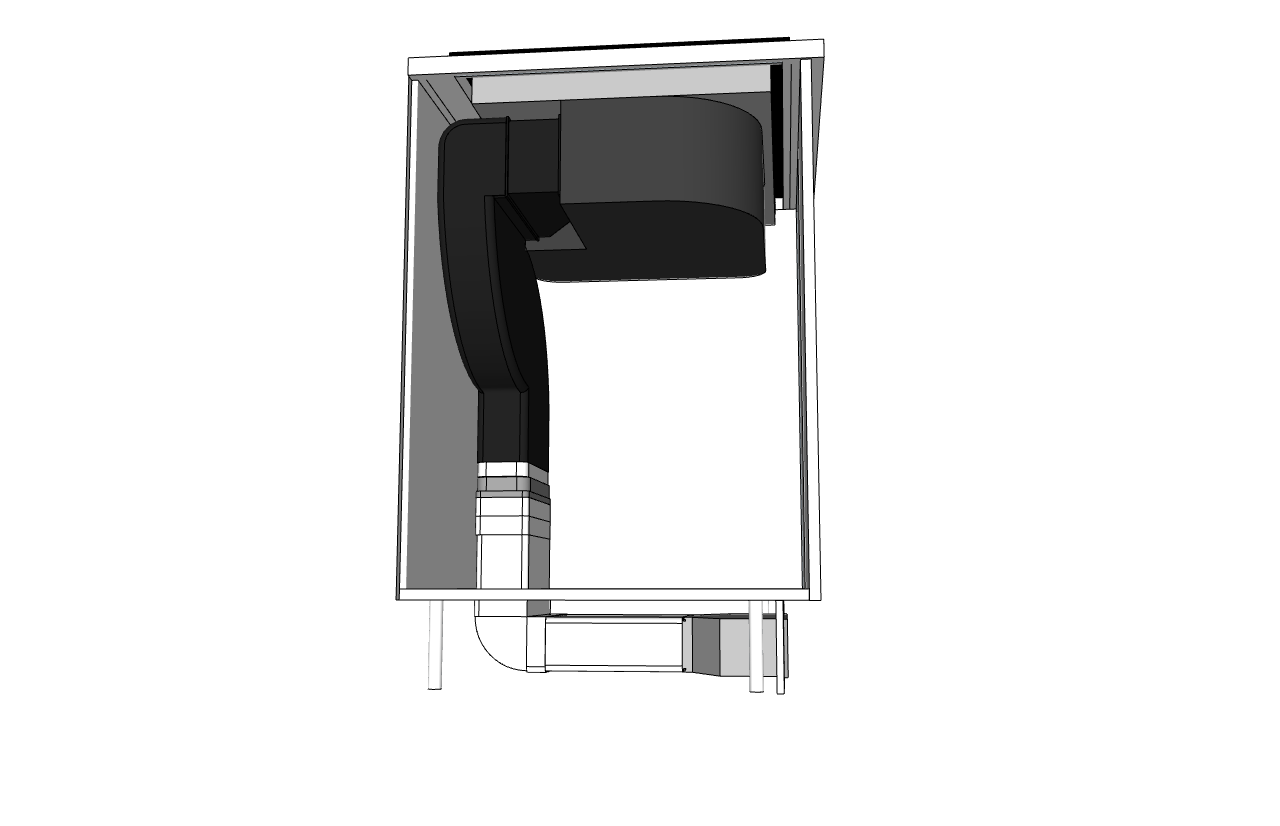

A practical solution for an efficient and discreet recirculation installation
- Specially designed for TXDDB
- Flexible filter solution for long-life or ceramic filter sets
- Efficient airflow with rigid ducts for minimal resistance
- Durable materials in plastic, galvanized steel, and stainless steel
- Easy installation with included sealing materials
Specifications
Material
Stainless steel
Weight and measurements
Maximum width [mm]
455
Maximum depth [mm]
500
Maximum height [mm]
90
Packaging width(mm)
540
Packaging depth [mm]
455
Packaging height(mm)
250
Net weight [kg]
3.82
Weight
4.52
Other specifications
EAN
5703347534560
BodyColor
Stainless steel
Material
Stainless steel
