Thermex Kit F – Exhaust Kit for TXDDB
535.99.4003.9
Thermex Kit F is a complete exhaust kit specially designed for TXDDB, ensuring optimal airflow and protection against wind and rain. A simple solution containing all the necessary equipment for a quick and professional installation.

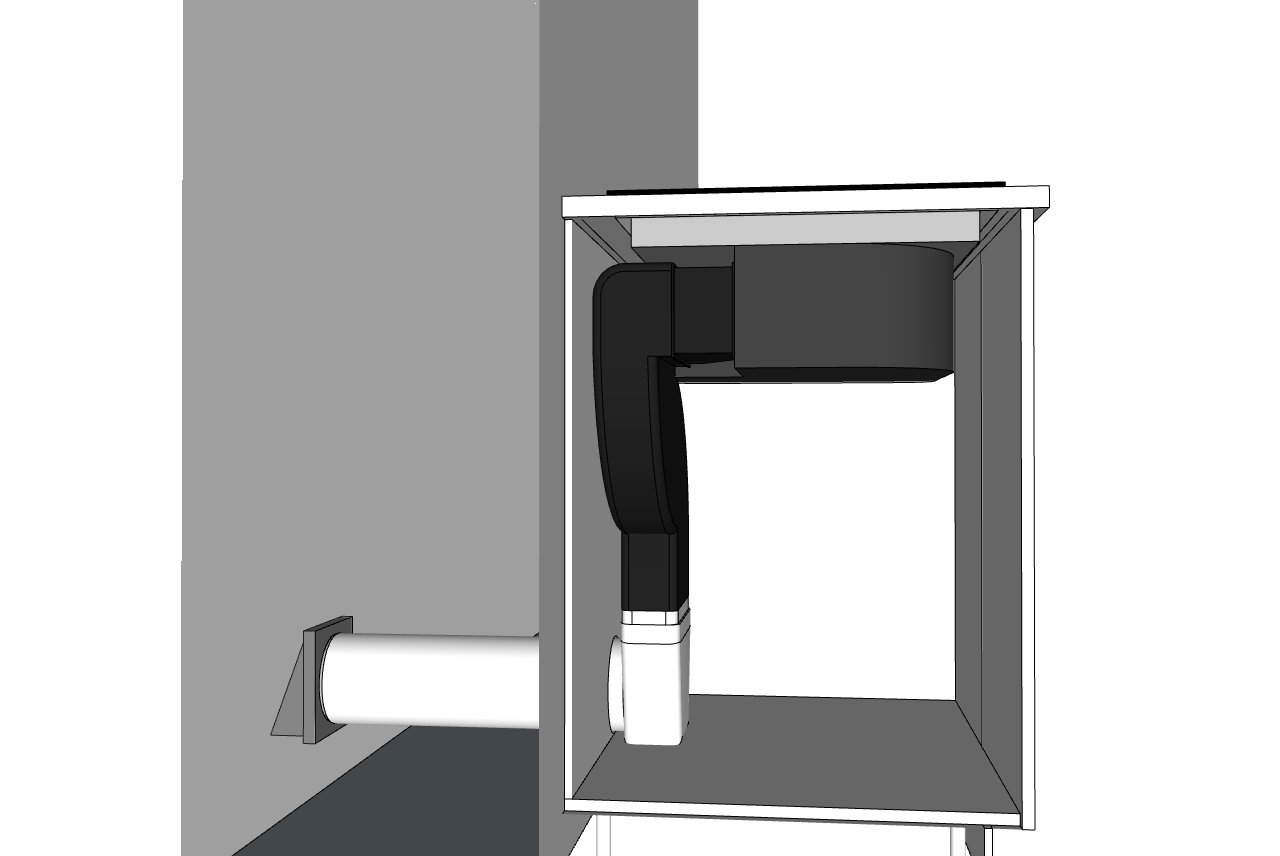

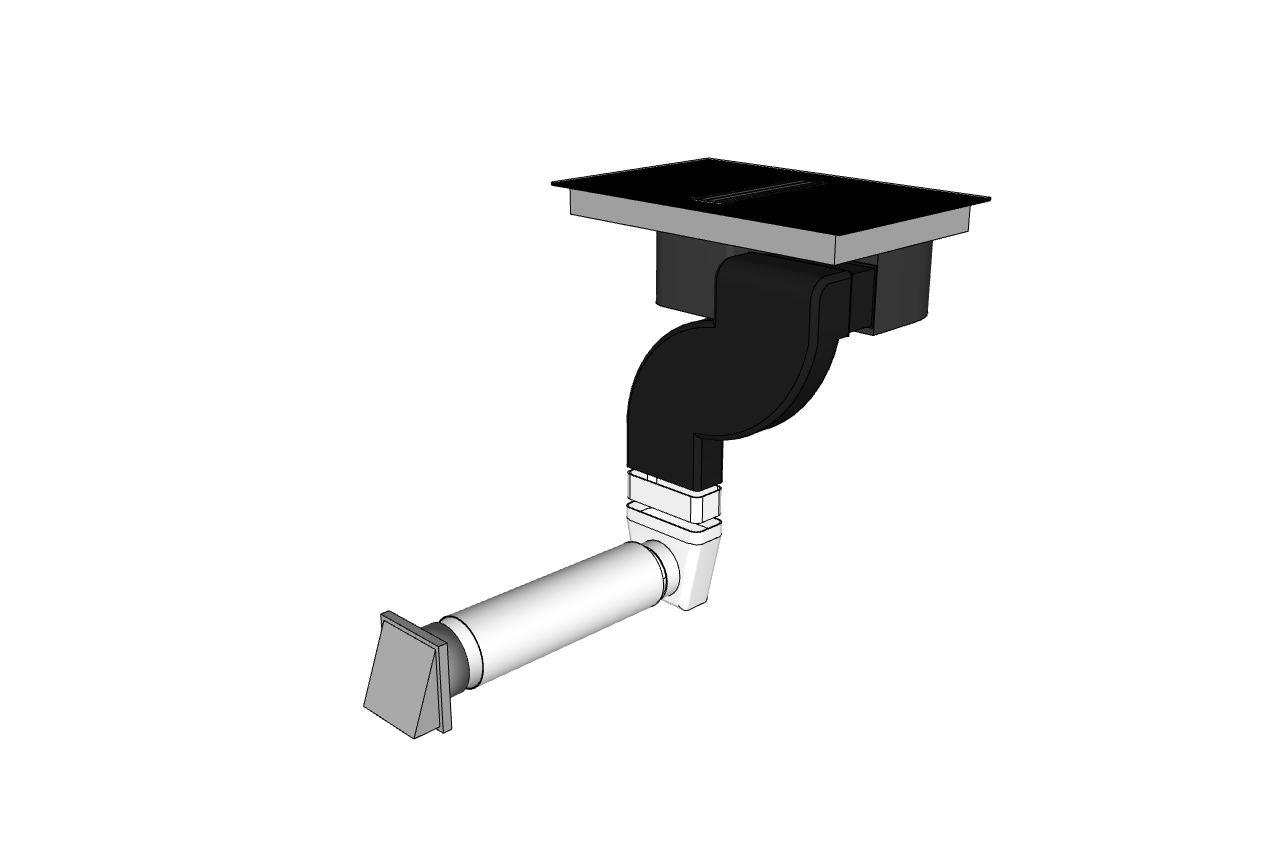

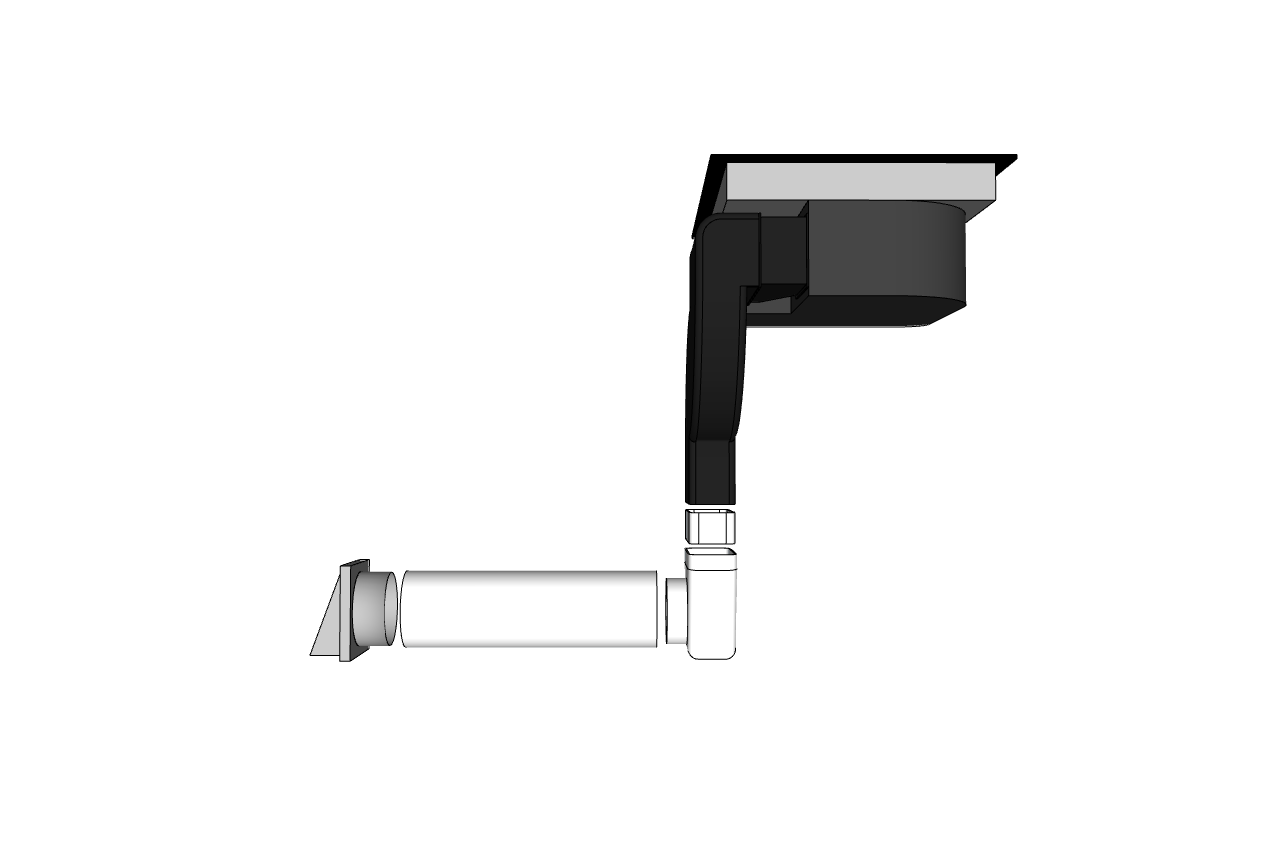

Kit F is a complete exhaust pipe kit specifically designed for TXDDB. The kit includes all necessary duct components for a standard installation, providing outdoor ventilation. The included exterior grille is made of stainless steel, designed as a storm cap that effectively protects against wind and rain. The storm cap is equipped with a damper that effectively prevents drafts from outside.
Features
Complete duct kit specifically for TXDDB
Exterior grille in stainless steel with integrated damper to protect against wind and weather
Efficient airflow ensuring minimal pressure loss
Durable materials ensuring long lifespan
Quick and easy installation with sealing tape included for sealing joints
Kit contents:
Duct piece 222x89 mm L 80 mm
Elbow 222 x 89 – Ø150 mm
Plastic duct Ø150 - 50 cm (can be shortened to wall thickness)
Storm cap in stainless steel with damper – Ø150
Tape for sealing joints
- Complete pipe kit specifically for TXDDB
- Exterior storm cap grille protects against wind and rain
- Efficient airflow with minimal resistance
- Durable materials ensuring long lifespan
- Quick and easy installation
Specifications
Material
Stainless steel
Weight and measurements
Maximum width [mm]
185
Maximum depth [mm]
670
Maximum height [mm]
185
Packaging width(mm)
588
Packaging depth [mm]
387
Packaging height(mm)
181
Net weight [kg]
1.42
Weight
1.72
Other specifications
EAN
5703347534577
BodyColor
Stainless steel
Material
Stainless steel
