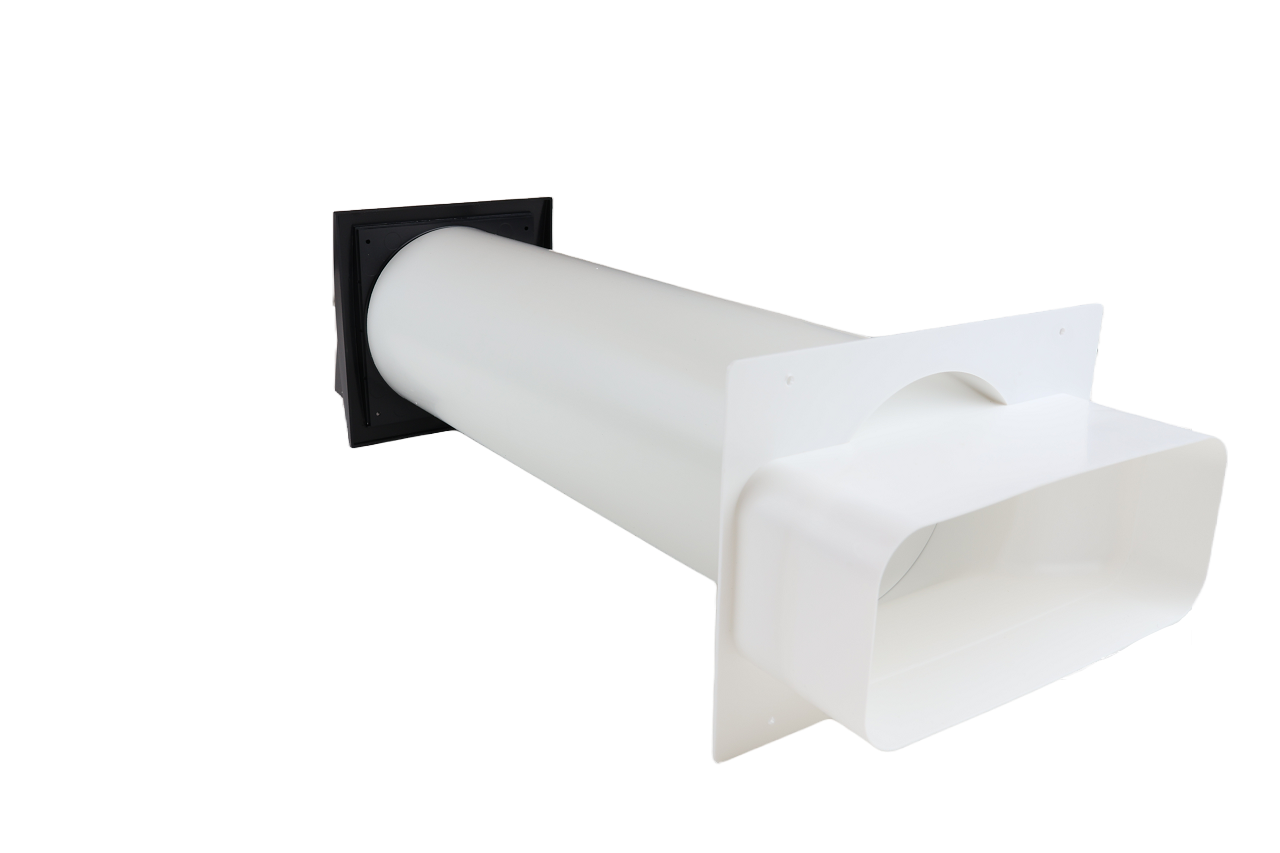

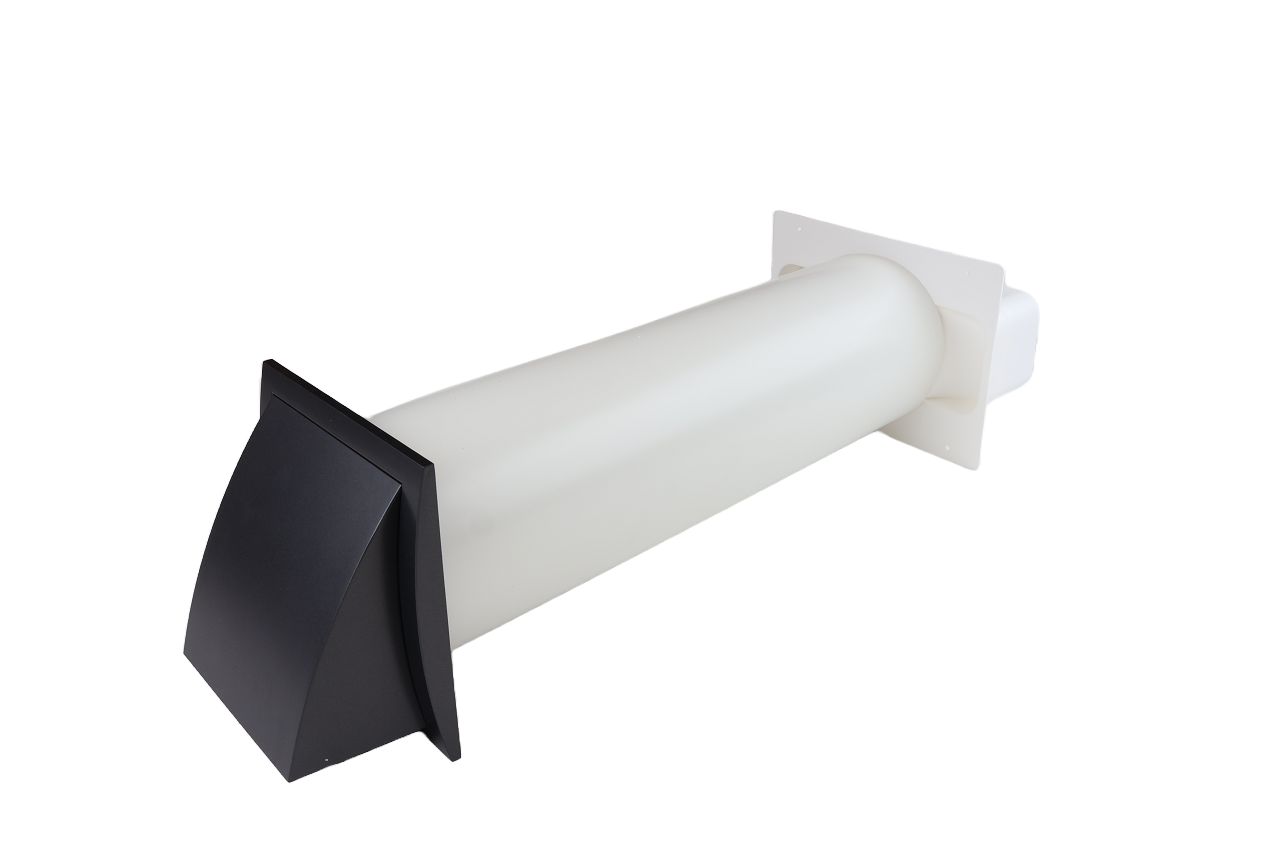

Wall Duct Kit 220x90 Anthracite
830.99.7152.9
The Thermex Wall Duct Kit 220x90 Anthracite is a complete solution for ventilation through the exterior wall. It ensures easy installation, reduces costs, and protects against wind and drafts.
The Thermex Wall Duct Kit 220x90 Anthracite is a complete and practical solution for ventilation through the exterior wall. It is particularly suitable for cooktops with an integrated cooker hood, which often has a rectangular outlet of 220x90 mm.
Features:
Designed for cooker hoods with a rectangular outlet (220x90 mm) and a transition to round Ø150 mm for easy installation.
The transition from rectangular to round allows the use of the included Ø150 mm wall duct. This makes installation easier and reduces costs for creating the wall opening.
Wall flange and wall duct are made of durable white plastic, while the exterior grille is made of weather-resistant anthracite ABS plastic.
The exterior storm cap effectively protects against wind and rain. It is frost and UV resistant.
Both the exterior grille and the wall flange have backdraft dampers to prevent drafts when the cooker hood is not in use.

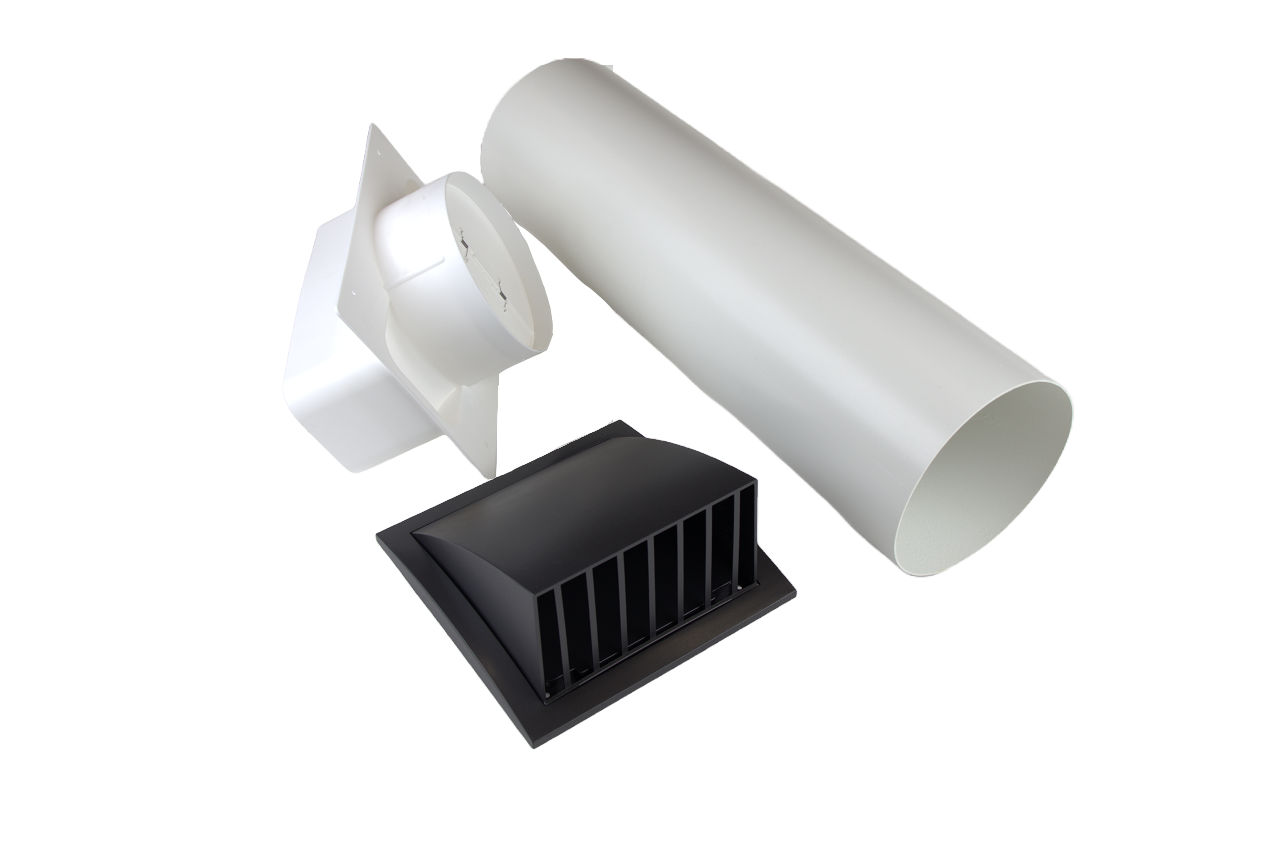

Contents:
Storm cap in anthracite for Ø150 mm connection (190x190 mm)
Wall duct Ø150 mm, 500 mm for trimming
Wall flange with transition from 220x90 mm to Ø150 mm
The Thermex Wall Duct Kit 220x90 Anthracite ensures an efficient and durable ventilation solution with easy installation and optimal protection against wind and weather.
- Fits cooker hoods with a 220x90 mm rectangular outlet
- Smart transition to Ø150 mm duct for easier installation
- Durable plastic materials
- Storm cap effectively protects against wind and rain
- Backdraft damper prevents drafts when the cooker hood is off
Specifications
Material
Plastic
Weight and measurements
Maximum width [mm]
190
Maximum depth [mm]
675
Maximum height [mm]
190
Packaging width(mm)
588
Packaging depth [mm]
387
Packaging height(mm)
181
Net weight [kg]
1.3
Weight
1.6
Other specifications
EAN
5703347804533
BodyColor
Black
Material
Plastic
