Thermex Central ventilation link Ø160 mm

536.99.1403.9
For use in an apartment with shared exhaust or decentralized ventilation
Connection diameter
Please select variant!

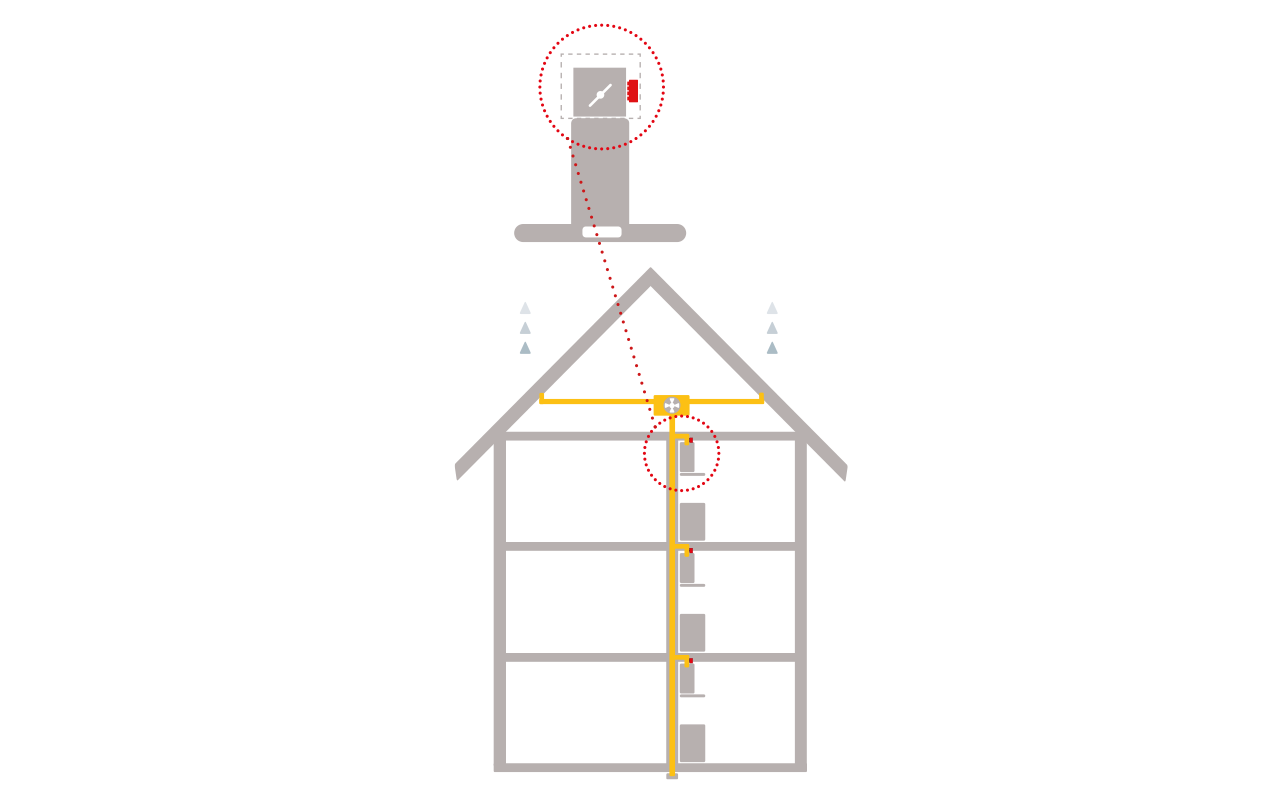

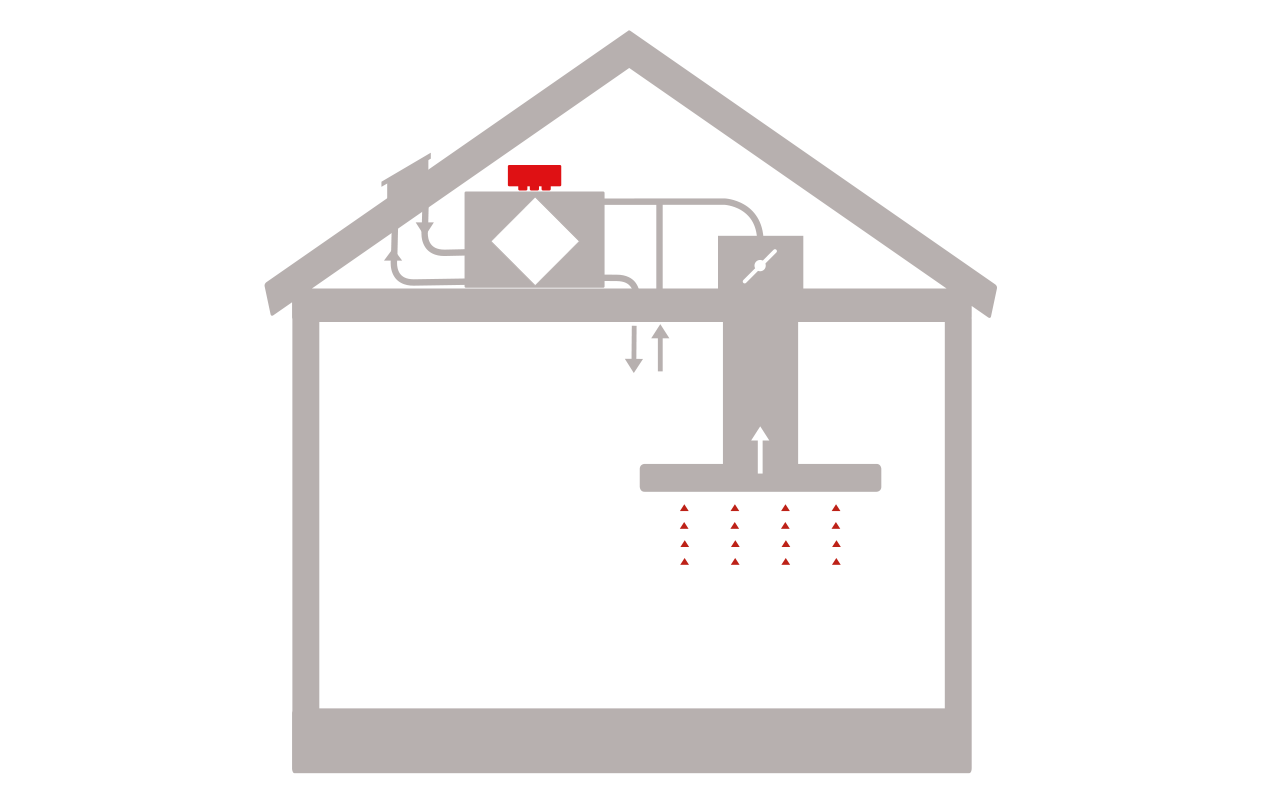

This is how you get a nice hood intended for use in an apartment with a shared exhaust or decentralized ventilation. In many apartment buildings today, there is a centrally located fan that sucks from all apartments in the hallway. Likewise, decentralized ventilation is used in some types of buildings, where a fan is placed in each apartment. In both cases, the hoods in each apartment have no independent motor. THERMEX Central ventilation Link apartment (CVL-link) is a system that enables all hoods from THERMEX, which support Thermex «All Possibilities» , and which is marked with central ventilation (CVL-Link), can be connected to the apartment building's central ventilation system or decentralized ventilation.

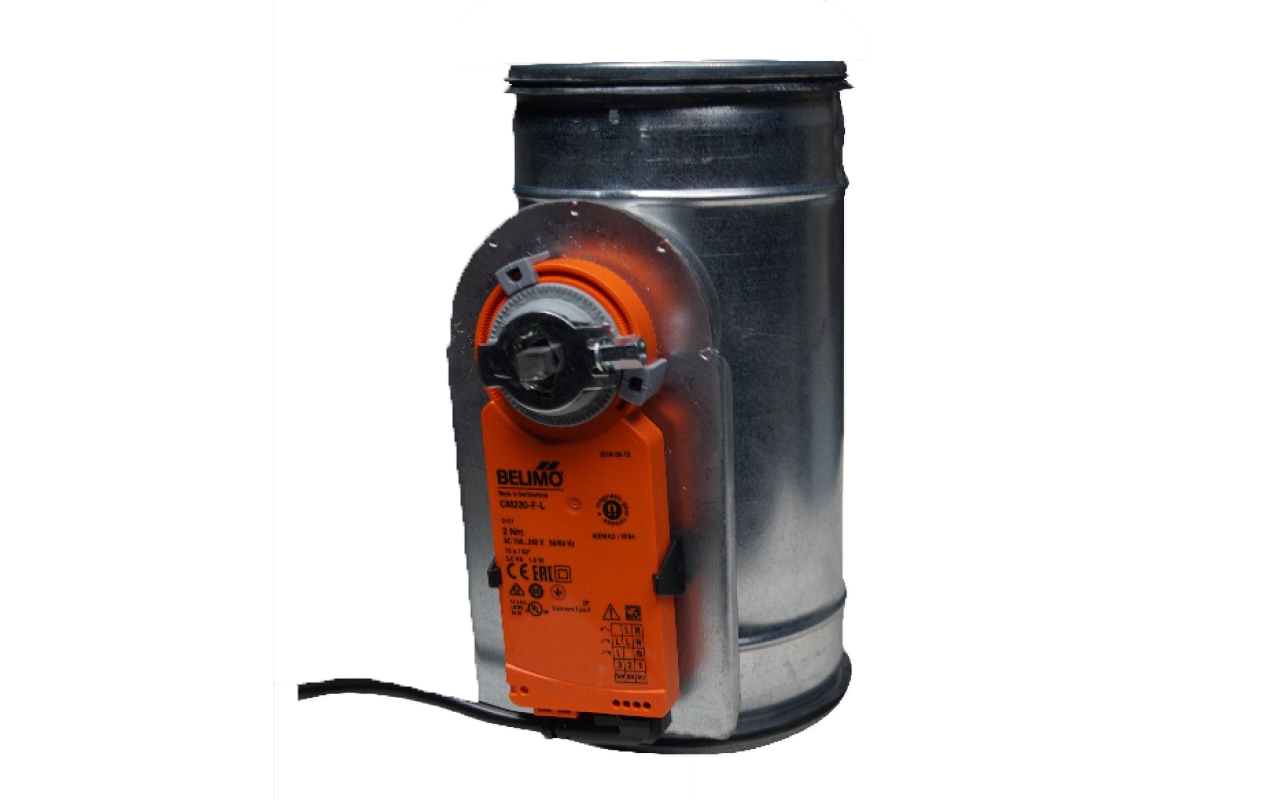

The system consists of a motor damper which is connected to the THERMEX hood, this motor damper can be preset to open and close completely or partially, both on basic ventilation and on forced operation. The setting must be made according to the prescribed data for the operation of the ventilation system. When operating the volume's speed steps 1-4, the damper opens for 15-30-45 or 60 minutes respectively, after which it closes back to the basic ventilation setting.

Specifications

Control
Not relevant
Material
Stainless steel

Specifications

Control
Not relevant
Material
Stainless steel

Weight and measurements

Maximum width [mm]
210
Maximum depth [mm]
250
Maximum height [mm]
330
Packaging width(mm)
210
Packaging depth [mm]
250
Packaging height(mm)
330
Net weight [kg]
1.5
Weight
2

Features

Control
Not relevant

Other specifications

EAN
5703347527470
BodyColor
White
Material
Stainless steel
