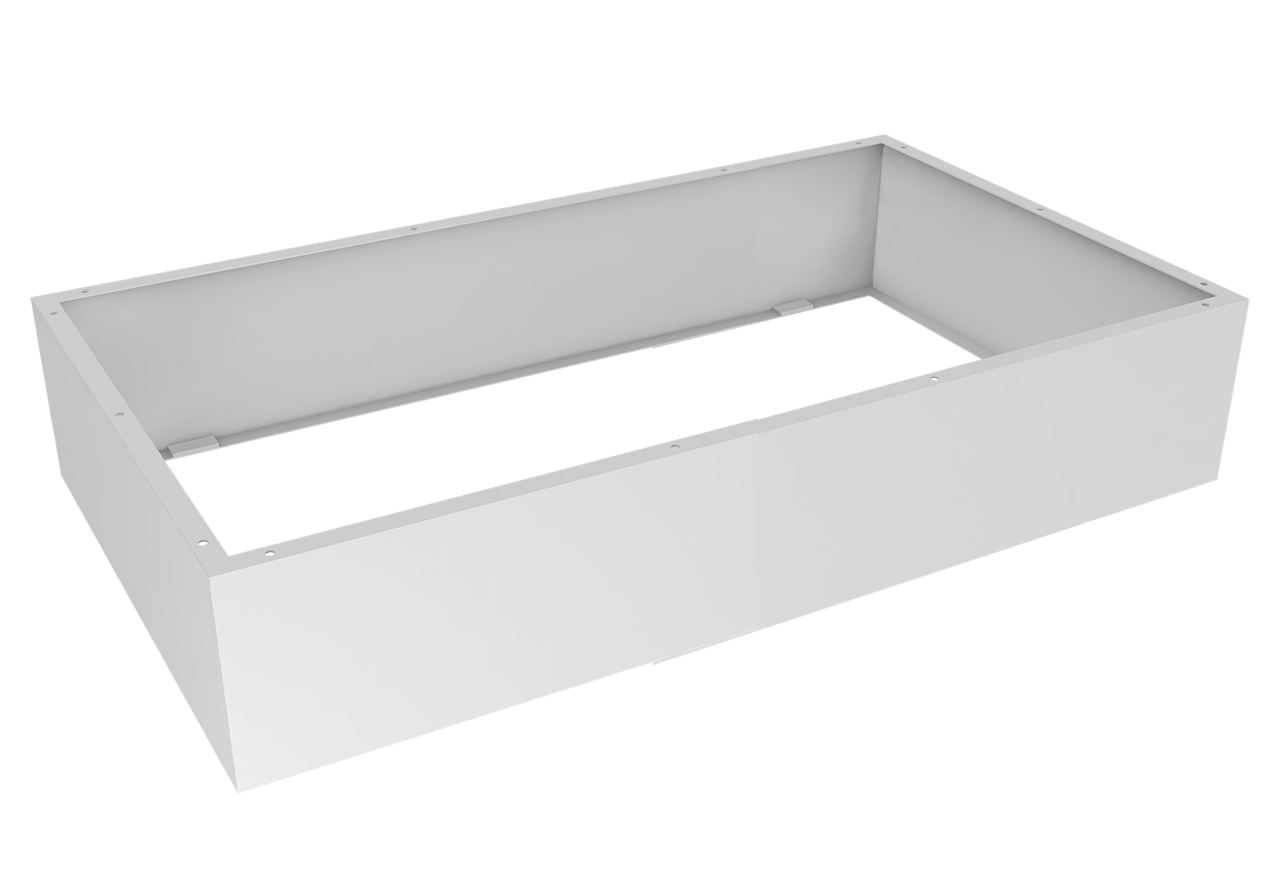

Ceiling Podium for Integrata Medio
500.99.3070.0
The Ceiling Podium for Integrata Medio from Thermex makes it easy to mount ceiling-integrated cooker hoods and ensures a stable installation. It is compatible with Metz Medio II and Passat Medio II with internal or external motors.
The Ceiling Podium for Integrata Medio from Thermex is a practical solution for mounting ceiling-integrated cooker hoods, designed for the Metz Medio II and Passat Medio II models. The podium is designed to fit both cooker hoods with an internal motor and for external motor, making it a flexible solution for various needs.
The product is made of white painted steel in color RAL 9016 and measures 910x510x207 mm. The sleek white finish ensures a discreet and elegant appearance that fits most kitchen designs.
The ceiling podium is used when you want to mount the cooker hood recessed from the ceiling or if there is not enough space in the ceiling or floor separation to integrate the hood directly.
Installation becomes significantly easier with the use of the ceiling podium. It is screwed to the ceiling, after which the ventilation duct is connected to the hood. Once in place, the hood easily clicks into the ceiling podium and is secured from below, ensuring a stable and safe installation.
Specifications:
Dimensions: 910 x 510 x 207 mm
Color: White (RAL 9016)
Material: White painted steel
Compatibility: Metz Medio II and Passat Medio II
- Ideal for recessed mounting or limited ceiling space
- Discreet and elegant solution in white painted steel
- Makes installation faster and easier
Specifications
Material
White painted steel
Weight and measurements
Maximum width [mm]
910
Maximum depth [mm]
510
Maximum height [mm]
207
Packaging width(mm)
950
Packaging depth [mm]
560
Packaging height(mm)
290
Net weight [kg]
10
Weight
12.5
Other specifications
EAN
5703347533525
BodyColor
White
Material
White painted steel
