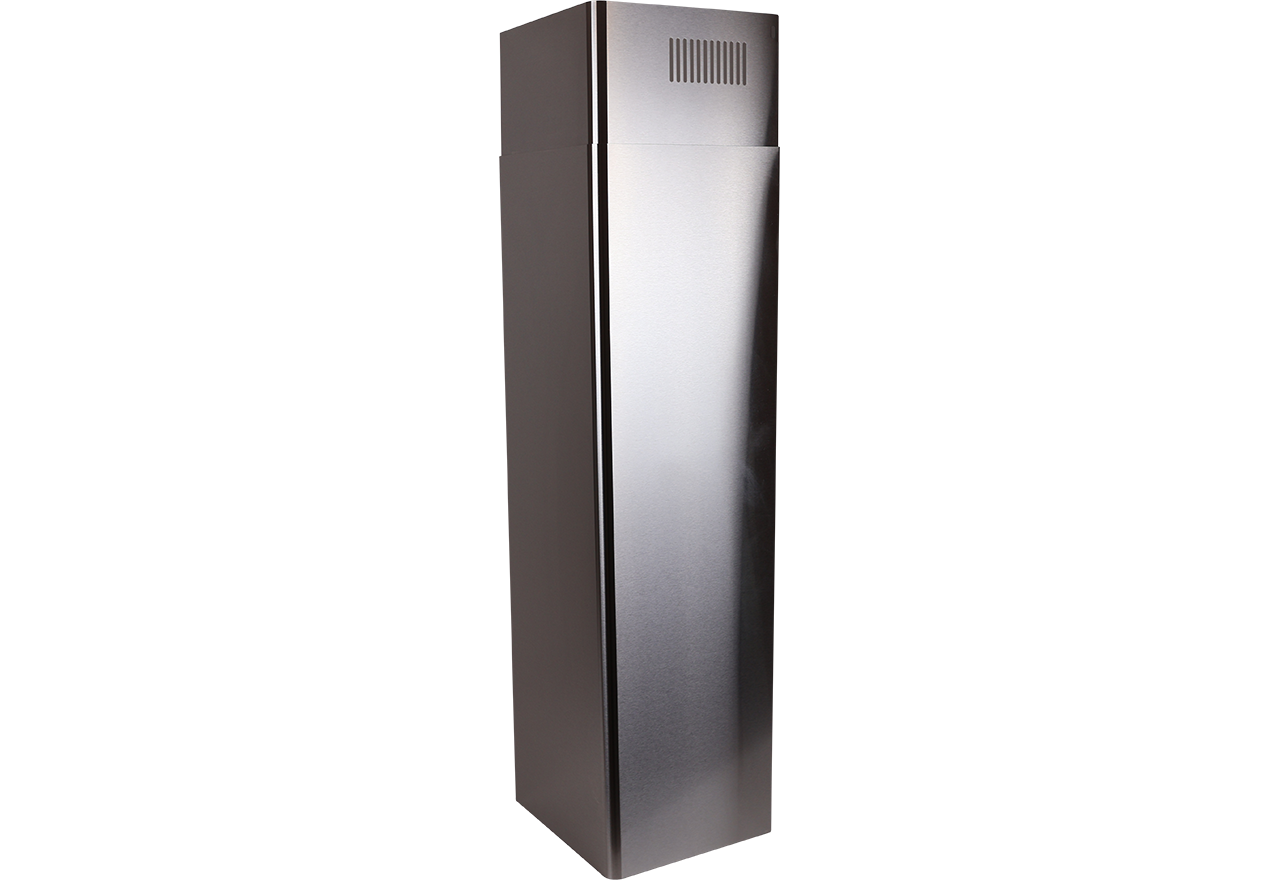

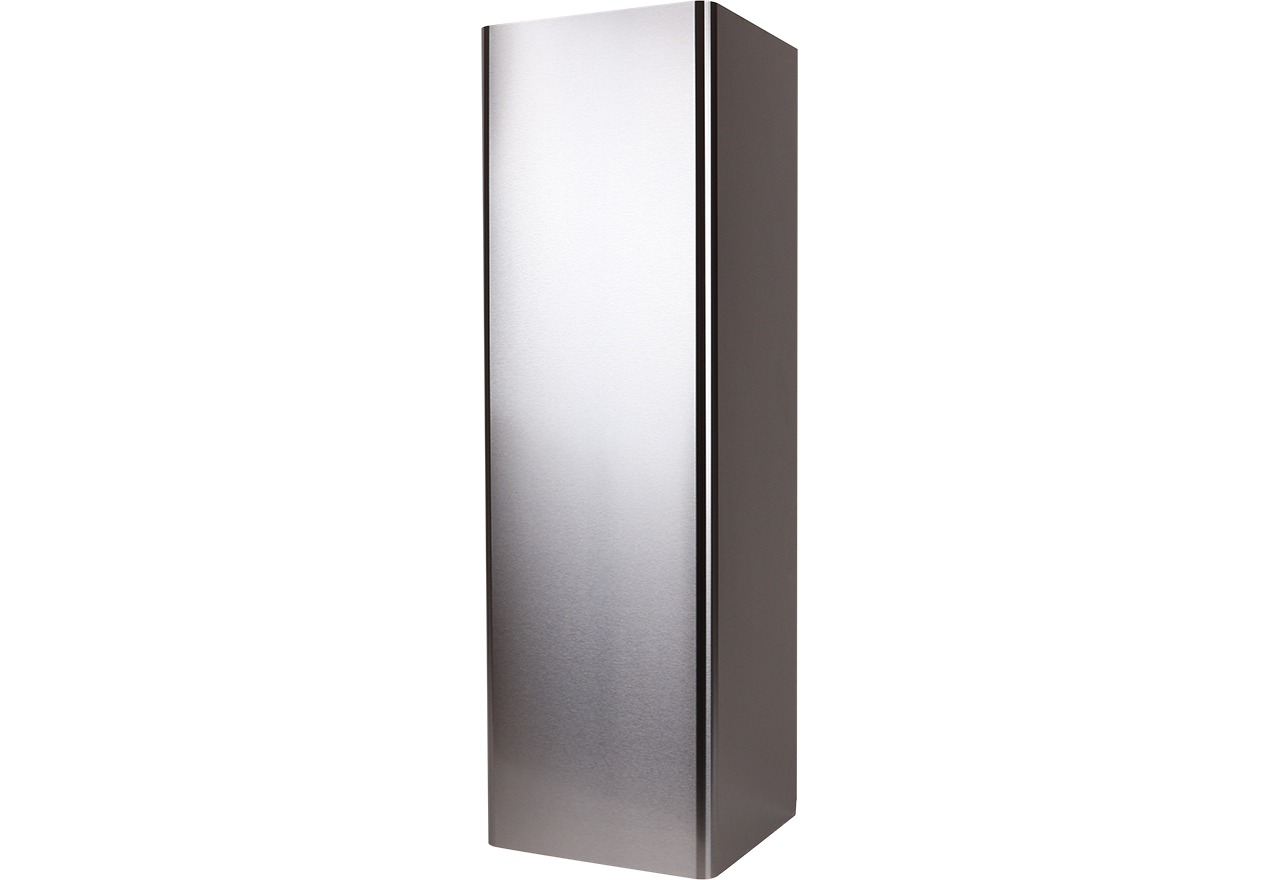

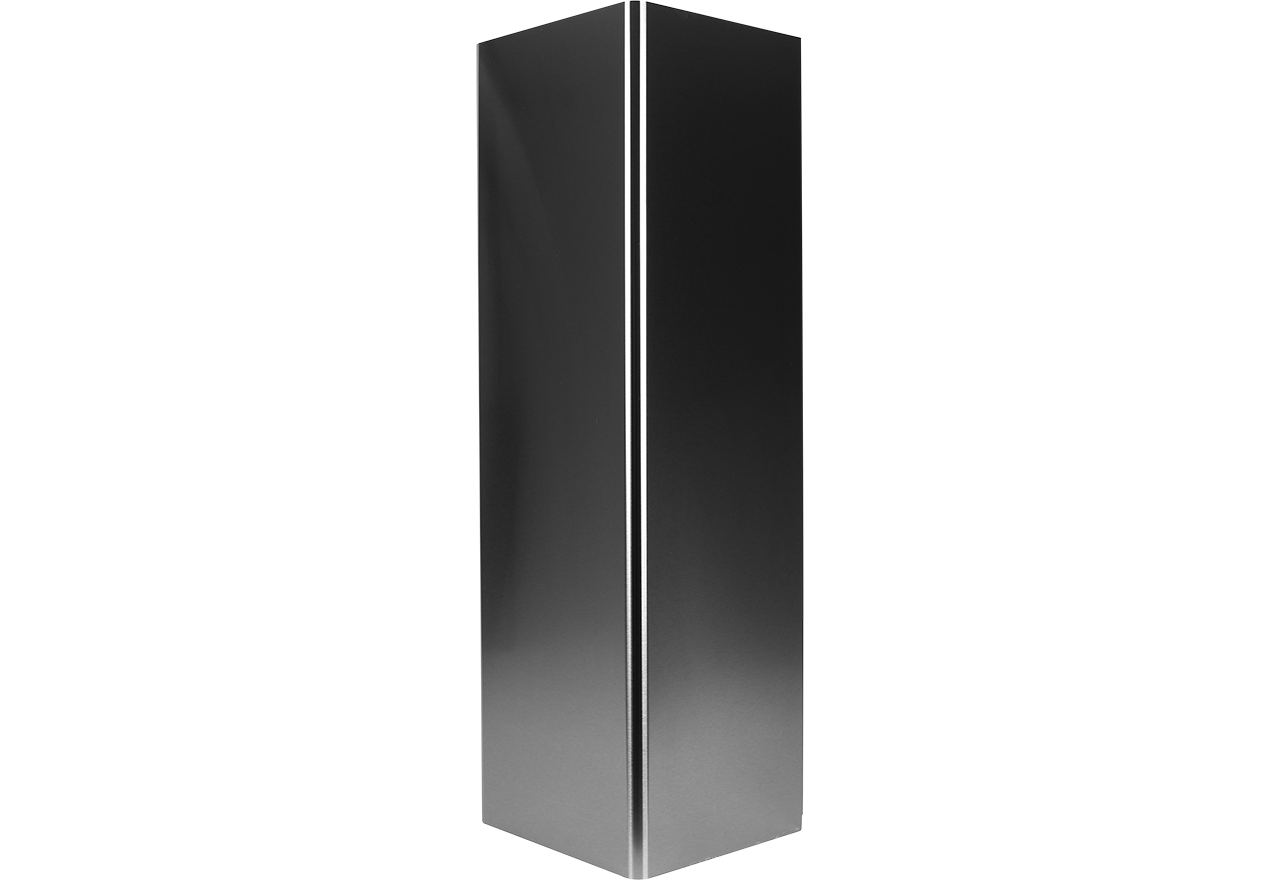

Special Chimney for Derby II Island
537.21.1119.9
The special chimney for the Derby II island hood offers extra height adjustment with a telescopic design and internal frame. Made of stainless steel, it is ideal for kitchens with modern and flexible needs.
This special chimney is specifically designed for the island Derby II hood and offers a practical solution for kitchens requiring extra chimney height – often referred to as a chimney.
Features:
Extension chimney: Replaces the standard chimney included with the Derby II hood, allowing for adjustable chimney length.
Telescopic design: Consists of two parts that slide telescopically into each other, with an internal frame for mounting. Each part is 1000 mm long, and the total length can be adjusted up to 1950 mm with overlap.
Material and dimensions: Made of durable stainless steel with dimensions of 268 mm in width and 283 mm in depth.

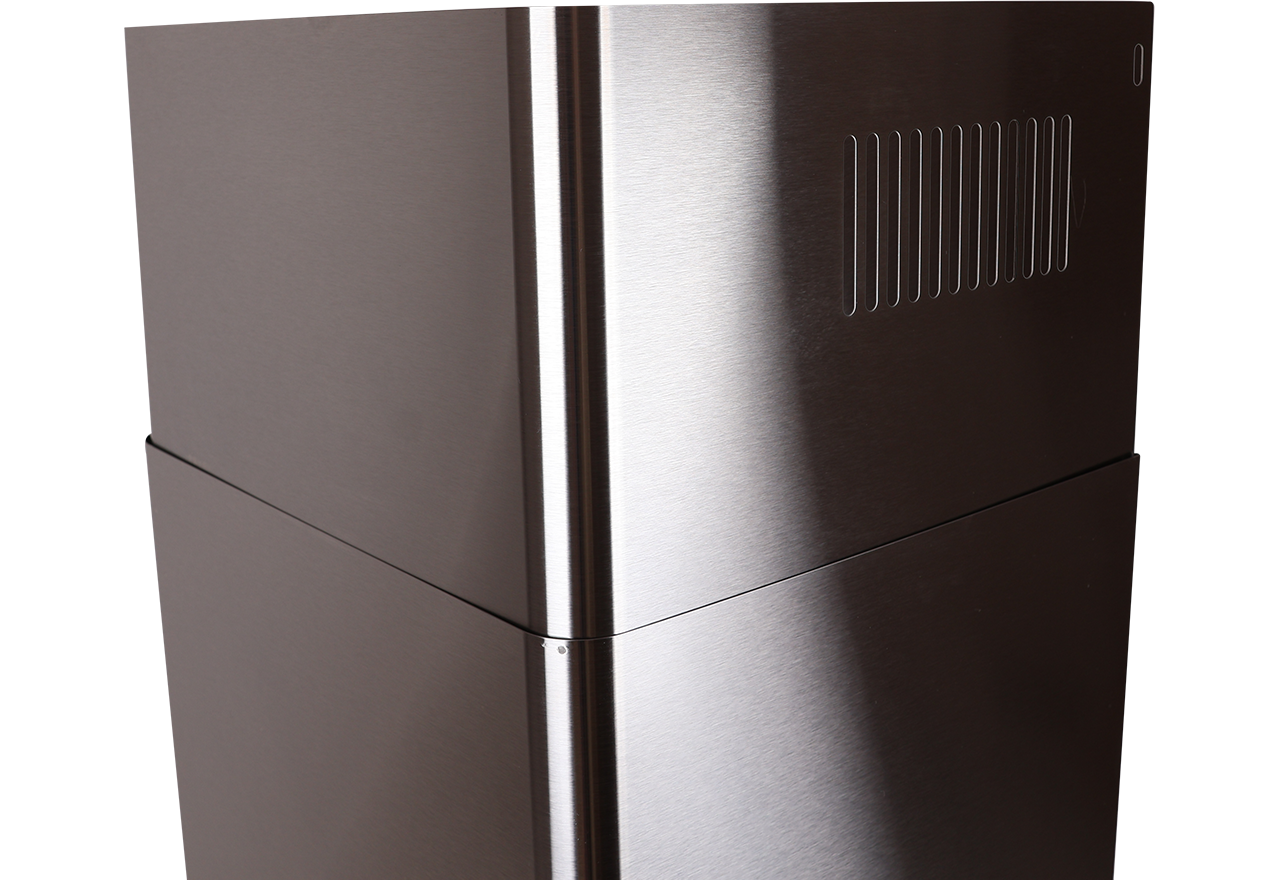

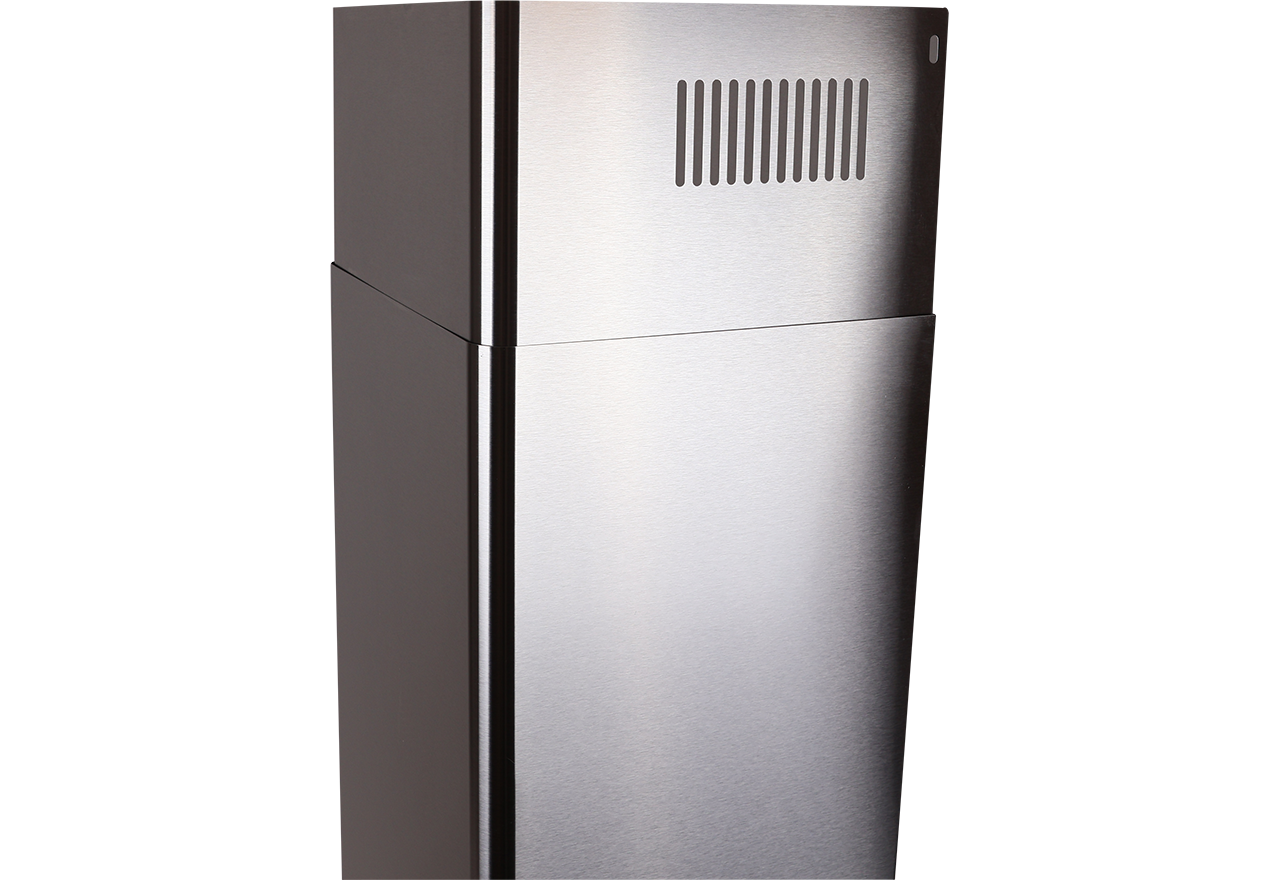

Recirculation: Equipped with grooves at the top for air recirculation when using a carbon filter. The grooves can be hidden in the overlap if not desired.
This special chimney is a flexible and efficient solution for kitchens with extra ceiling height and a modern look. It ensures both practical functionality and aesthetic integration in the kitchen.
- Telescopic design: Adjustable length up to 1950 mm with two stainless steel parts
- Recirculation: Grooves at the top for carbon filter and option for hidden grooves
- Flexible solution: Ideal for kitchens with extra ceiling height and efficient ventilation needs
Specifications
Material
Stainless steel
Weight and measurements
Maximum width [mm]
268
Maximum depth [mm]
283
Maximum height [mm]
1950
Packaging width(mm)
330
Packaging depth [mm]
360
Packaging height(mm)
1070
Net weight [kg]
15.5
Weight
17.5
Other specifications
EAN
5703347533594
BodyColor
Stainless steel
Material
Stainless steel
