Hob Link Basic is a set consisting of a cooktop and a range hood from Thermex, designed to bring both functionality and elegance to your kitchen. This innovative set ensures a seamless and intelligent cooking experience with automatic integration between the cooktop and the range hood.
Range Hood: TXVKHBL 60

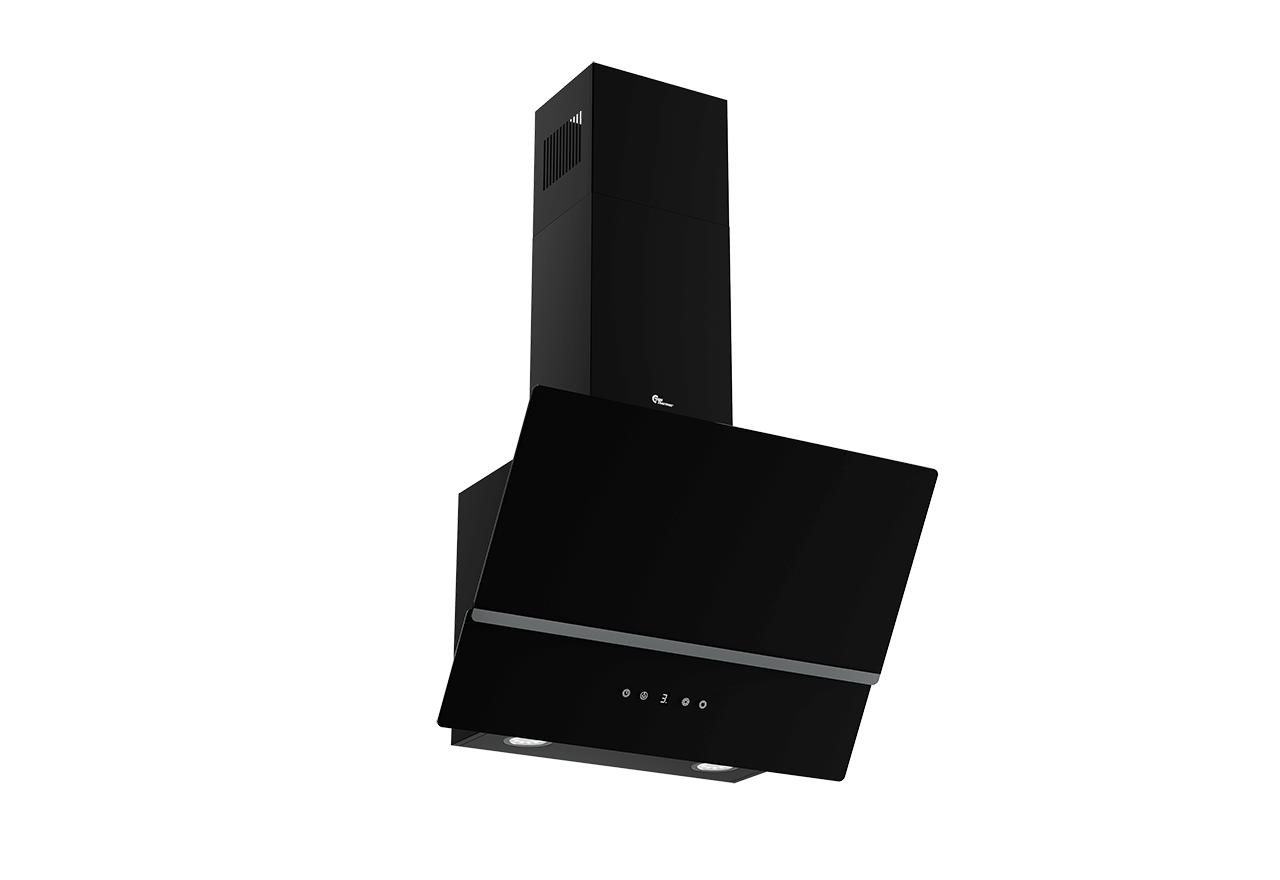

TXVKHBL 60 is a vertical range hood designed for wall mounting, combining style and efficiency. With an elegant design in black-painted steel and black glass, this range hood measures 60 cm in width. It is equipped with an aluminum filter and two LED lamps, providing both effective extraction and lighting.
One of its features is its Hob Link integration with the Thermex TH1INBHBL 60 cooktop. This allows for automatic activation of extraction, adjustment of suction power based on the cooktop's level, and automatic shutdown of the range hood and its lights when the cooktop is turned off. Of course, the range hood's functions can also be controlled manually via its intuitive glass touch control panel.
The built-in motor is of high quality with low energy consumption, reflected in its A+ energy rating. It delivers a powerful airflow of up to 543 m³/h and has a low noise level, as low as 43 dB(A).
Cleaning the range hood is simple, as it can be wiped down with a damp cloth, and the glass can be cleaned with window cleaner. The aluminum filters can also be easily removed and washed in the dishwasher, making maintenance practical and hassle-free.
Cooktop: TH1INBHBL 60

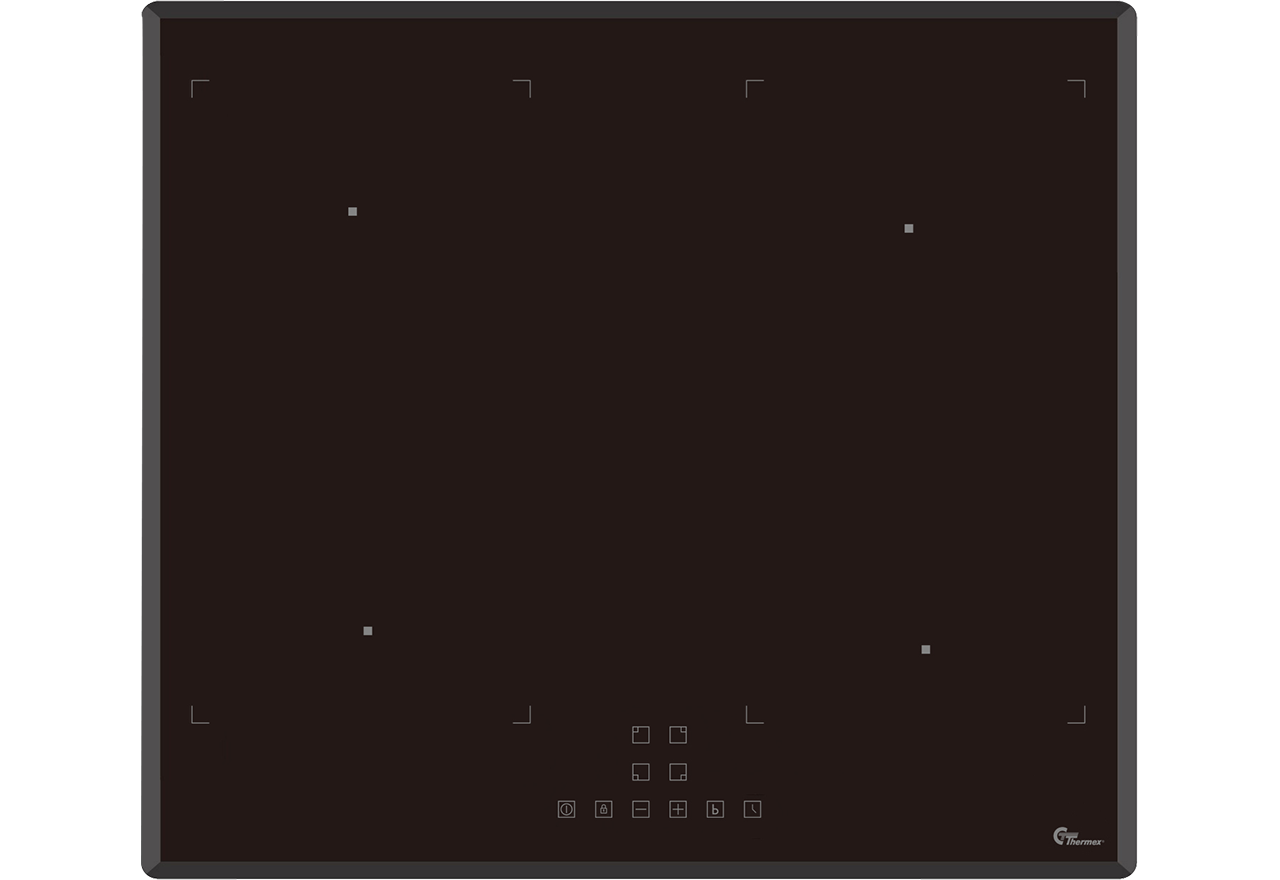

TH1INBHBL 60 is an induction cooktop from Thermex, impressing with its elegant design in black glass and a width of 59 cm. It has four round cooking zones, providing a sleek and modern look that fits into most kitchens.
This cooktop features four zones with a double bridge function, meaning that two of the cooking zones can be combined to form a larger cooking area, ideal for larger pots and pans.
The cooking zones include two Ø160 mm zones and two Ø180 mm zones. The two smaller zones have a power of 1500 W, while the larger zones have a power of 2100 W, giving a total power output of up to 7200 W. The bridge zones can reach up to 3000 W each.
User-friendly glass touch controls make it easy to adjust heat settings. Timer and boost functions on all zones make cooking more flexible and efficient. There is a child lock to prevent small children from operating the cooktop, as well as a safety shut-off that automatically turns off the cooktop after a certain period without use. A residual heat indicator shows which zones are still hot after use. There are nine adjustable heat levels on each zone, providing precise control over cooking.
The installation dimensions for the cooktop are 560x490 mm, making it easy to integrate into most kitchens. Cleaning is simple and requires just a damp cloth with dish soap.
Hob Link Basic is the perfect combination of modern technology and stylish design, making cooking both smarter and more elegant.
- Elegant design: Cooktop and range hood in black glass and steel
- Automatic integration: Hob Link ensures efficient extraction
- Bridge function: Cooktop with double bridge function
- Efficient extraction: Range hood with A+ energy rating and low noise level from 43 dB(A)
- High performance: Airflow up to 543 m³/h
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
7278
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230/400
Specifications
Minimum airflow [m3/h]
180
Minimum-Soundpower [dB(A)]
43
Maximum-airflow [m3/h]
543
Maximum-Soundpower [dB(A)]
64
Energy consumption [W]
7278
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230/400
Weight and measurements
Maximum width [mm]
590
Maximum depth [mm]
520
Maximum height [mm]
1150
Vent pipe width (mm)
222
Vent pipe max height (mm)
780
Vent pipe min height (mm)
400
Minimum length vent pipe cutdown [mm]
370
Cooking zone rear-right [mm]
180
Cooking zone rear-left [mm]
Ø160
Cooking zone front-right [mm]
160
Cooking zone Front-left [mm]
180
Installation dimensions WxD [mm]
560x490
Outlet dimension (mm)
Ø150
Packaging width(mm)
652
Packaging depth [mm]
580
Packaging height(mm)
545
Net weight [kg]
20.5
Weight
23.5
Features
Control
Glass touch
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Bridge function
Yes
Automatic bridge function
No
Boost function
Yes
Child safety
Yes
Pot sensor
No
Keep warm function
No
Automatic boiling
No
Recall
No
Safety shutdown
No
Stop & Go
No
Toplink compatible
No
Smarthome
No
Timer function
Yes
Technical specifications
Illumination (Emiddle) [lux]
138
LE value [lux/W]
32.9
LE-class
A
EEI-value
38.8
EEI-class
A+
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
82
GFE-class
C
FDE-value
32.5
FDE-class
A
Energy consumption [W]
7278
Cooking area Rear-right [W]
2100
Cooking zone Rear-left [W]
1500
Cooking zone Front-right [W]
1500
Cooking zone Front-left [W]
2100
Total power of the hob [W]
7200
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.43
Motor Power [W]
75
Voltage [V]
230/400
Other specifications
EAN
5703347533440
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.21.8600.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
Yes
Suction Edge
No
Longer vent pipe available
No
Vent pipe modification
Yes
Mounting
Wall mounted
Motor type
Internal motor
Front panel color
Black
BodyColor
Black
Front panel material
Black glass
Material
Black painted steel and Black glass
Number of cooking zones
4
Flush mounting
No
SupplyCord (m)
1.2
