TH1INBHBL 60

H900.21.1012.2

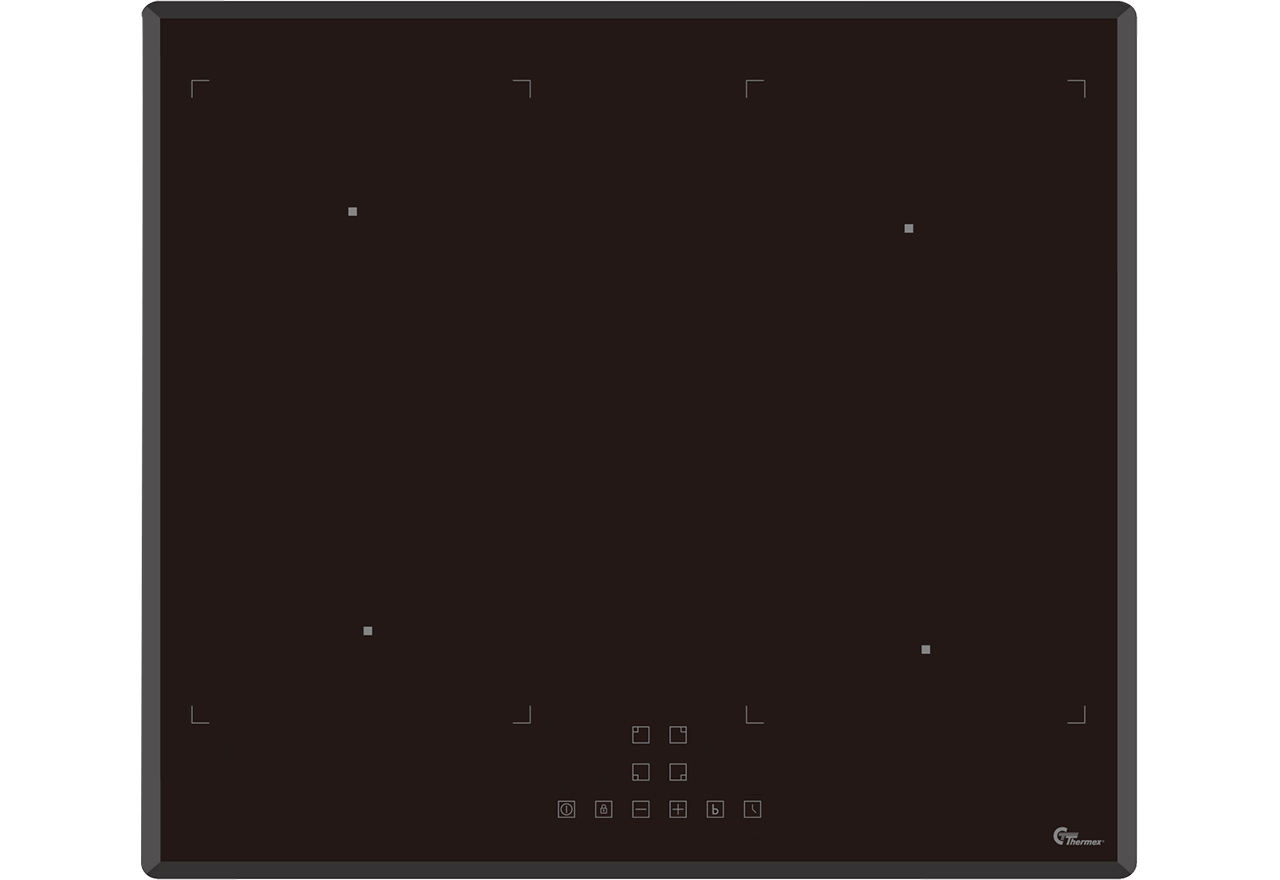

TH1INBHBL 60 is an elegant black glass induction hob from Thermex with four cooking zones, a double bridge function, and the option for automatic hood control. It is user-friendly with glass touch control and safety features.
TH1INBHBL 60 is an induction hob from Thermex, impressing with its elegant design in black glass and a width of 59 cm. It features four round cooking zones, offering a sleek and modern appearance suitable for most kitchens.

Features:
Induction hob with 4 zones and double bridge function: This feature allows two of the cooking zones to be combined to form a larger cooking surface, ideal for larger pots and pans.
Option for integration with TXVKHBL 60 cooker hood: When the hob is turned on, the hood automatically starts suction, adjusting the suction power according to the hob's level. The hood's light and suction are automatically turned off when the hob is switched off, but it is always possible to override the hood via its own controls.
Cooking zones: The four cooking zones include two Ø160 mm zones and two Ø180 mm zones. The two smaller zones have a power of 1500 W, while the larger zones have a power of 2100 W, providing a total power of up to 7200 W. The bridge zones can reach up to 3000 W each.
User-friendly glass touch control: This feature makes it easy to adjust the heat settings.
Timer and boost functions on all zones: These functions make cooking more flexible and efficient.
Child lock: Ensures that the hob cannot be operated by small children.
Safety shutdown: Automatically switches off the hob after a certain period of non-use.
Residual heat indicator: Indicates which zones are still hot after use.
Nine adjustable heat levels on each zone: Provides precise control over cooking.

Installation:
The installation dimensions for the hob are 560x490 mm, making it easy to integrate into most kitchens.

Cleaning:
Cleaning is simple and only requires a damp cloth with dish soap.
  • Automatic hood control: Integration with TXVKHBL 60 for automatic extraction
  • Double bridge function: Ability to combine two zones for larger pots and pans
  • Four cooking zones: Two Ø160 mm zones with 1500 W power and two Ø180 mm zones with 2100 W power
  • User-friendly glass touch operation: Easy adjustment of heat settings
  • Safety features: Child lock, residual heat indicator, and safety shutdown

Specifications

Control
Glass touch
Material
Black glass

Specifications

Control
Glass touch
Material
Black glass

Weight and measurements

Maximum width [mm]
590
Maximum depth [mm]
520
Maximum height [mm]
55
Cooking zone rear-right [mm]
180 mm
Cooking zone rear-left [mm]
160 mm
Cooking zone front-right [mm]
160 mm
Cooking zone Front-left [mm]
180
Installation dimensions WxD [mm]
560x490
Packaging width(mm)
635
Packaging depth [mm]
580
Packaging height(mm)
110
Net weight [kg]
8
Weight
9

Features

Control
Glass touch
Automatic bridge function
No
Boost function (Hob)
Yes
Bridge function
Yes
Child safety
Yes
Pot sensor
No
Keep warm function
No
Automatic boiling
No
Recall
No
Safety shutdown
No
Stop & Go
No
Timer on all cooking zones
Yes

Technical specifications

Cooking area Rear-right [W]
2100
Cooking zone Rear-left [W]
1500
Cooking zone Front-right [W]
1500
Cooking zone Front-left [W]
2100
Total power of the hob [W]
7200
Power supply [V]
230

Other specifications

EAN
5703347902246
BodyColor
Black
BodyColor (RAL)
0
Material
Black glass
Number of cooking zones
4
Flush mounting
No
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
