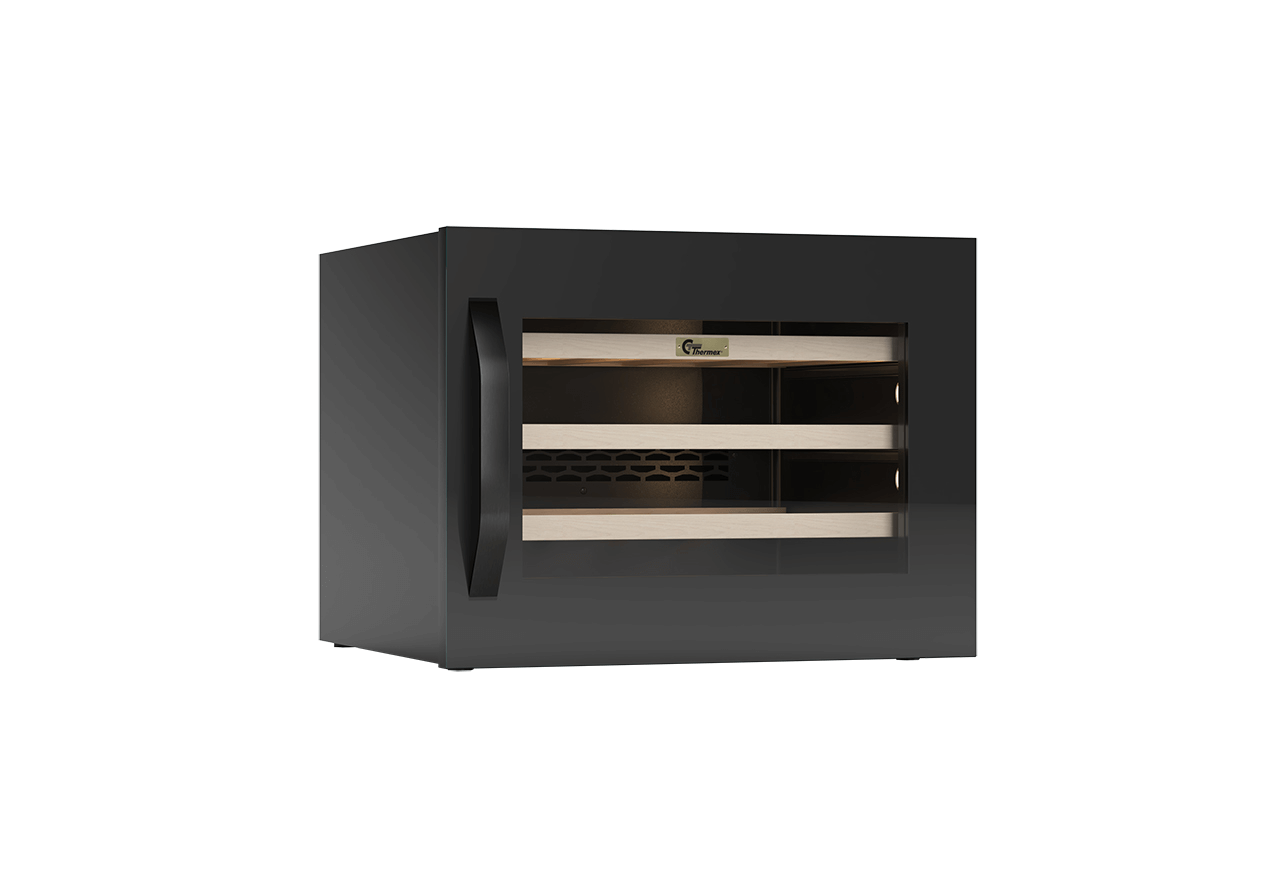

Winemex 24, single zone

910.21.1001.2
Thermex Winemex 24 is a stylish and elegant wine cabinet of the highest quality with space for 24 bottles of wine, and is perfectly suited for installation in cabinets designed for microwave ovens.

Stylish and elegant wine cabinet of the highest quality with space for 24 bottles of wine. Quiet and vibration-damped compressor, internal LED light and 3 shelves in beautiful beech wood.

Calculated as built-in in places for e.g. microwave, coffee machine and extra oven. A really beautiful wine cabinet which allows you to easily store some bottles in the kitchen. Elegant and simple control of the temperature.

Specifications

Number of bottles
24
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
39
Number of zones
Enkeltzone skab
Temperature zone 1
5-20°C

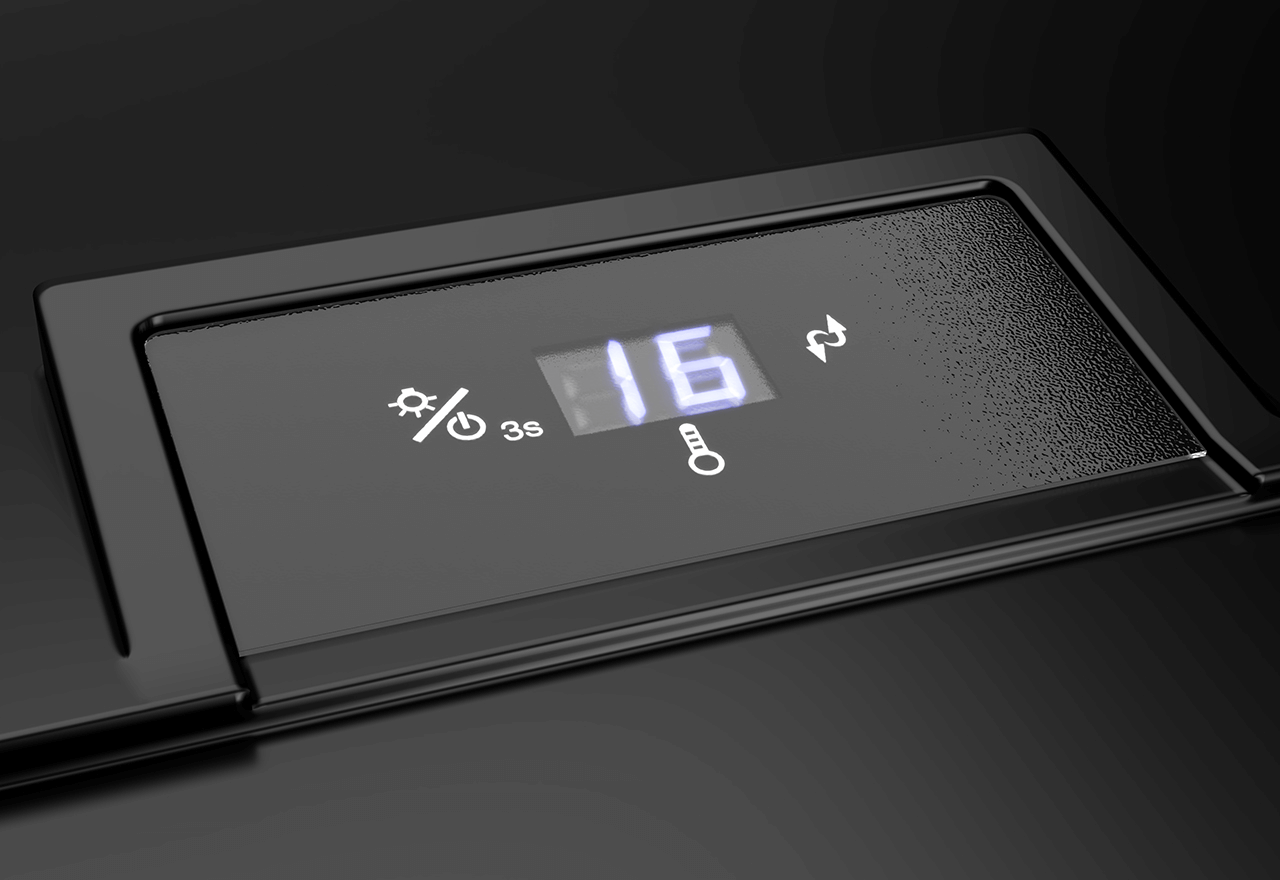

Control
Glass touch
Material
Black painted steel and Black glass

Specifications

Number of bottles
24
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
39
Number of zones
Enkeltzone skab
Temperature zone 1
5-20°C
Control
Glass touch
Material
Black painted steel and Black glass

Weight and measurements

Maximum width [mm]
590
Maximum depth [mm]
557
Maximum height [mm]
455
Volume [L]
51
Packaging width(mm)
640
Packaging depth [mm]
655
Packaging height(mm)
525
Net weight [kg]
24.5
Weight
27

Features

Control
Glass touch
Wi-Fi
No
Defrosting
Automatic
Anti Vibration
Yes
Cooling technique
Anti vibration compressor
Possibility to rehinge door
Yes
Winter function
No

Technical specifications

Energieffektivitetsindeks
147.1
Energieffektivitetsklasse(EEI)
G
Årligt energiforbrug
118
Climate class
N (+16 °C til +32 °C)
Air circulation
Yes
Maximum Soundpower [dB(A)]
39
Power supply [V]
230

Other specifications

EAN
5703347901737
BodyColor
Black
BodyColor (RAL)
0
Material
Black painted steel and Black glass
Number of bottles
24
Number of zones
Enkeltzone skab
Use of the appliance
The appliance is only intended for storing wine.
Installation type
Designed for built-in
Refrigerant
R600a
Refrigerant weight [g]
18

Downloads

Here you will find all documents relevant to this product

Dimensional drawing

Installation manual

Quick guide

Teknisk info
