Winemex 30, double zone, 70 cm

910.21.1010.2
Thermex Winemex 30 is a stylish built-in wine cooler with a capacity for 30 bottles. It features two cooling zones, UV-protected glass, and a vibration-dampened compressor, ideal for both white and red wine.
Height
Please select variant!

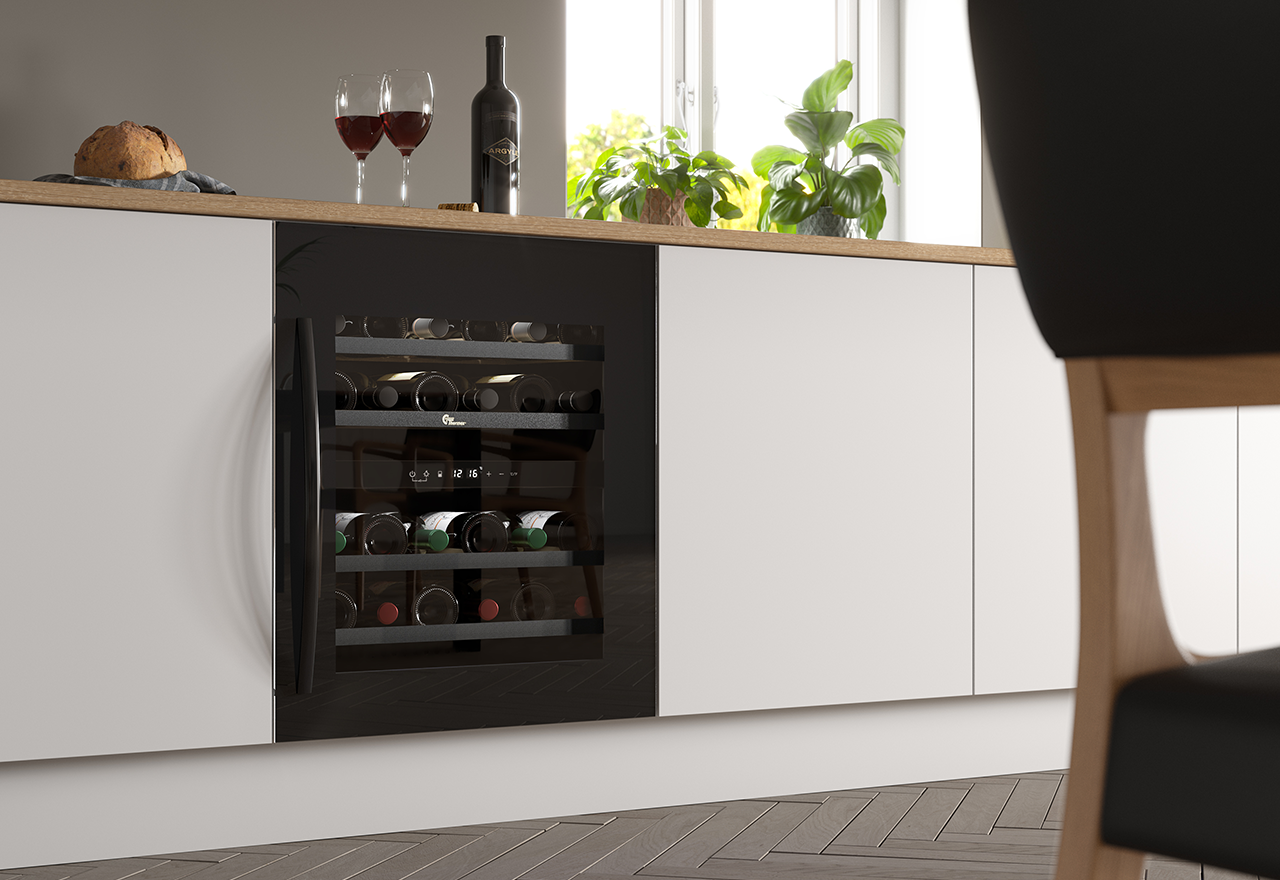

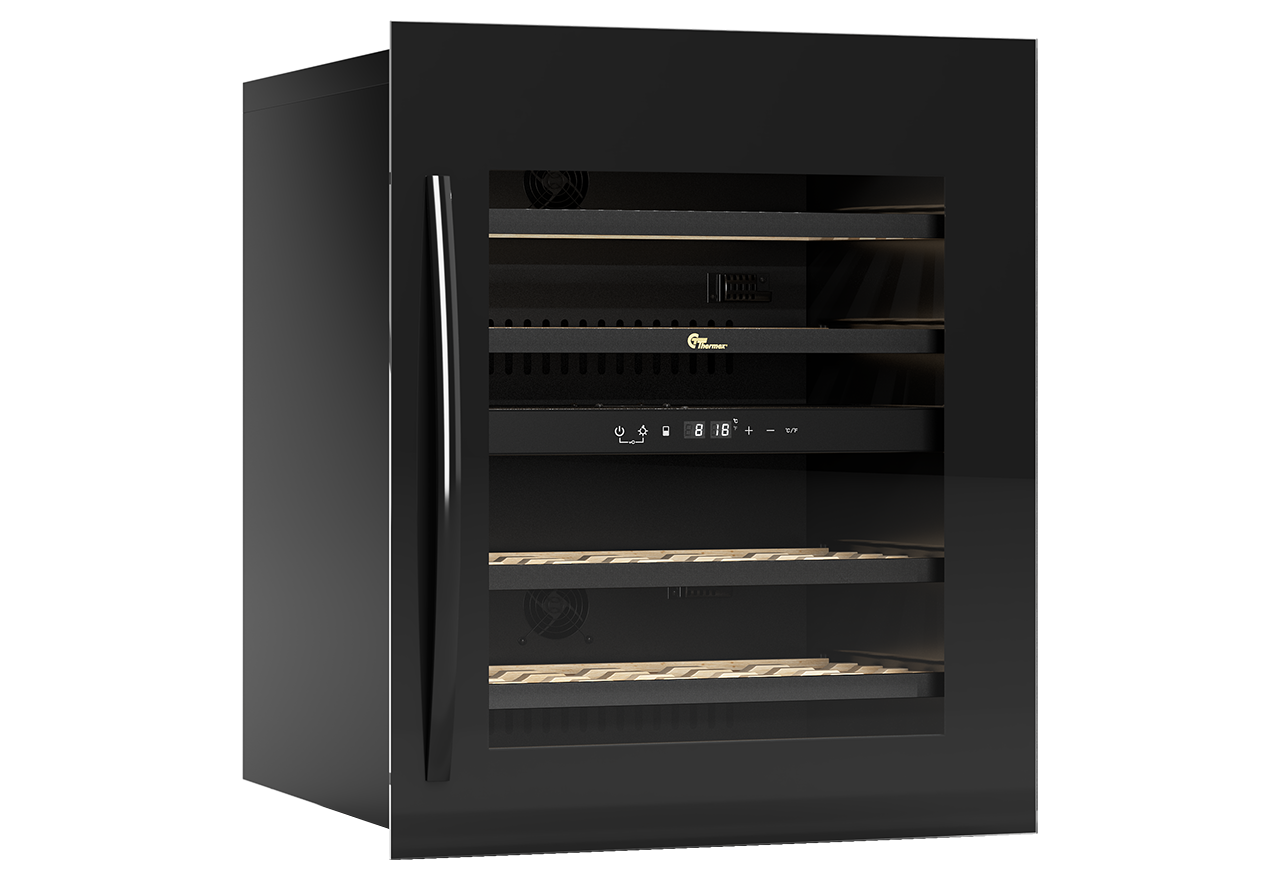

Thermex Winemex 30 is an elegant and stylish built-in wine cooler, perfect for modern kitchens. The cooler features a black glass front with a black glass frame and clear glass in the middle, offering a full view of your wine collection. Inside, the cooler has four shelves made of beautiful light birch wood, creating a stunning contrast to the minimalist exterior. The cooler is equipped with a black handle that completes the exclusive design.

Capacity and Features
The wine cooler has a capacity for 30 bottles and is equipped with a vibration-dampened compressor that ensures quiet operation at only 38 dB. It has two separate cooling zones, allowing for different types of wine to be stored at their optimal temperatures. The top zone can be set from 5-12°C, perfect for white wine, while the bottom zone can be set from 12-20°C, ideal for red wine. The internal LED lighting makes it easy to view your wine collection.

Installation and Ventilation
Thermex Winemex 30 is easy to install and can be integrated under a countertop or in a tall cabinet, depending on your preference. The smart ventilation system requires only 20 cm² in the plinth, making the wine cooler almost invisible and very discreet in your kitchen. The cooler also has an integrated carbon filter to ensure an odor-free environment inside.

Glass and Controls
The wine cooler is equipped with UV-protected glass to shield your wine from harmful light. The controls are simple and intuitive, allowing you to adjust the temperatures in the two cooling zones, turn the cooler on and off, and control the LED lighting.

Cleaning
To maintain the sleek appearance of the cooler, the glass front should be cleaned with glass cleaner. Inside, the cooler can be easily wiped with a damp cloth.

Thermex Winemex 30 is a functional and stylish built-in wine cooler, providing you with the perfect way to store your wine collection. With its elegant design and practical features, it is an ideal solution for wine lovers seeking both quality and aesthetics in their kitchen.

  • 4 shelves of beech wood and fixed base for 30 bottles of Bordeaux size
  • Two zones – one at the top and one at the bottom
  • Quiet and vibration dampened compressor - 38 DB
  • Fits door height of 700 mm
  • UV glass to protect the wine

Specifications

Number of bottles
30
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
38
Number of zones
Tozone skab
Temperature zone 1
5-12°C
Temperature zone 2
12-20°C
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230

Specifications

Number of bottles
30
Climate class
N (+16 °C til +32 °C)
Maximum Soundpower [dB(A)]
38
Number of zones
Tozone skab
Temperature zone 1
5-12°C
Temperature zone 2
12-20°C
Control
Glass touch
Material
Black painted steel and Black glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
595
Maximum depth [mm]
555
Maximum height [mm]
700
Volume [L]
85
Packaging width(mm)
745
Packaging depth [mm]
715
Packaging height(mm)
780
Net weight [kg]
39
Weight
44

Features

Control
Glass touch
Defrosting
Automatic
Anti Vibration
Yes
Cooling technique
Anti vibration compressor
Possibility to rehinge door
No
Winter function
No

Technical specifications

Energieffektivitetsindeks
169.2
Energieffektivitetsklasse(EEI)
G
Årligt energiforbrug
140
Climate class
N (+16 °C til +32 °C)
Air circulation
Yes
Maximum Soundpower [dB(A)]
38
Type of plug
Schuko
Voltage [V]
230

Other specifications

EAN
5703347901867
BodyColor
Black
Material
Black painted steel and Black glass
Number of bottles
30
Number of zones
Tozone skab
Use of the appliance
The appliance is only intended for storing wine.
Installation type
Designed for built-in
SupplyCord (m)
1.5
Refrigerant
R600a
Refrigerant weight [g]
21
