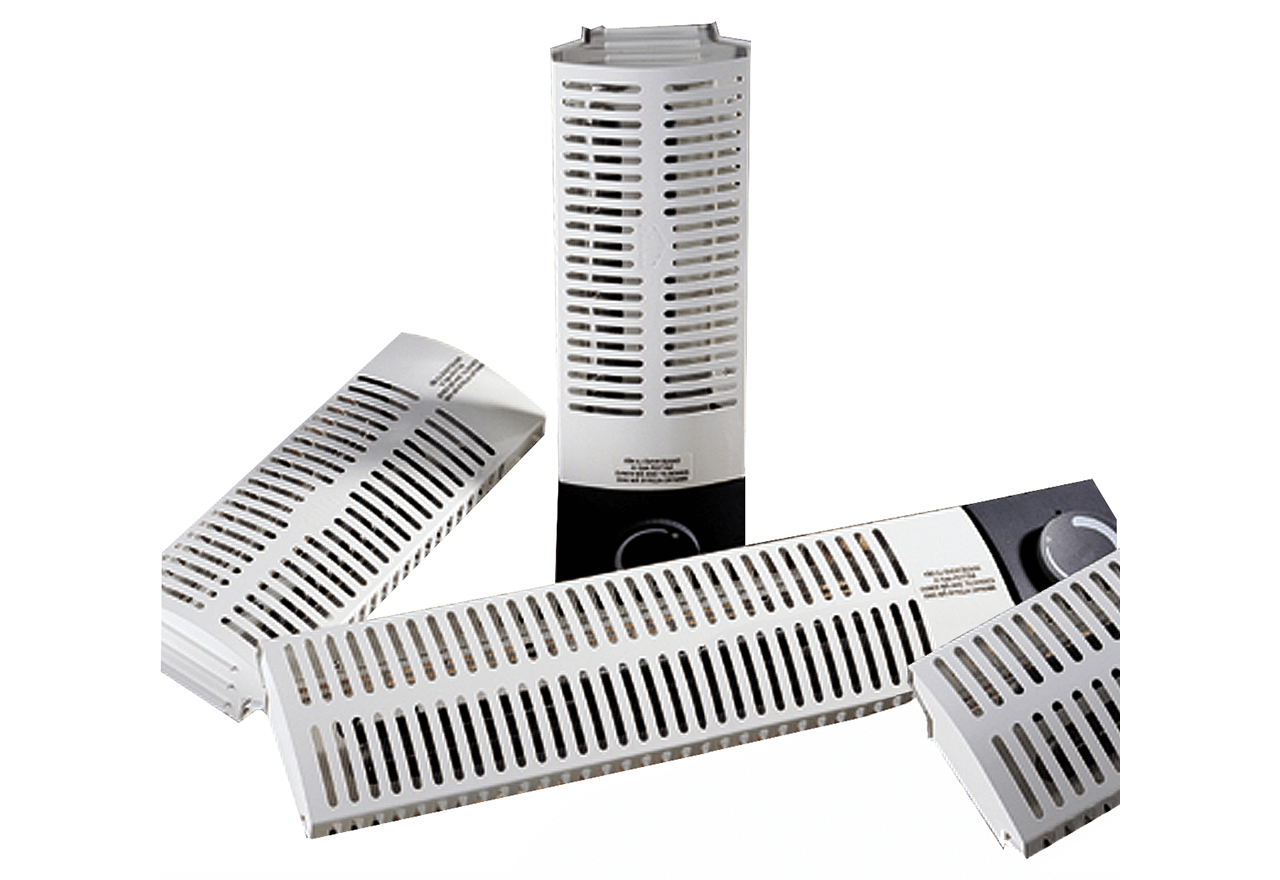

Mini element FML 300

121.22.2300.2
For frost-free environment-Effek 300 watt wall mounting, vandal-proof construction
Model
Please select variant!

Frost Guard - Mini element has a large heating capacity despite its size. The thermostat is continuously adjustable between frost protection + 5° C and + 35° C. Thanks to its design and size, frost protection fits into many different outdoor spaces in homes, caravans, basements, automatic cabinets, data cabinets, etc.

Frost guard - Mini element can be used with advantage in damp environments, e.g. greenhouses, pump houses and milk houses. A built-in overheating protection provides extra protection. Approved by DEMKO for placement in dry, as well as in damp and wet rooms. FML 300 must be mounted horizontally on a wall.

  • Stainless heating element.
  • Thermostat 5-35° C
  • Power selector
  • Built-in overheating protection

Specifications

Energy consumption [W]
300
Control
Rotary knob
Voltage [V]
230

Specifications

Energy consumption [W]
300
Control
Rotary knob
Voltage [V]
230

Weight and measurements

Net weight [kg]
2.5
Weight
2.8

Features

Control
Rotary knob
Wi-Fi
No

Technical specifications

Energy consumption [W]
300
Kaplingsklasse
IP31
Voltage [V]
230

Other specifications

EAN
5703347101120
El-nummer
9978863008
VVS-nummer
475397130
BodyColor
White
SupplyCord (m)
1.2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual
