TXHPS12000 Wifi

606.21.1200.2

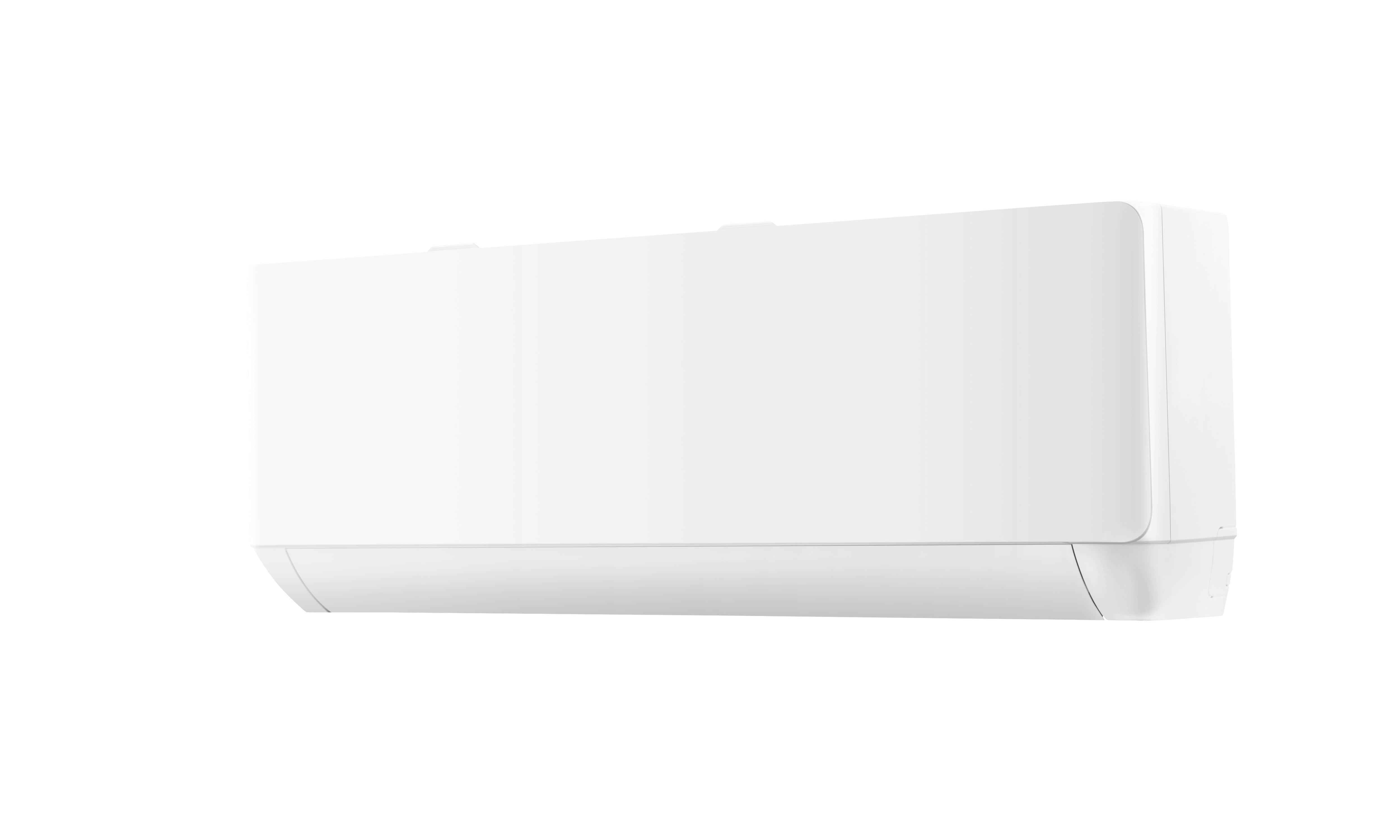

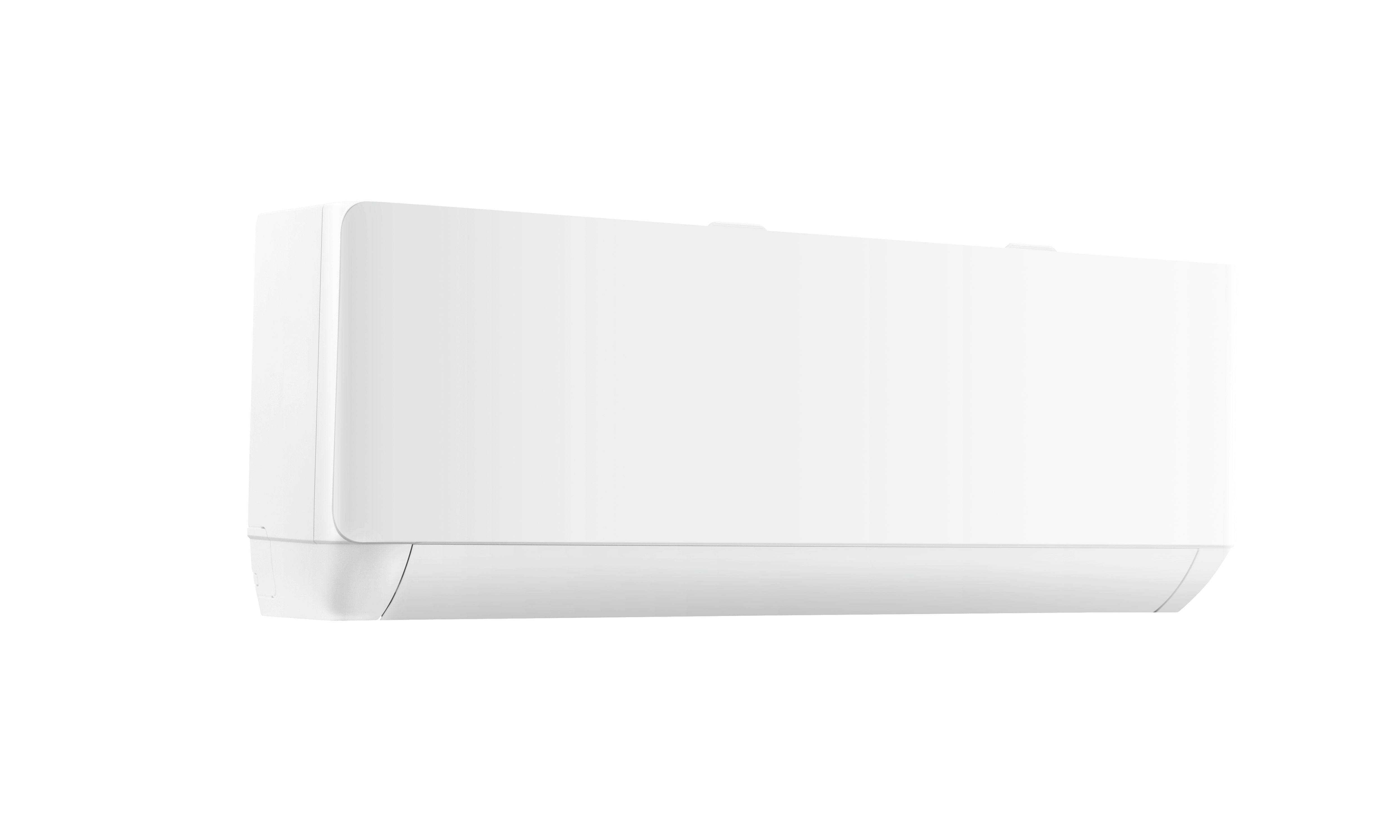

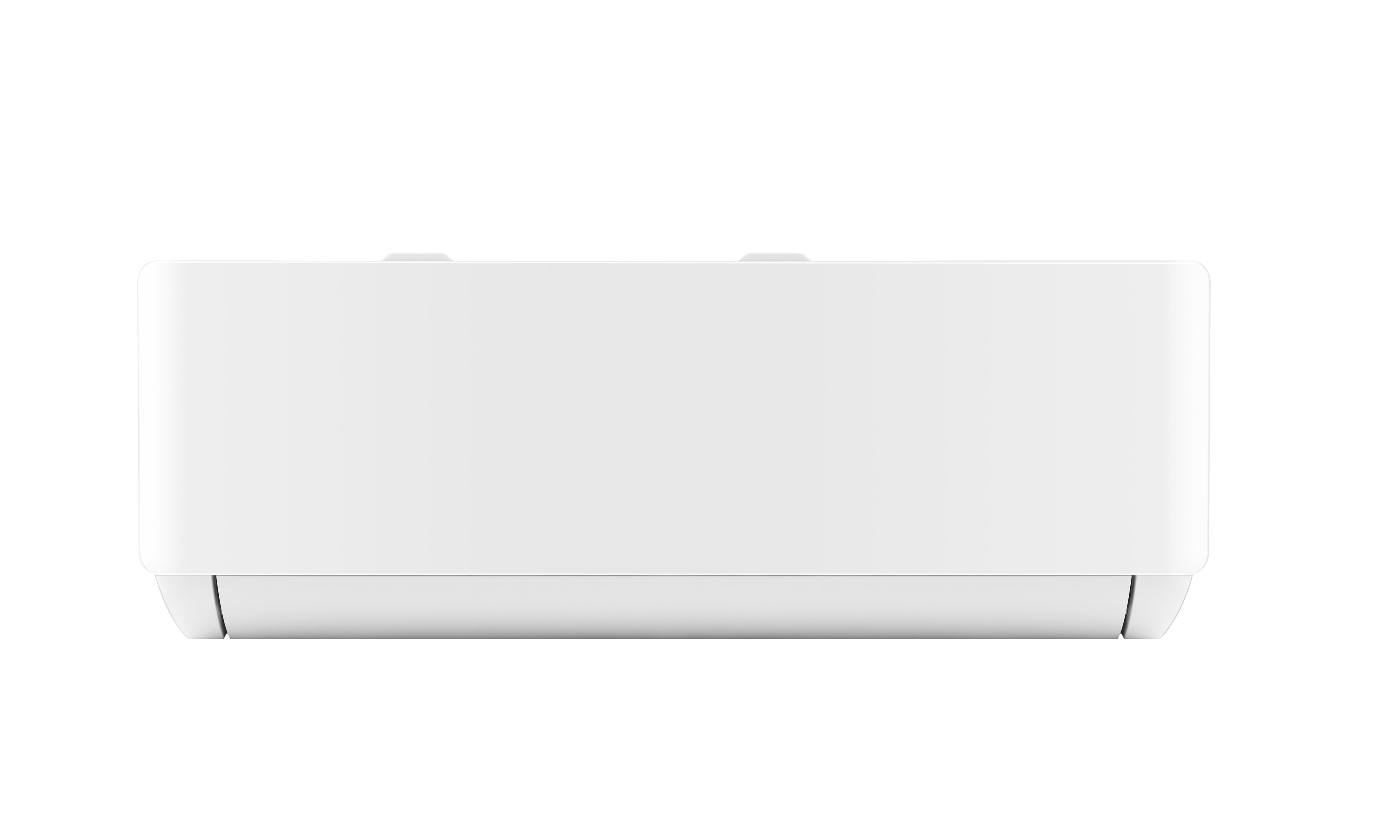

THERMEX TXHPS12000 – Heat Pump / Air Conditioner / Dehumidifier - WiFi heat pump covers up to 50 m2
THERMEX TXHPS12000 – Heat Pump / Air Conditioner / Dehumidifier - WiFi heat pump covers up to 50 m2.

Heating and ventilation in the home are necessary to avoid mold, fungus, decay, and to reduce the amount of radon gas.
The THERMEX TXHPS12000 WiFi heat pump provides both energy-saving heating and ventilation – the result is a healthy indoor climate for the residents of the house.
Partly in the form of providing heat to the house in an energy-saving way compared to a traditional electrical solution, and also by creating air circulation in the room.

Heating
The THERMEX TXHPS12000 WiFi Heat Pump draws in air and heats it to the desired temperature level.

Cooling
On hot days, the THERMEX TXHPS12000 WiFi heat pump can be set to cool the room, ensuring a comfortable temperature.

Dehumidification
The THERMEX TXHPS12000 WiFi Heat Pump can take care of removing condensation and moisture from the room.

Overall, a simple and practical solution
The features of the THERMEX TXHPS12000 WiFi heat pump cover everyone's needs.
The THERMEX TXHPS12000 WiFi heat pump is suitable for all rooms in the house or commercial building. The room temperature can be set for heating 17~32 °C / cooling 0~30 °C. The heat pump can be installed to ensure a good and healthy indoor climate.

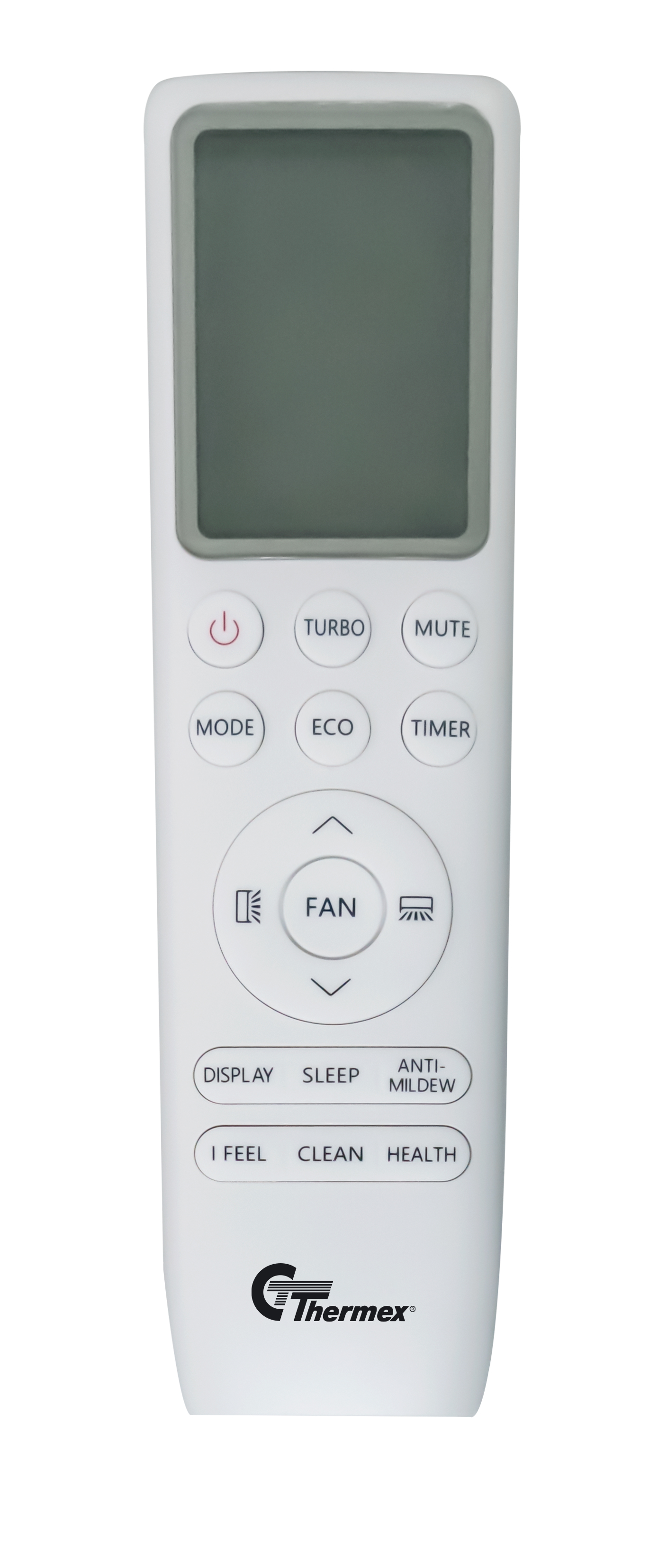

  • WiFi and remote control included in the heat pump
  • "I feel" function via the thermostat in the remote control
  • Frost guard and drying function

Specifications

Control
Remote control
Material
Plastic
SEER
8.5
Energy Efficiency Class (cooling)
A+++
Annual Electricity Consumption (cooling)[kWh]
145
SCOP (Average season)
4.6
Inside sound power levels (cooling)[dB(A)]
53
Inside sound power levels (heating)[dB(A)]
53

Specifications

Control
Remote control
Material
Plastic
SEER
8.5
Energy Efficiency Class (cooling)
A+++
Annual Electricity Consumption (cooling)[kWh]
145
SCOP (Average season)
4.6
Inside sound power levels (cooling)[dB(A)]
53
Inside sound power levels (heating)[dB(A)]
53

Weight and measurements

Packaging width(mm)
890
Packaging depth [mm]
575
Packaging height(mm)
593
Net weight [kg]
34.5
Weight
40
Product weight (indoor unit) [kg]
9.5
Product weight (outdoor unit) [kg]
25
Width (indoor unit) [mm]
820
Depth (indoor unit) [mm]
195
Height (indoor unit) [mm]
306

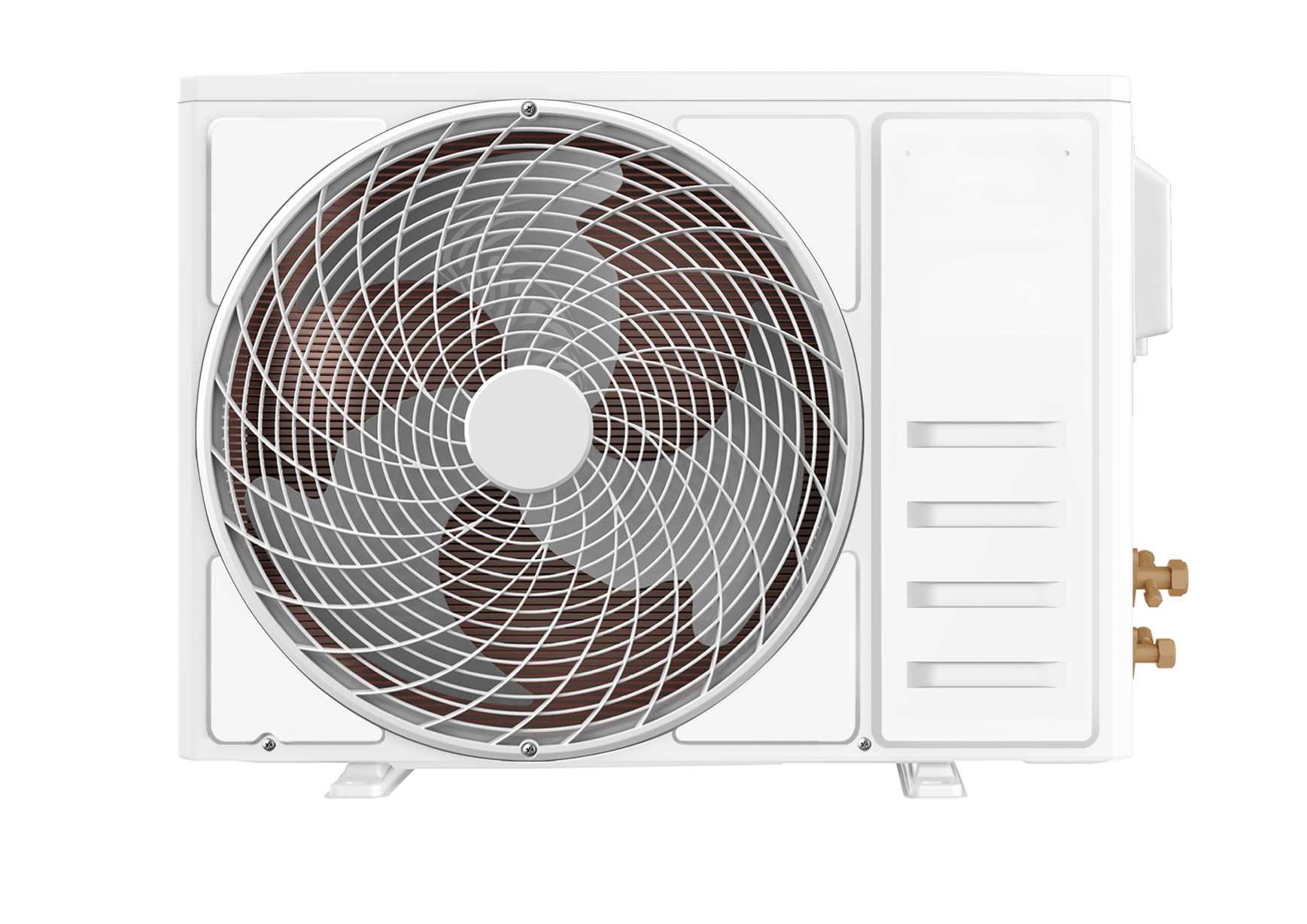

Width (outdoor unit) [mm]
795
Depth (outdoor unit) [mm]
253
Height (outdoor unit) [mm]
544
Maximum pipe length [m]
25
Maximum height difference [m]
10
Pipe diameter (liquid)
1/4"
Pipe diameter (gas)
3/8"

Features

Control
Remote control
Wi-Fi
Yes

Technical specifications

Power supply [V]
230
Kaplingsklasse
IPX4
Luftmængde ved 0 Pascal
670
Refrigerant GWP
675
SEER
8.5
Energy Efficiency Class (cooling)
A+++
Annual Electricity Consumption (cooling)[kWh]
145
Design Load (cooling)[kW]
3.5
Inside sound power levels (cooling)[dB(A)]
53
Outside sound power levels (cooling)[dB(A)]
63
SCOP (Average season)
4.6
Energy Efficiency Class (Average season) (heating)
A++
Annual Electricity Consumption (Average season) (heating)[kWh]
792
Inside sound power levels (heating)[dB(A)]
53
Outside sound power levels (heating)[dB(A)]
63
SCOP (Warmer season)
5.6
Energy Efficiency Class (Warmer season) (heating)
A+++
Annual Electricity Consumption (Warmer season) (heating)[kWh]
825
Design Load (Warmer season) (heating)[kW]
3.3
Declared capacity (Warmer season) (heating)[kW]
3.3
SCOP (Colder season)
3.4
Energy Efficiency Class (Colder season) (heating)
A
Annual Electricity Consumption (Colder season) (heating)[kWh]
2162
Design Load (Colder season) (heating)[kW]
3.5
Declared capacity (Colder season) (heating)[kW]
2.2
Backup heating capacity (Colder season) (heating)[kW]
1.3
Design Load (Average season) (heating)[kW]
2.6
Declared capacity (Average season) (heating)[kW]
2.4
Backup heating capacity (Average season) (heating)[kW]
0.2
Operation range (heating) [°C]
-20~+24
Operation range (cooling) [°C]
-15~+50
Temperature setting (heating) [°C]
0~30
Temperature setting (cooling) [°C]
17~32

Other specifications

EAN
5703347604904
BodyColor
White
Material
Plastic
Refrigerant
R32
Refrigerant weight [g]
630
