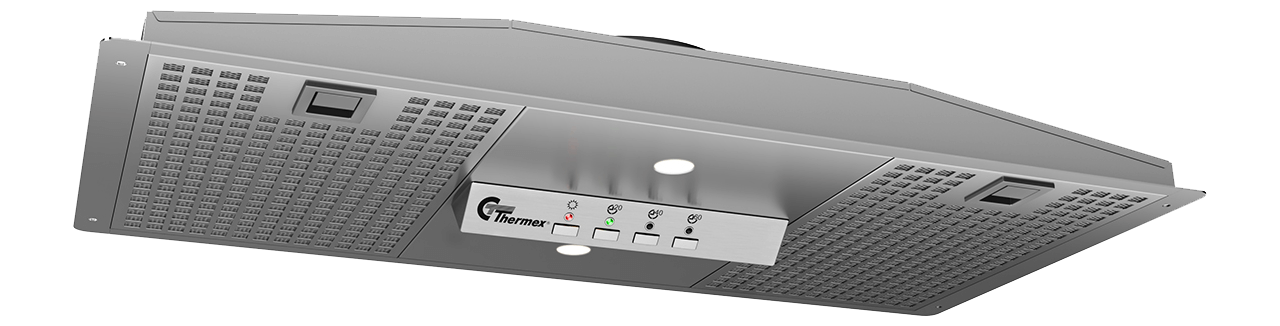

Central TFHCE 460 II 548 mm Stainless

530.26.5018.2
Thermex TFHCE 460 II Central ventilation is one of the market's most efficient extractor hoods for central ventilation. The design of the hood provides maximum collection with a minimum of air flow.

Thermex Central TFHCE 460 II is an extractor hood which has an extra low and narrow construction height so that it fits into various built-ins and grottoes. It has a built-in switch so that it can cooperate with the ventilation system in the building. Simple button operation on the front which opens the damper to the common flue fully for 20, 40 and 60 minutes respectively. The damper is easily adjusted from the button panel. Perfect for you who have a special built-in solution you want to keep and just need to replace the exhaust part. Tested and recognized by the authorities for communal flues.

  • Timer function: 20, 40, 60 min
  • Built-in switch (Trigger)
  • Simple operation

Specifications

Control
Soft touch
Material
Stainless steel
Odour extraction >75% installation height 600 mm [m3/t]
216
Voltage [V]
230

Decoration filter

The decorative filter is an ordinary metal filter, but it is designed in such a way that the filter appears more aesthetically pleasing. It can be washed in a dishwasher, but it is recommended to wash it by hand.

Projekteringsfane

Odour extraction test standard
EN 13141-3

Specifications

Control
Soft touch
Material
Stainless steel
Odour extraction >75% installation height 600 mm [m3/t]
216
Voltage [V]
230

Weight and measurements

Maximum width [mm]
548
Maximum depth [mm]
278
Maximum height [mm]
250
Outlet dimension (mm)
Ø125
Packaging width(mm)
300
Packaging depth [mm]
385
Packaging height(mm)
620
Net weight [kg]
4
Weight
6.2

Features

Control
Soft touch
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Colour temperature [Kelvin]
3000
Lamp consumption [W]
2
Total consumption of light (WL) [W]
4
Type of plug
Schuko
Odour extraction >75% installation height 600 mm [m3/t]
216
Odour extraction test standard
EN 13141-3
Voltage [V]
230

Other specifications

EAN
5703347519826
El-nummer
9978872426
Type of grease filter
Metal filter
Number of filters
2
Number of speeds ex (boost)
2
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Central ventilation
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
Material
Stainless steel
SupplyCord (m)
2

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Indreguleringsdiagram

Installation manual
