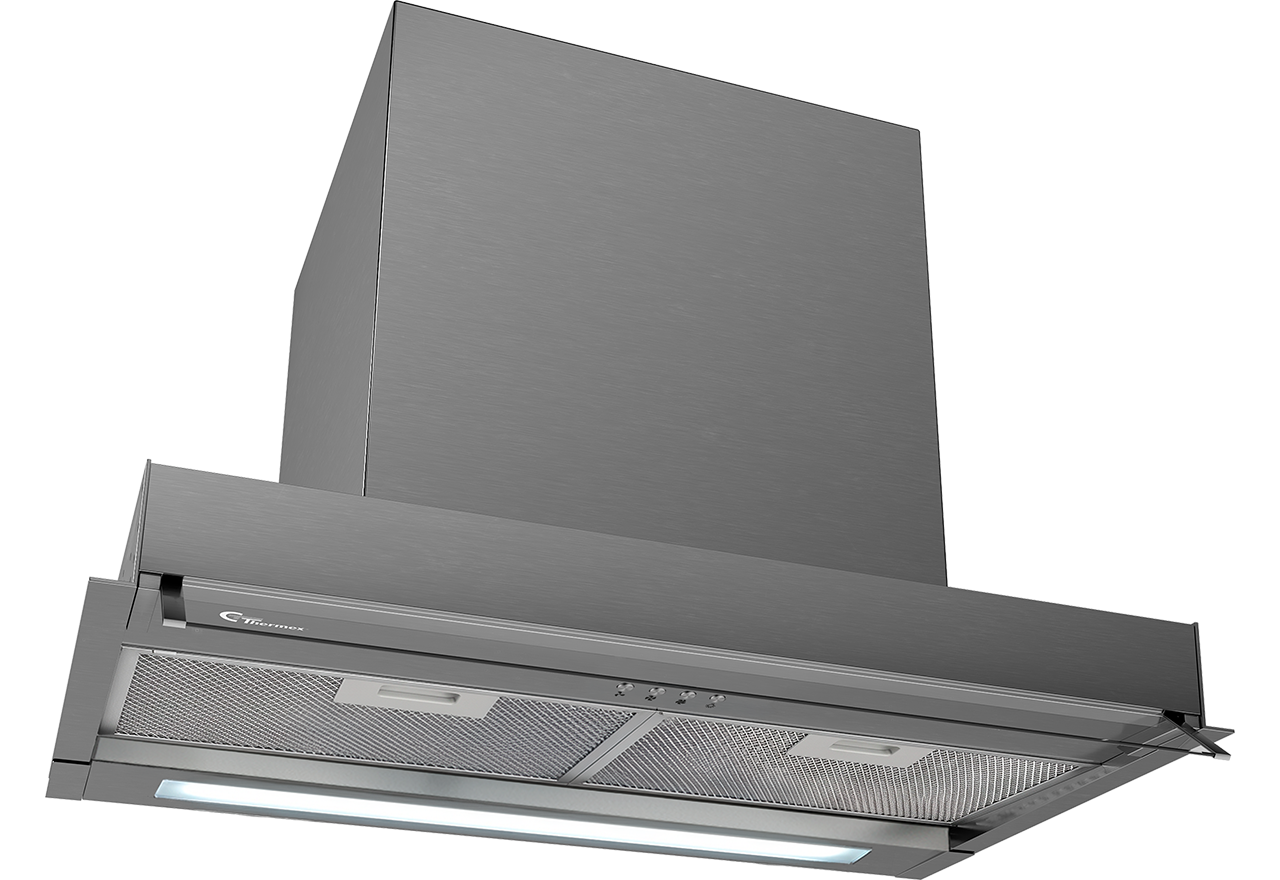

Integro 51 II Basic LED Strip Inox 60 cm
513.21.0168.2
Integro 51 II Basic Stainless Steel 60 cm is a sleek integrated cooker hood with LED strip, soft touch control and efficient extraction up to 334 m³/h.
Width
Color
Thermex Integro 51 II Basic LED strip 60 cm in stainless steel is a sleek and fully integrated cooker hood designed for installation under a wall cabinet and provides efficient ventilation with modern LED lighting.
Design and functionality
Integro 51 II Basic is developed for discreet integration into the kitchen, where it replaces the bottom of the wall cabinet and creates an elegant and streamlined look. The stainless steel finish combined with glass details provides a modern appearance that fits into most kitchen designs.
The cooker hood is equipped with LED strip lighting, ensuring even and comfortable illumination over the cooking area and improving working conditions while cooking.
Functions and operation
The cooker hood is easily operated via a soft touch panel, where you can quickly choose between three speeds depending on your needs. In addition, the cooker hood has a separate on/off function for the light, allowing you to adjust both extraction and lighting individually.
With a maximum extraction rate of 334 m³/h, the cooker hood effectively handles steam, smoke and cooking odours in everyday use.
Performance and noise level
Integro 51 II Basic combines efficient extraction with a low noise level from only 55 dB(A), ensuring a comfortable kitchen experience – even at higher speeds.
The efficient LED lighting also contributes to economical everyday operation.
Easy cleaning and maintenance
The cooker hood is equipped with decorative grease filters that can easily be removed and cleaned. The filters are dishwasher safe, making maintenance quick and simple.
The robust choice of materials in stainless steel and glass ensures long durability and easy cleaning of surfaces.
Installation
The installation is simple, as the cooker hood is designed to fit directly into standard wall cabinets. It can be used for both ducted extraction and recirculation with a carbon filter, providing flexible installation options.
Specifications
Capacity: 184–334 m³/h
Noise level: 55–65 dB(A)
Control: Soft touch
Material: Stainless steel and glass
Lighting: LED strip (3000 K)
Dimensions: 600 x 308 x 389 mm
Design and functionality
Integro 51 II Basic is developed for discreet integration into the kitchen, where it replaces the bottom of the wall cabinet and creates an elegant and streamlined look. The stainless steel finish combined with glass details provides a modern appearance that fits into most kitchen designs.
The cooker hood is equipped with LED strip lighting, ensuring even and comfortable illumination over the cooking area and improving working conditions while cooking.
Functions and operation
The cooker hood is easily operated via a soft touch panel, where you can quickly choose between three speeds depending on your needs. In addition, the cooker hood has a separate on/off function for the light, allowing you to adjust both extraction and lighting individually.
With a maximum extraction rate of 334 m³/h, the cooker hood effectively handles steam, smoke and cooking odours in everyday use.
Performance and noise level
Integro 51 II Basic combines efficient extraction with a low noise level from only 55 dB(A), ensuring a comfortable kitchen experience – even at higher speeds.
The efficient LED lighting also contributes to economical everyday operation.
Easy cleaning and maintenance
The cooker hood is equipped with decorative grease filters that can easily be removed and cleaned. The filters are dishwasher safe, making maintenance quick and simple.
The robust choice of materials in stainless steel and glass ensures long durability and easy cleaning of surfaces.
Installation
The installation is simple, as the cooker hood is designed to fit directly into standard wall cabinets. It can be used for both ducted extraction and recirculation with a carbon filter, providing flexible installation options.
Specifications
Capacity: 184–334 m³/h
Noise level: 55–65 dB(A)
Control: Soft touch
Material: Stainless steel and glass
Lighting: LED strip (3000 K)
Dimensions: 600 x 308 x 389 mm
- 60 cm fully integrated cooker hood in stainless steel
- LED strip provides even and comfortable lighting
- Soft touch control with 3 speeds
- Extraction capacity up to 334 m³/h
- Low noise level from only 55 dB(A)
Specifications
Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Control
Soft touch
Material
Stainless steel and glass
Energy consumption [W]
76
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Control
Soft touch
Material
Stainless steel and glass
Energy consumption [W]
76
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
308
Maximum height [mm]
389
Outlet dimension (mm)
Ø150
Packaging width(mm)
655
Packaging depth [mm]
415
Packaging height(mm)
370
Net weight [kg]
10.5
Weight
12.5
Features
Control
Soft touch
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
179
LE value [lux/W]
29.9
LE-class
A
EEI-value
56
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
6
Total consumption of light (WL) [W]
6
GFE-value
69.7
GFE-class
D
FDE-value
21.1
FDE-class
C
AEC [kWh/h]
24.7
Energy consumption [W]
76
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.2
Motor Power [W]
70
Voltage [V]
230
Other specifications
EAN
5703347534973
Type of grease filter
Decorative filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8450.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
BodyColor
Stainless steel
Front panel material
Clear glass
Material
Stainless steel and glass
Battery type
None
Number of batteries
0
Downloads
Here you will find all documents relevant to this product
