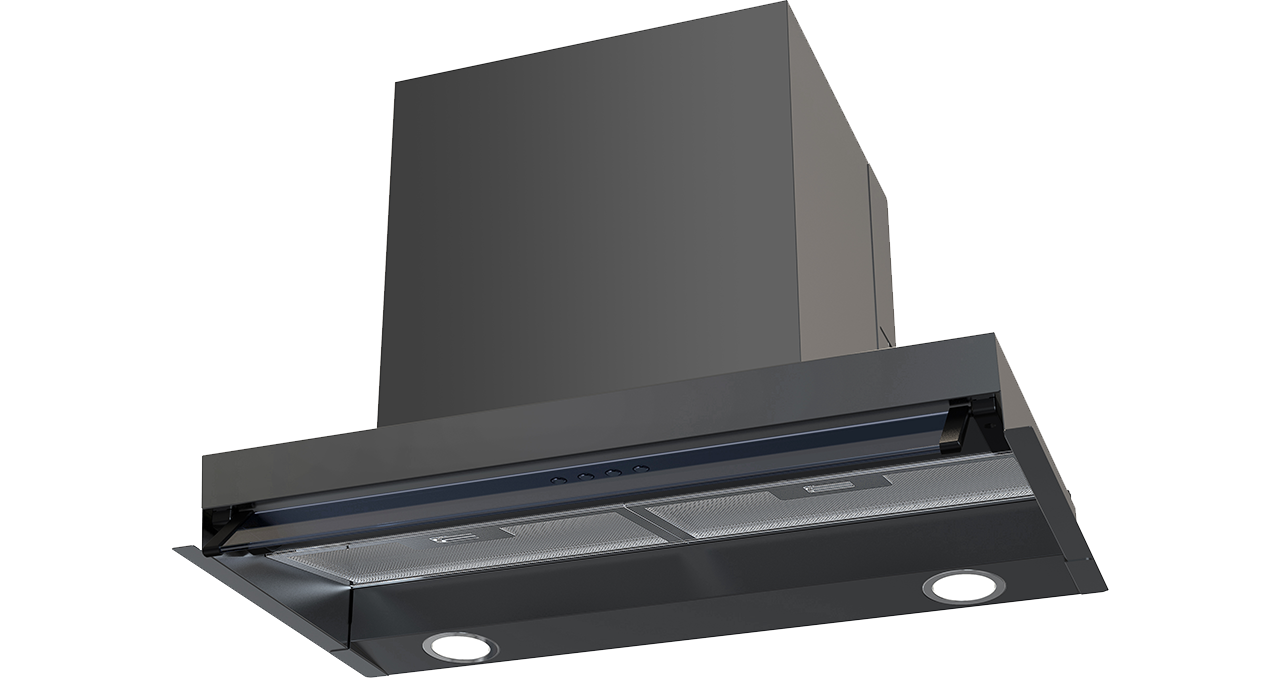

Integro 51 II basic 60 cm antracit
513.21.0062.2
Integro 51 II Basic Antracit 60 cm is a built-in hood that is fully integrated into the wall cabinet. Simple installation and design.
Width
Color
Integro 51 II Basic Antracit 60 cm from Thermex is a fully integrated built-in hood designed for installation under a wall cabinet. Made of antracit painted steel with a tilting glass panel in the front, it features two decorative grease filters and two LED lamps. Cleaning is a simple affair - a quick wipe with a damp cloth, and the filters can be washed in the dishwasher. The installation is straightforward, as the hood replaces the bottom of the cabinet, making it easy to integrate into the kitchen's design.
The operation of Integro 51 II Basic Antracit is straightforward with push buttons. It offers three speed settings and an on/off function for the light, allowing the user to customize the suction power and lighting as needed.
With a suction capacity of up to 334 m3/h, Integro 51 II Basic Antracit can effectively handle the extraction of vapors and odors during cooking. At the same time, the noise level is kept low at only 55 dB(A), ensuring a comfortable and quiet operation, even during intensive use.
- Simple installation
- Affordable integrated hood
- Suction power up to 334 m3/h
- Noise level from only 55 dB(A)
Specifications
Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
73
Control
Soft touch
Material
Black painted steel and Black glass
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
73
Control
Soft touch
Material
Black painted steel and Black glass
Voltage [V]
230
Weight and measurements
Maximum width [mm]
600
Maximum depth [mm]
308
Maximum height [mm]
389
Outlet dimension (mm)
Ø150
Packaging width(mm)
655
Packaging depth [mm]
415
Packaging height(mm)
370
Net weight [kg]
10.5
Weight
12.5
Features
Control
Soft touch
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
LE value [lux/W]
34.3
LE-class
A
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
69.7
GFE-class
D
FDE-value
21.1
FDE-class
C
Energy consumption [W]
73
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.2
Motor Power [W]
70
Voltage [V]
230
Other specifications
EAN
5703347533297
Type of grease filter
Decorative filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8450.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
BodyColor
Black
Material
Black painted steel and Black glass
Downloads
Here you will find all documents relevant to this product
