Integro 51 II Basic 90 cm

513.21.0098.2
Integro 51 II Basic 90 cm is a built-in hood that is fully integrated into the wall cabinet. Simple installation and design.
Width
Color
Please select variant!

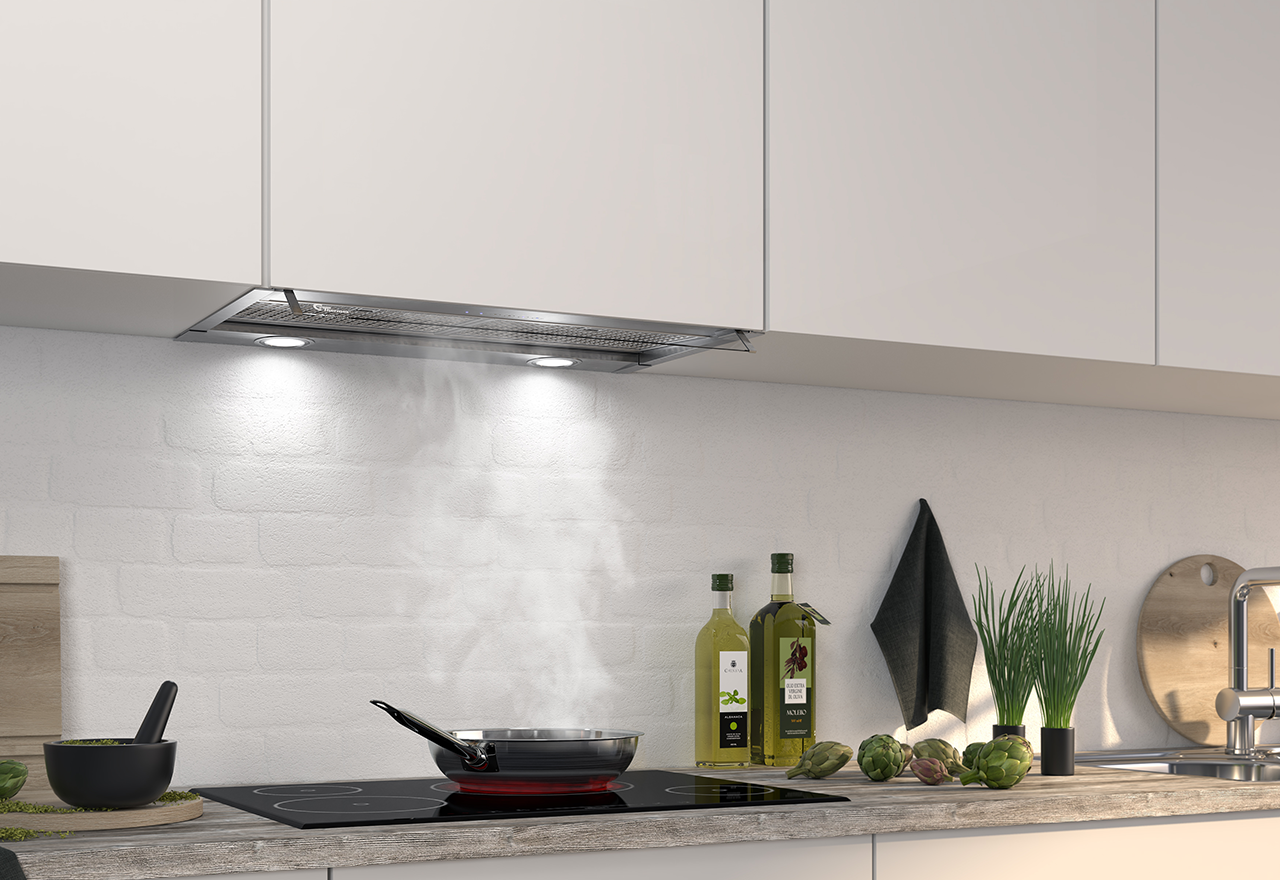

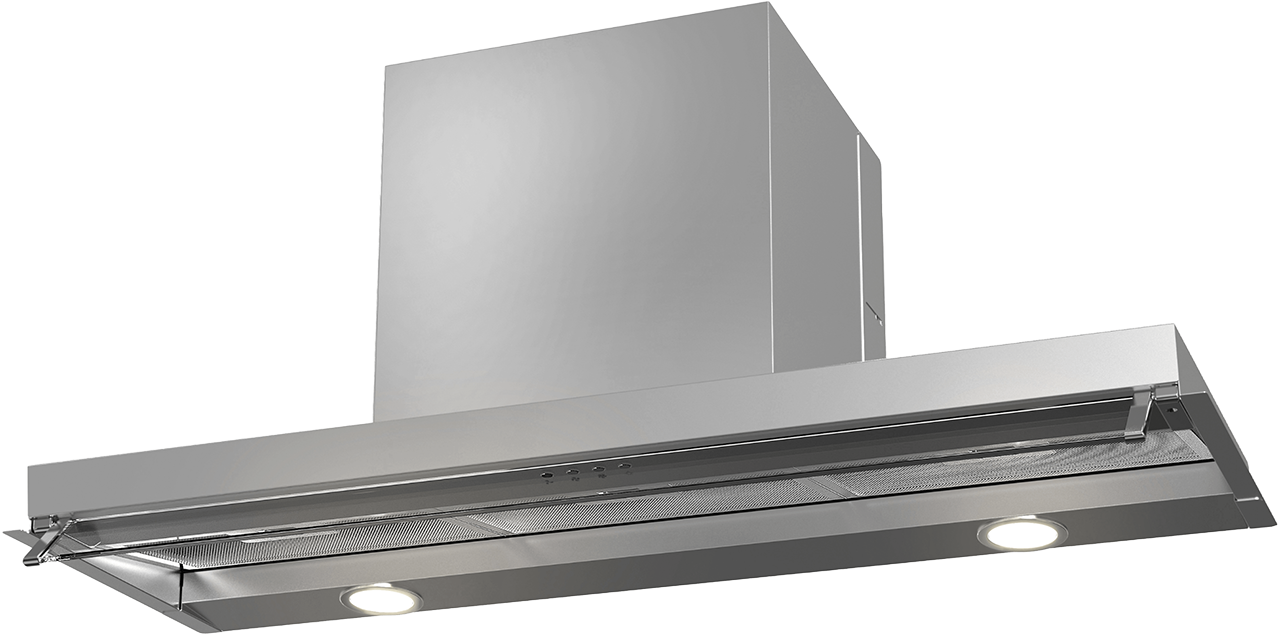

Integro 51 II Basic 90 cm from Thermex is a fully integrated built-in hood designed for installation under a wall cabinet. Made of stainless steel with a tilting glass panel in the front, it features two decorative grease filters and two LED lamps. Cleaning is a simple affair - a quick wipe with a damp cloth, and the filters can be washed in the dishwasher. The installation is straightforward, as the hood replaces the bottom of the cabinet, making it easy to integrate into the kitchen's design.

The operation of Integro 51 II Basic is straightforward with push buttons. It offers three speed settings and an on/off function for the light, allowing the user to customize the suction power and lighting as needed.

With a suction capacity of up to 334 m3/h, Integro 51 II Basic can effectively handle the extraction of vapors and odors during cooking. At the same time, the noise level is kept low at only 55 dB(A), ensuring a comfortable and quiet operation, even during intensive use.

  • Simple installation
  • Affordable integrated hood
  • Suction power up to 334 m3/h
  • Noise level from only 55 dB(A)

Specifications

Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
73
Control
Soft touch
Material
Stainless steel and glass
Voltage [V]
230

Specifications

Minimum airflow [m3/h]
184
Minimum-Soundpower [dB(A)]
55
Maximum-airflow [m3/h]
334
Maximum-Soundpower [dB(A)]
65
Energy consumption [W]
73
Control
Soft touch
Material
Stainless steel and glass
Voltage [V]
230

Weight and measurements

Maximum width [mm]
900
Maximum depth [mm]
308
Maximum height [mm]
389
Outlet dimension (mm)
Ø150
Packaging width(mm)
955
Packaging depth [mm]
415
Packaging height(mm)
370
Net weight [kg]
12
Weight
14

Features

Control
Soft touch
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

LE value [lux/W]
24.3
LE-class
B
EEI-class
A
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.5
Total consumption of light (WL) [W]
3
GFE-value
66
GFE-class
D
FDE-value
21.1
FDE-class
C
Energy consumption [W]
73
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.2
Motor Power [W]
70
Voltage [V]
230

Other specifications

EAN
5703347532733
Type of grease filter
Decorative filter
Number of filters
3
Carbon filter as accessory
Yes
Carbon filter code
535.21.8450.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
BodyColor
Stainless steel
Material
Stainless steel and glass

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
