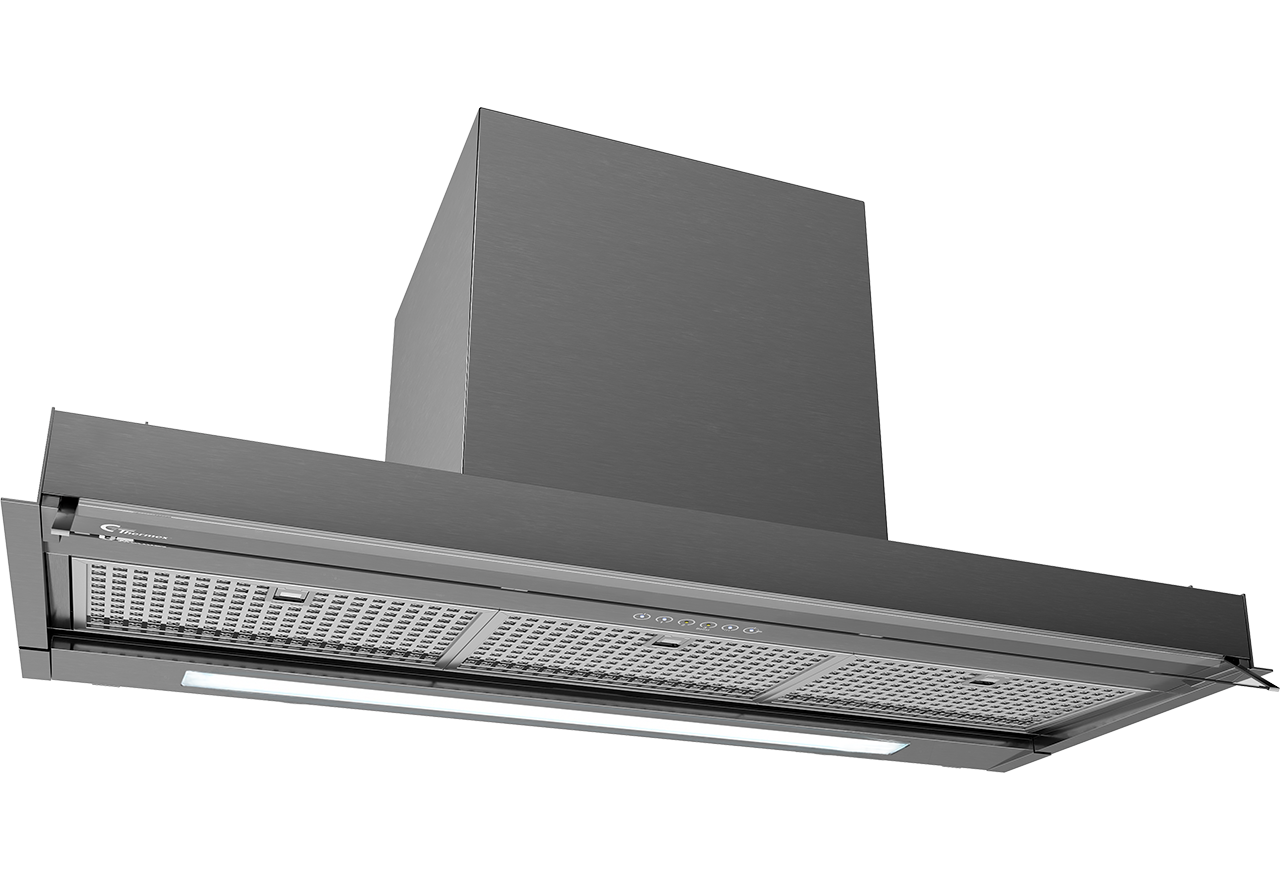

Integro 51 II LED Strip 90 cm
513.21.1198.2
Thermex Integro 51 II LED strip 90 cm is an innovative built-in hood that replaces the cabinet base for easy installation and a discreet integrated design with efficient extraction.
Width
Thermex Integro 51 II LED strip 90 cm is an innovative built-in hood that replaces the cabinet base, ensuring easy installation and a discreet, fully integrated look in the kitchen.
Design and functionality
The Integro 51 II is designed to become a natural part of the cabinet by replacing the bottom panel. This creates a clean and minimalist appearance without visible cut-outs, while maintaining maximum storage space. The integrated LED strip provides even and comfortable lighting over the hob.
Easy installation
The unique construction makes installation significantly easier than traditional built-in solutions, as no cut-out is required in the cabinet. The hood replaces the base of the cabinet, saving time and ensuring a precise and stable result.
Functions and operation
The hood features soft touch controls for easy access to speeds and functions. With the boost function, you can quickly increase extraction power when needed, for example during frying, ensuring an efficient indoor climate.
Performance and comfort
The built-in motor delivers airflow up to 700 m³/h with boost, while the noise level starts from 52 dB(A), making it suitable for both open and closed kitchen environments.
Materials and maintenance
The Integro 51 II is made of stainless steel and glass, ensuring durability and a stylish appearance. The filters are easy to remove and clean, making everyday maintenance simple.
Specifications
Airflow: up to 700 m³/h
Noise level: from 52 dB(A)
Energy class: B
Dimensions (W x D x H): 9000 x 348 x 370 mm
Duct connection: Ø150 mm
Control: Soft touch
Power consumption: 236 W
Material: Stainless steel and glass
Power supply: 230 V
Thermex Integro 51 II LED strip is the ideal solution for those who want a discreet, efficient and easy-to-install hood with modern features and elegant integration.
Design and functionality
The Integro 51 II is designed to become a natural part of the cabinet by replacing the bottom panel. This creates a clean and minimalist appearance without visible cut-outs, while maintaining maximum storage space. The integrated LED strip provides even and comfortable lighting over the hob.
Easy installation
The unique construction makes installation significantly easier than traditional built-in solutions, as no cut-out is required in the cabinet. The hood replaces the base of the cabinet, saving time and ensuring a precise and stable result.
Functions and operation
The hood features soft touch controls for easy access to speeds and functions. With the boost function, you can quickly increase extraction power when needed, for example during frying, ensuring an efficient indoor climate.
Performance and comfort
The built-in motor delivers airflow up to 700 m³/h with boost, while the noise level starts from 52 dB(A), making it suitable for both open and closed kitchen environments.
Materials and maintenance
The Integro 51 II is made of stainless steel and glass, ensuring durability and a stylish appearance. The filters are easy to remove and clean, making everyday maintenance simple.
Specifications
Airflow: up to 700 m³/h
Noise level: from 52 dB(A)
Energy class: B
Dimensions (W x D x H): 9000 x 348 x 370 mm
Duct connection: Ø150 mm
Control: Soft touch
Power consumption: 236 W
Material: Stainless steel and glass
Power supply: 230 V
Thermex Integro 51 II LED strip is the ideal solution for those who want a discreet, efficient and easy-to-install hood with modern features and elegant integration.
- Replaces the cabinet base for easy installation
- Discreet integrated design with LED strip lighting
- Airflow up to 700 m³/h with boost function
- Noise level from 52 dB(A) for comfortable operation
- Soft touch control and energy class B
Specifications
Minimum airflow [m3/h]
278
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
602
Maximum-Soundpower [dB(A)]
69
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
70
Control
Soft touch
Material
Stainless steel and glass
Energy consumption [W]
236
Voltage [V]
230
Specifications
Minimum airflow [m3/h]
278
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
602
Maximum-Soundpower [dB(A)]
69
Airflow with boost [m3/h]
700
Soundpower boost [dB(A)]
70
Control
Soft touch
Material
Stainless steel and glass
Energy consumption [W]
236
Voltage [V]
230
Weight and measurements
Maximum width [mm]
900
Maximum depth [mm]
348
Maximum height [mm]
370
Outlet dimension (mm)
Ø150
Packaging width(mm)
955
Packaging depth [mm]
415
Packaging height(mm)
370
Net weight [kg]
12.5
Weight
14.5
Features
Control
Soft touch
Boost funktion
Yes
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No
Technical specifications
Illumination (Emiddle) [lux]
158
LE value [lux/W]
26.3
LE-class
B
EEI-value
56.2
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
6
Total consumption of light (WL) [W]
6
GFE-value
67.1
GFE-class
D
FDE-value
28.3
FDE-class
A
AEC [kWh/h]
44
Energy consumption [W]
236
Energiforbrug standby (Ps) [W]
0.4
Motor Power [W]
230
Voltage [V]
230
Other specifications
EAN
5703347535031
Type of grease filter
Metal filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.21.8400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel and glass
Material
Stainless steel and glass
Battery type
None
Number of batteries
0
Downloads
Here you will find all documents relevant to this product
