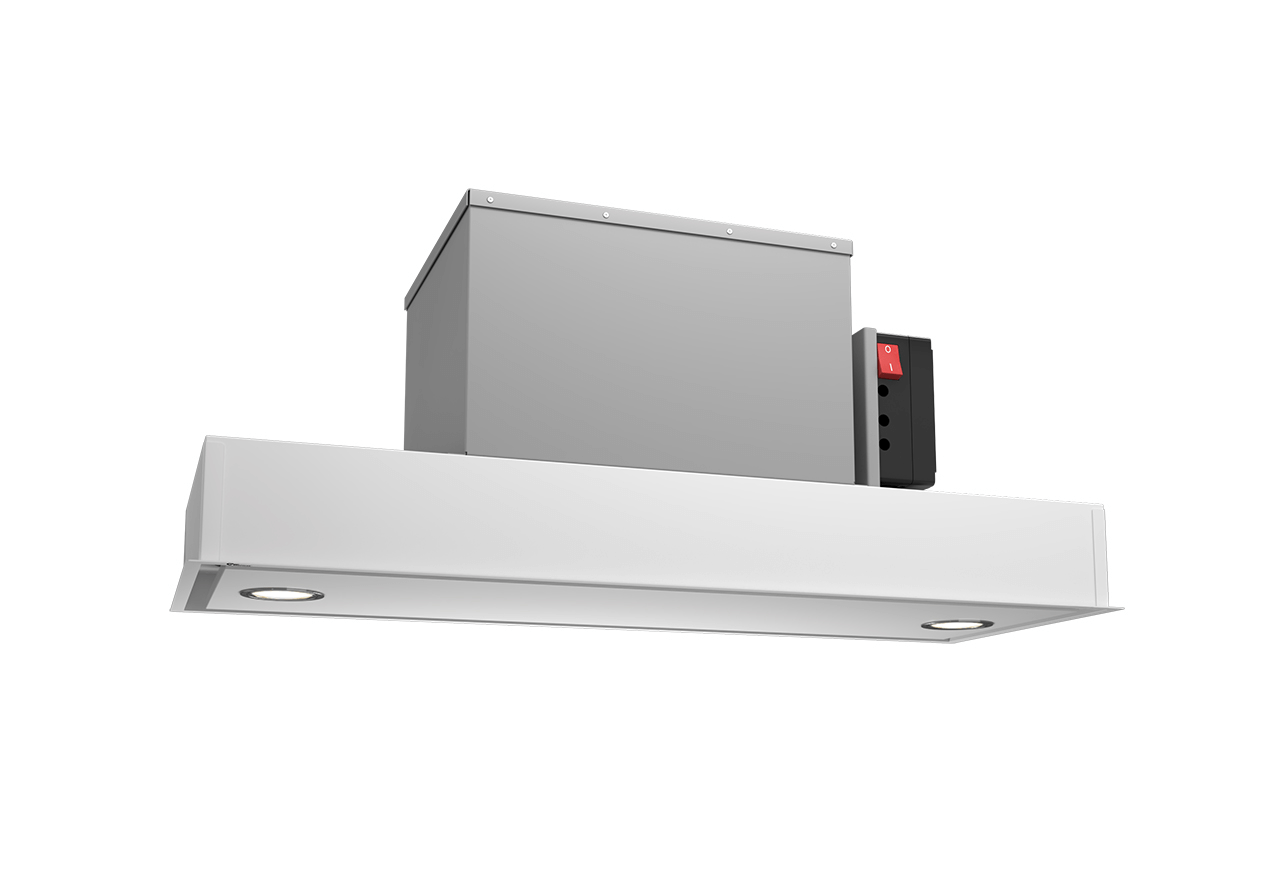

Metz Micro 750 mm white with motor

423.19.6801.2
Thermex Metz Micro 750 mm in white with motor is a minimalist built-in cooker hood that is hidden in the wall cabinet. The motor is an efficient Eco motor, which ensures low noise level.
Width
Color hood
Motor type
Please select variant!

Thermex Metz micro 750 mm in white with motor is a stylish built-in cooker hood that is suitable for smaller kitchens or for installation in a wall cabinet. Thermex «All Possibilities» solution means that it can be adapted to all homes and all types of extraction and ventilation systems, including Thermex Plasmex®.

The cooker hood is controlled by the included remote control or automatically via the hob with Thermex Toplink®. In addition, the cooker hood can be operated via the Thermex Remote app, which can be downloaded free of charge from the App Store and Google Play. In the app, you can adjust the brightness, activate periodic ventilation and receive a filter indication.

You can also use the Voicelink functionality built into the cooker hood. Here you can control the cooker hood using only your voice via Google Assistant (Hey Google). This gives you plenty of options for operating your Thermex Metz micro. Metz micro will keep your kitchen and adjoining rooms completely free of cooking fumes and steam with the help of the powerful motor, which provides an airflow of up to 612 m³/h.

  • Movable duct connection
  • Comes with remote control
  • App control
  • Voice control via google home
  • Built-in switch (closing contact)

Specifications

Minimum airflow [m3/h]
211
Minimum-Soundpower [dB(A)]
48
Maximum-airflow [m3/h]
612
Maximum-Soundpower [dB(A)]
71
Odour extraction >75% installation height 600 mm [m3/t]
210
Control
Remote control
Material
White painted steel
Energy consumption [W]
223
Voltage [V]
230

Projekteringsfane

Odour extraction test standard
EN 61591

Specifications

Minimum airflow [m3/h]
211
Minimum-Soundpower [dB(A)]
48
Maximum-airflow [m3/h]
612
Maximum-Soundpower [dB(A)]
71
Odour extraction >75% installation height 600 mm [m3/t]
210
Control
Remote control
Material
White painted steel
Energy consumption [W]
223
Voltage [V]
230

Weight and measurements

Maximum width [mm]
750
Maximum depth [mm]
284
Maximum height [mm]
313
Outlet dimension (mm)
Ø150
Packaging width(mm)
800
Packaging depth [mm]
370
Packaging height(mm)
370
Net weight [kg]
11.5
Weight
13

Features

Control
Remote control
Boost funktion
No
Decor light
No
Timer funktion
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
Yes
Periodic room ventilation
Yes
Wi-Fi
Yes
Toplink compatible
Yes
Smarthome
Yes

Technical specifications

Illumination (Emiddle) [lux]
204
LE value [lux/W]
54
LE-class
A
EEI-class
B
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1.2
Total consumption of light (WL) [W]
2.4
GFE-value
80.9
GFE-class
C
FDE-value
27.7
FDE-class
B
AEC [kWh/h]
56.1
Energy consumption [W]
223
Energiforbrug standby (Ps) [W]
0.19
Odour extraction >75% installation height 600 mm [m3/t]
210
Odour extraction test standard
EN 61591
Motor Power [W]
220
Voltage [V]
230

Other specifications

EAN
5703347526756
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.19.3300.9
Number of carbonfilters
1
Number of speeds ex (boost)
4
Number of lamps
2
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel
SupplyCord (m)
2
Battery type
CR2032
Number of batteries
1

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

User manual

Teknisk info

Exhaust fittings
