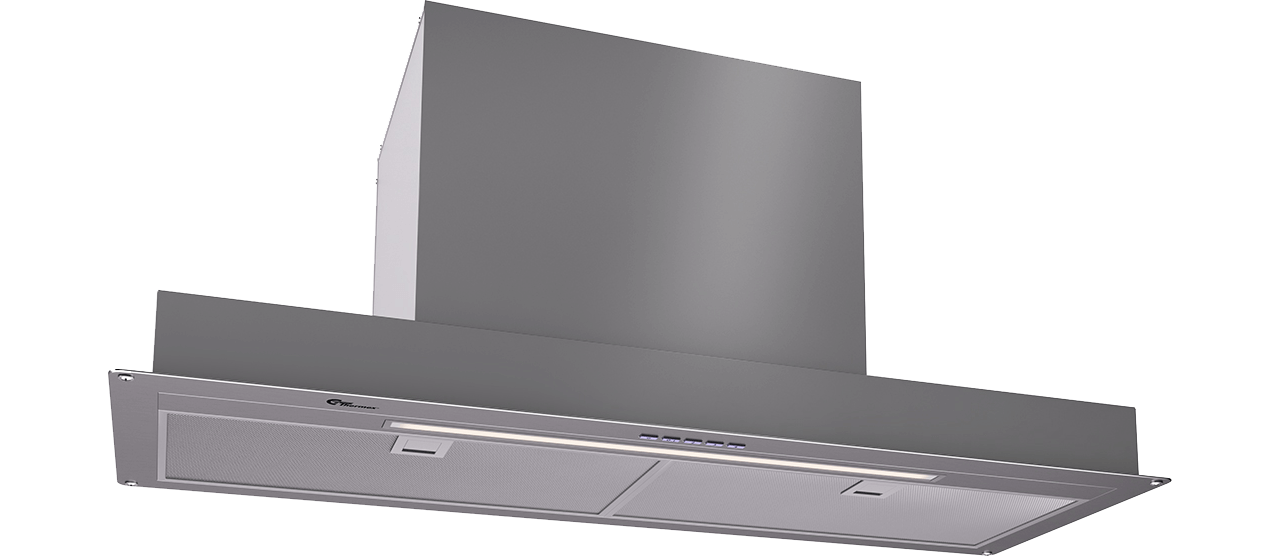

TFM 180 800 mm Stainless With motor

513.05.2288.2

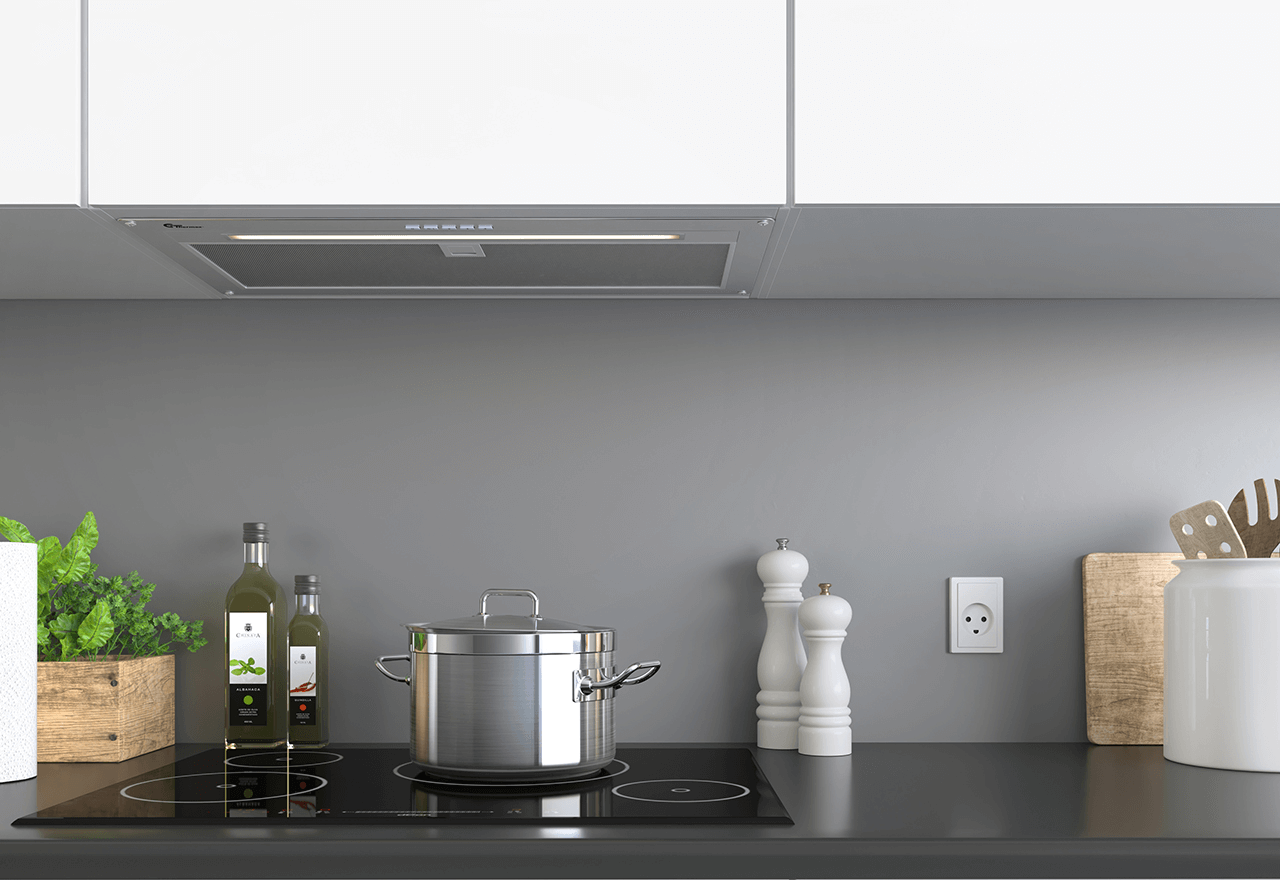

Thermex TFM 180 in stainless steel with motor is a minimalist built-in hood that is hidden in the upper cabinet. The built-in push button control makes it easy to use the hood. The motor is an energy-efficient Eco motor, which ensures a low noise level.
Width
Please select variant!

Thermex TFM 160 & 180 are stylish and minimalist hoods for installation in upper cabinets. Available in 60 and 80 cm width respectively, so regardless of which upper cabinet you have, you can find a hood that fits. Simple push button operation, 4 different speeds and LED light bar at the front. The TFM models are for you who want an affordable alternative to expensive hoods such as Metz Mini and Metz Micro, and at the same time like the raw steel look.

  • Possibility of balanced air exchange using the Trigger Link Module
  • Can be adapted to all upper cabinets
  • Simple operation
  • Built-in LED light rail

Specifications

Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
40
Maximum-airflow [m3/h]
490
Maximum-Soundpower [dB(A)]
63
Control
Soft touch
Material
Stainless steel
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Soft touch

Electronic soft touch operation for easy operation of the motor and light in the hood. The Softtouch operation is a classic in the Thermex range, due to its simple and user-friendly design.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Specifications

Minimum airflow [m3/h]
220
Minimum-Soundpower [dB(A)]
40
Maximum-airflow [m3/h]
490
Maximum-Soundpower [dB(A)]
63
Control
Soft touch
Material
Stainless steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
800
Maximum depth [mm]
290
Maximum height [mm]
339
Outlet dimension (mm)
Ø150
Packaging width(mm)
840
Packaging depth [mm]
395
Packaging height(mm)
345
Net weight [kg]
7.5
Weight
8.5

Features

Control
Soft touch
Boost funktion
No
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
110
LE value [lux/W]
28.6
LE-class
A
EEI-value
97.4
EEI-class
C
Colour temperature [Kelvin]
3000
Lamp consumption [W]
3.8
Total consumption of light (WL) [W]
3.8
GFE-value
61.2
GFE-class
E
FDE-value
20
FDE-class
C
Motor Power [W]
170
Voltage [V]
230

Other specifications

EAN
5703347522420
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.05.6200.9
Number of carbonfilters
2
Number of speeds ex (boost)
4
Number of lamps
1
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
Material
Stainless steel
