TFM 460 520 mm Stainless With motor

513.41.1068.2

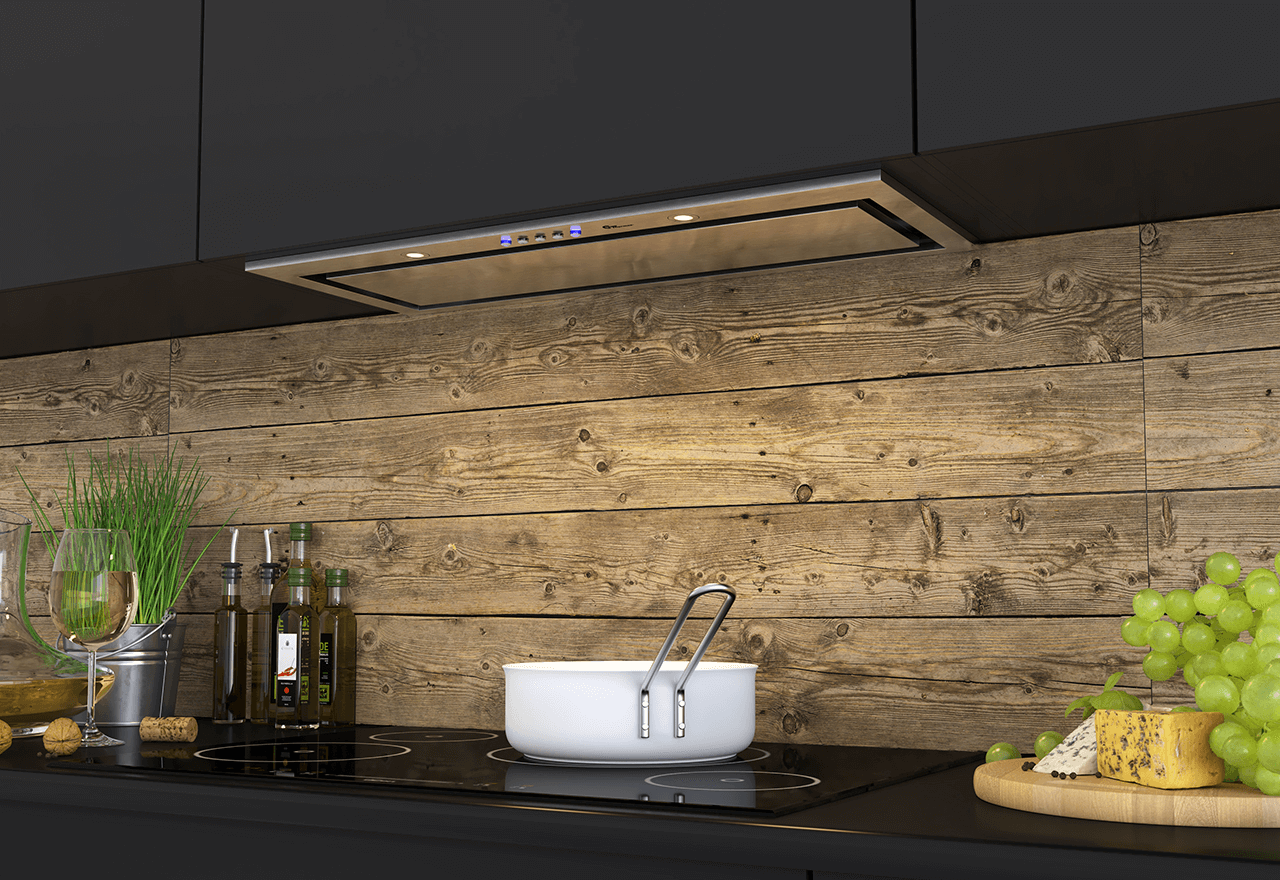

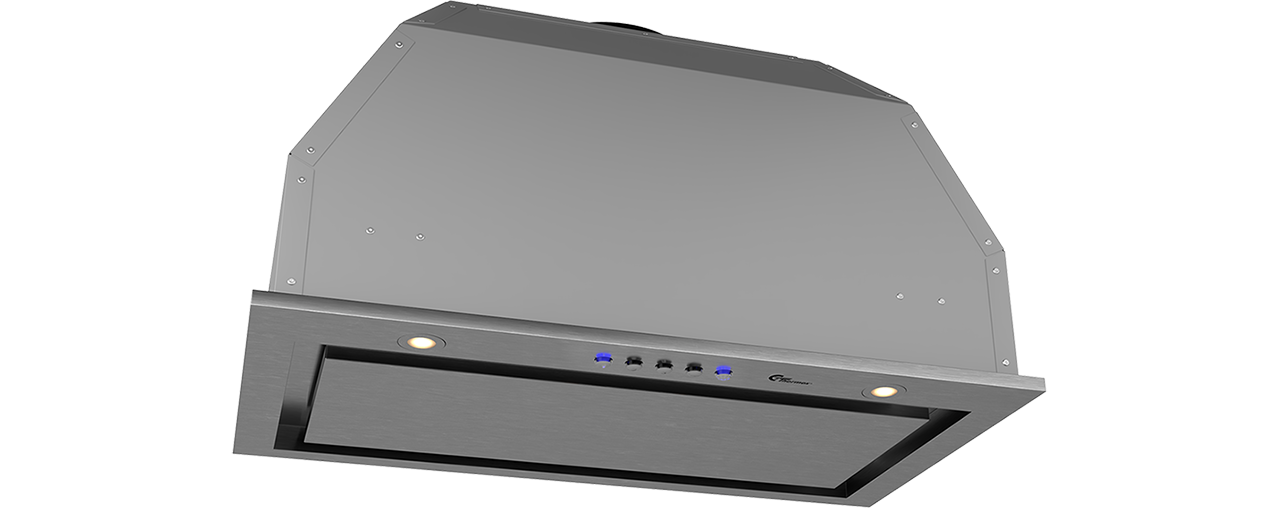

The Thermex TFM 460 in stainless steel with motor is a minimalist built-in hood that is hidden in the upper cabinet. The built-in switch panel makes it easy to use the hood. The motor is an energy-efficient Eco motor, which ensures a low noise level

Width
Color hood
Please select variant!

A stylish appearance is what is recognized by Thermex TFM 460 & TFM 480 , at least on the visible part of them. More hidden, but no less important, is the efficient motor and the low power consumption. The TFM 460 and TFM 480 are for those who want a reasonable alternative to the expensive hoods such as Thermex Metz Mini and Metz Micro, and who at the same time like the design with edge suction. The built-in motor has a capacity of up to 611 m3/h.

  • Rustic design
  • Efficient motor with low power consumption
  • Affordable

Specifications

Minimum airflow [m3/h]
332.3
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
611.2
Maximum-Soundpower [dB(A)]
57
Airflow with boost [m3/h]
740
Soundpower boost [dB(A)]
69
Energy consumption [W]
267
Control
Soft touch
Material
Stainless steel
See all specifications

Specifications

Minimum airflow [m3/h]
332.3
Minimum-Soundpower [dB(A)]
52
Maximum-airflow [m3/h]
611.2
Maximum-Soundpower [dB(A)]
57
Airflow with boost [m3/h]
740
Soundpower boost [dB(A)]
69
Energy consumption [W]
267
Control
Soft touch
Material
Stainless steel

Weight and measurements

Maximum width [mm]
518
Maximum depth [mm]
286
Maximum height [mm]
285
Outlet dimension (mm)
Ø150
Packaging width(mm)
600
Packaging depth [mm]
360
Packaging height(mm)
360
Net weight [kg]
9
Weight
10.5

Features

Control
Soft touch
Boost funktion
Yes
Decor light
No
Eftersug
Ja
Indicator for filter cleaning
Yes
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
Yes
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
147
LE value [lux/W]
61
LE-class
G
EEI-value
44.1
EEI-class
A+
Colour temperature [Kelvin]
3000
Lamp consumption [W]
1
Total consumption of light (WL) [W]
2
GFE-value
80.7
GFE-class
C
FDE-value
34.1
FDE-class
A
Energy consumption [W]
267
Power supply [V]
230
Energiforbrug standby (Ps) [W]
0.48
Moottorin maksimikulutus [W]
265

Other specifications

EAN
5703347527524
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.41.0400.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Mounting
Cabinet integrated
Motor type
Internal motor
Front panel color
Stainless steel
BodyColor
Stainless steel
Front panel material
Stainless steel
BodyColor (RAL)
0
Material
Stainless steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Productfiche

Teknisk info

Thermex Link

Exhaust fittings
