York III 600 mm White Lux

520.42.3411.2

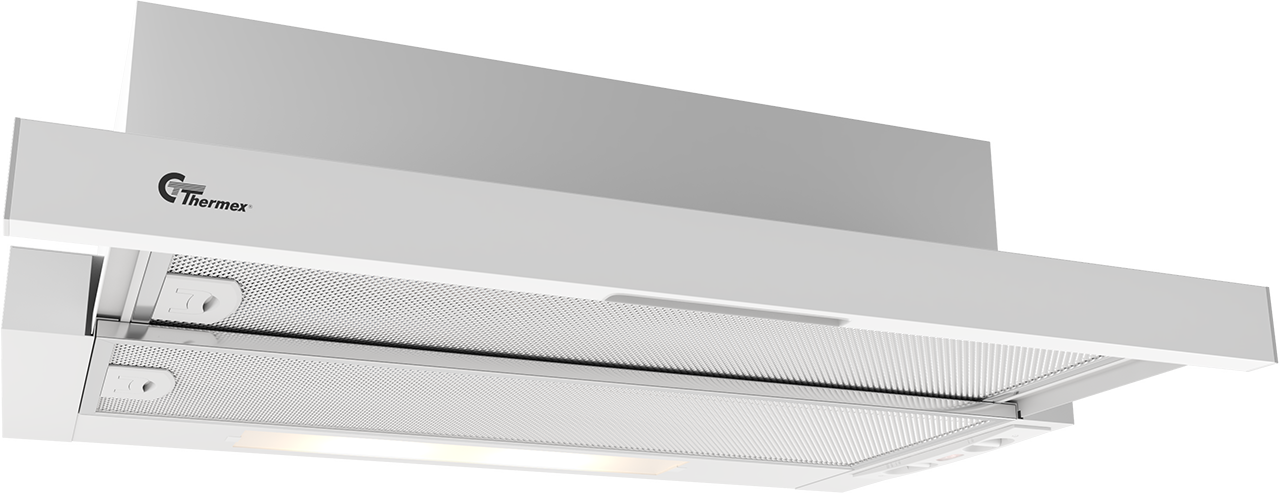

York III Lux from Thermex is a cabinet-mounted, white-painted pull-out range hood with a width of 60 cm. It combines effective extraction, easy installation, and stylish design, perfect for modern kitchens.
Width
Color hood
Motor type
Please select variant!

York III Lux from Thermex is a cabinet-mounted pull-out range hood designed to fit perfectly into any kitchen. With its simple, stylish appearance in white painted steel and a width of 60 cm, this hood blends elegantly into the kitchen environment.

Appearance and Functionality
It is equipped with two efficient aluminum filters and modern LED lights, providing optimal illumination over the stove. The hood is designed to be installed in an overhead cabinet, ensuring a discreet placement that doesn't take up unnecessary space.

Installation and Operation

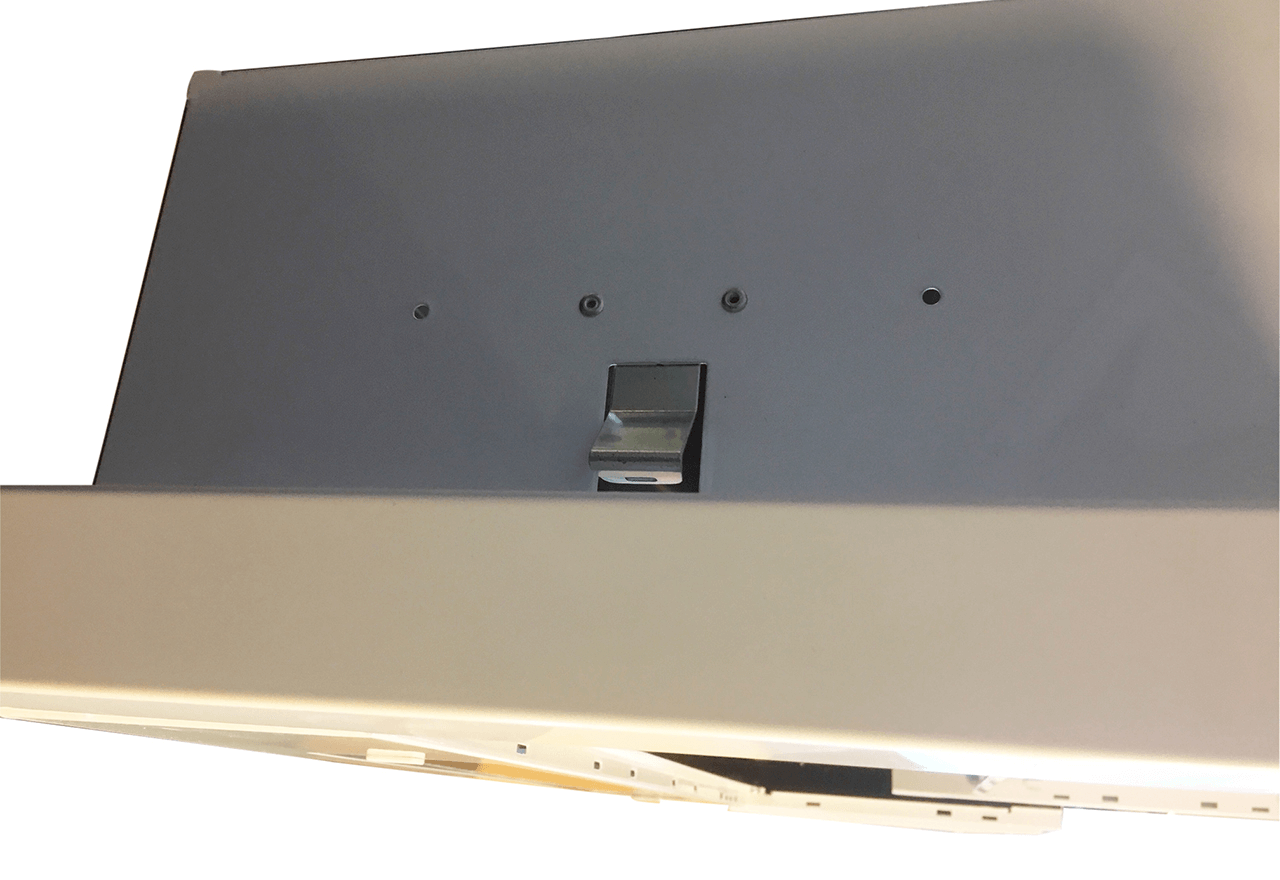

Installation is simple thanks to the built-in mounting system. The brackets are easily attached to the sides of the cabinet, allowing the hood to click into place and be fastened from below. The operation is easy with sliding buttons, which allow you to control the 3 speeds and the light. A practical microswitch is activated when the hood is pulled out and functions as an on/off switch.

Motor and Performance
The hood is equipped with a built-in motor with an energy rating of D and an air capacity of up to 369 m³/h. The noise level starts at 65 dB(A), ensuring effective extraction without excessive noise.

Cleaning
For easy maintenance, the aluminum filters can be washed in the dishwasher, while the rest of the hood can be wiped with a damp cloth.

York III Lux combines style, functionality, and ease of use in one compact solution, making it an ideal choice for modern kitchens.

  • 60 cm cabinet-mounted pull-out range hood
  • Easy installation
  • 3 speeds, controlled with sliding buttons
  • Air capacity up to 369 m³/h
  • Washable aluminum filters

Specifications

Minimum airflow [m3/h]
259
Minimum-Soundpower [dB(A)]
65
Maximum-airflow [m3/h]
369
Maximum-Soundpower [dB(A)]
73
Control
Slide buttons
Material
White painted steel
Voltage [V]
230

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Specifications

Minimum airflow [m3/h]
259
Minimum-Soundpower [dB(A)]
65
Maximum-airflow [m3/h]
369
Maximum-Soundpower [dB(A)]
73
Control
Slide buttons
Material
White painted steel
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
450
Maximum height [mm]
185
Outlet dimension (mm)
Ø120
Packaging width(mm)
690
Packaging depth [mm]
250
Packaging height(mm)
380
Net weight [kg]
5.5
Weight
6.5

Features

Control
Slide buttons
Boost funktion
No
Decor light
No
Eftersug
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
No
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
100
LE value [lux/W]
20.1
LE-class
B
EEI-value
96.5
EEI-class
D
Lamp consumption [W]
2.8
Total consumption of light (WL) [W]
2.8
GFE-value
71.7
GFE-class
D
FDE-value
8.8
FDE-class
E
Power supply [V]
230
Motor Power [W]
160
Voltage [V]
230

Other specifications

EAN
5703347528934
Type of grease filter
Aluminum filter
Number of filters
2
Carbon filter as accessory
Yes
Carbon filter code
535.42.9160.9
Number of carbonfilters
2
Number of speeds ex (boost)
3
Number of lamps
2
Suction Bottom
Yes
Suction Front
No
Suction Edge
No
Mounting
Extract
Motor type
Internal motor
Front panel color
White
BodyColor
White
Front panel material
White lacquered steel
Material
White painted steel

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
