Airgrip 600 mm Black With motor

520.19.3062.2

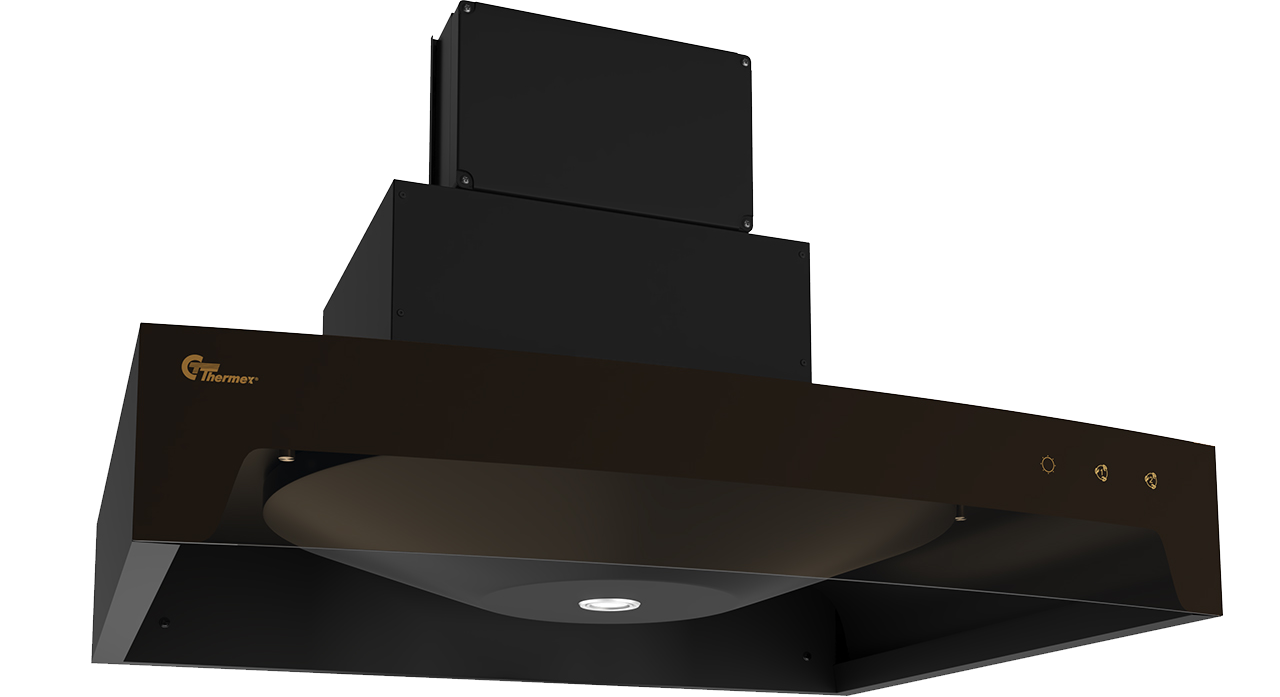

Thermex airgrip in black with motor is unquestionably the market's most efficient hood with motor The hood's aerodynamic design provides maximum absorption with a minimum of air flow and electricity consumption.
Color hood
Please select variant!

Thermex Airgrip is both innovative and super efficient. In an apartment where there is a common exhaust, it is one of the most efficient kitchen hoods on the market. The unique design of the collection part means that steam and fumes are collected much better, and makes it easier for the communal system to transport the air out of the apartment. The built-in humidity meter means that Airgrip can be controlled as needed. In an apartment with a common exhaust, the kitchen hood also contributes to ventilation when you are not cooking. The built-in Eco motor can produce up to 189 m3/h

  • A futuristic design
  • Can be mounted under standard cabinets so that the bottom line of the cabinets aligns
  • The market's most energy-efficient hood
  • Extreme pick-up at low air volumes

Specifications

Minimum airflow [m3/h]
99.7
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
189.9
Maximum-Soundpower [dB(A)]
56
Control
Glass touch
Material
Black painted steel and Black glass
Odour extraction >75% installation height 600 mm [m3/t]
100
Voltage [V]
230

Eco motor

With an Eco motor, you are sure that the product has a low energy consumption, which is good for both the environment and your electricity bill. It is the latest new technology in efficient motors, and also provides a low noise level.

UN climate goals

This product supports the UN's climate goals by saving energy. It can, for example, be to reuse the heat in a heat recovery system, or to use recirculation to avoid sending heated air out of the house.

Metal filter

The metal filter is the traditional filter that everyone knows. This ensures that the grease from the hood does not end up inside the hood or in the duct system. The metal filter can be washed in the dishwasher.

Glass touch

The Glastouch control is an elegant solution to the normal control, which goes together with the hood. As the operation is behind a glass panel, cleaning the hood is even easier with the glass touch.

Timer function

With the timer function, the product continues to extract for a short period after you would normally switch it off. In this way, you are sure that you have ventilated thoroughly. It helps to ensure a good indoor climate.

Projekteringsfane

Odour extraction test standard
EN 61591

Specifications

Minimum airflow [m3/h]
99.7
Minimum-Soundpower [dB(A)]
46
Maximum-airflow [m3/h]
189.9
Maximum-Soundpower [dB(A)]
56
Control
Glass touch
Material
Black painted steel and Black glass
Odour extraction >75% installation height 600 mm [m3/t]
100
Voltage [V]
230

Weight and measurements

Maximum width [mm]
600
Maximum depth [mm]
480
Maximum height [mm]
265
Outlet dimension (mm)
Ø150
Packaging width(mm)
720
Packaging depth [mm]
630
Packaging height(mm)
550
Net weight [kg]
16
Weight
17

Features

Control
Glass touch
Boost funktion
No
Decor light
No
Timer funktion
Nej
Indicator for filter cleaning
No
Moveable outlet
No
Built-in trigger function
Yes
Light dimmer
No
Periodic room ventilation
No
Wi-Fi
No
Toplink compatible
No
Smarthome
No

Technical specifications

Illumination (Emiddle) [lux]
315
LE value [lux/W]
1.5
LE-class
A
EEI-value
34.1
EEI-class
A++
Lamp consumption [W]
3
Total consumption of light (WL) [W]
3
GFE-value
40.9
GFE-class
G
FDE-value
10
FDE-class
E
Type of plug
Schuko
Energiforbrug standby (Ps) [W]
0.37
Odour extraction >75% installation height 600 mm [m3/t]
100
Odour extraction test standard
EN 61591
Motor Power [W]
12
Voltage [V]
230

Other specifications

EAN
5703347522444
Type of grease filter
Aluminum filter
Number of filters
1
Carbon filter as accessory
Yes
Carbon filter code
535.19.3800.9
Number of carbonfilters
1
Number of speeds ex (boost)
2
Number of lamps
1
Suction Bottom
No
Suction Front
No
Suction Edge
Yes
Mounting
Cabinet substantiated
Motor type
Internal motor
Front panel color
Black
BodyColor
Stainless steel
Front panel material
Black glass
Material
Black painted steel and Black glass

Downloads

Here you will find all documents relevant to this product

Product info

Dimensional drawing

Installation manual

Teknisk info

Exhaust fittings
